Hunter X-CORE User Manual

1. Battery Compartment (9-volt alkaline battery) – The alkaline battery (not included) keeps time during power outages. The user may also program the
controller without AC power.
2. Battery Compartment (CR2032 3-volt lithium) – The lithium battery provides backup timekeeping during power outages and when the 9-volt is not
installed (location is on the back of the facepack).
3. Release for Facepack – Pull on the release tab and the facepack can be removed from the facepack frame.
4. Ribbon Cable – Cable that transmits information between the facepack and the inner controller assembly.
5. Slide Lock Bar for Output Modules – Sliding the Slide Lock Bar turns the controller’s power on or off. Permits the addition or removal of output
modules and locks the modules into place in the Power On position.
6. Power Module – This module provides power to the controller. This module must be in place for the controller to operate.
7. Station Module(s) – The addition of 6 station modules allows the ability to expand your I-Core from 6 to 30 stations (plastic cabinet) and 6 to 42
stations (metal cabinet and plastic pedestal). Each station module corresponds to six station screw terminals.
8. Power and Accessory Terminals – Connections for Power, Sensors, Pump/Master Valve, and other accessory connections.
9. Station Terminals – Connections for station wires; only terminals with corresponding Station Output Modules will be active and recognized by the
controller.
10. Communication Port – Connection for future use with Central Control Communications.
11. Earth Ground Lug – For connection of earth ground copper wire (for surge protection only). Do not connect valve commons or the incoming service
ground wire.
12. Transformer – A transformer is installed in the controller to supply 24VAC power to the controller. Transformer allows for either 120VAC or 230VAC
connections.
13. AC Wiring Compartment (Junction Box) – For connection of 120/230VAC power.
14. Conduit Opening – 1 to 1 ½" (25 mm to 38 mm) for eld wiring into controller.
15. SmartPort
®
– Integrated connector for ICR/SRR/ROAM receiver (on side of cabinet).
S1 S1 S2 S2 CC
GND AC1AC2 REM C
P/MV
1
3
5
6
7
8
4
9
10
11
12
13
14
15
2
Explanation of Symbols
Hazardous Voltage Present
Consult Documentation
Double Insulated
AC

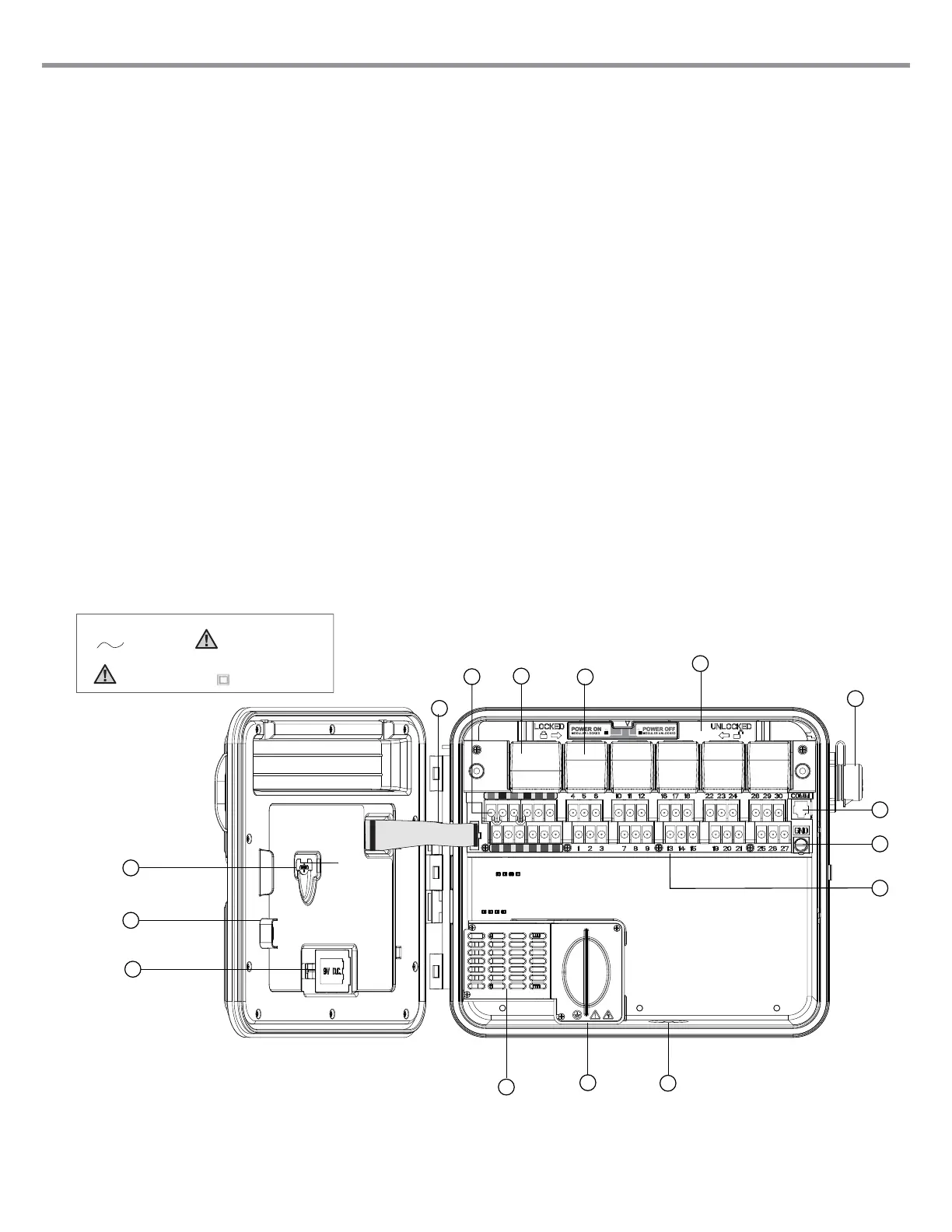

I-CORE WIRING COMPARTMENT AND INTERIOR
3
