ASSEMBLY
English – 13

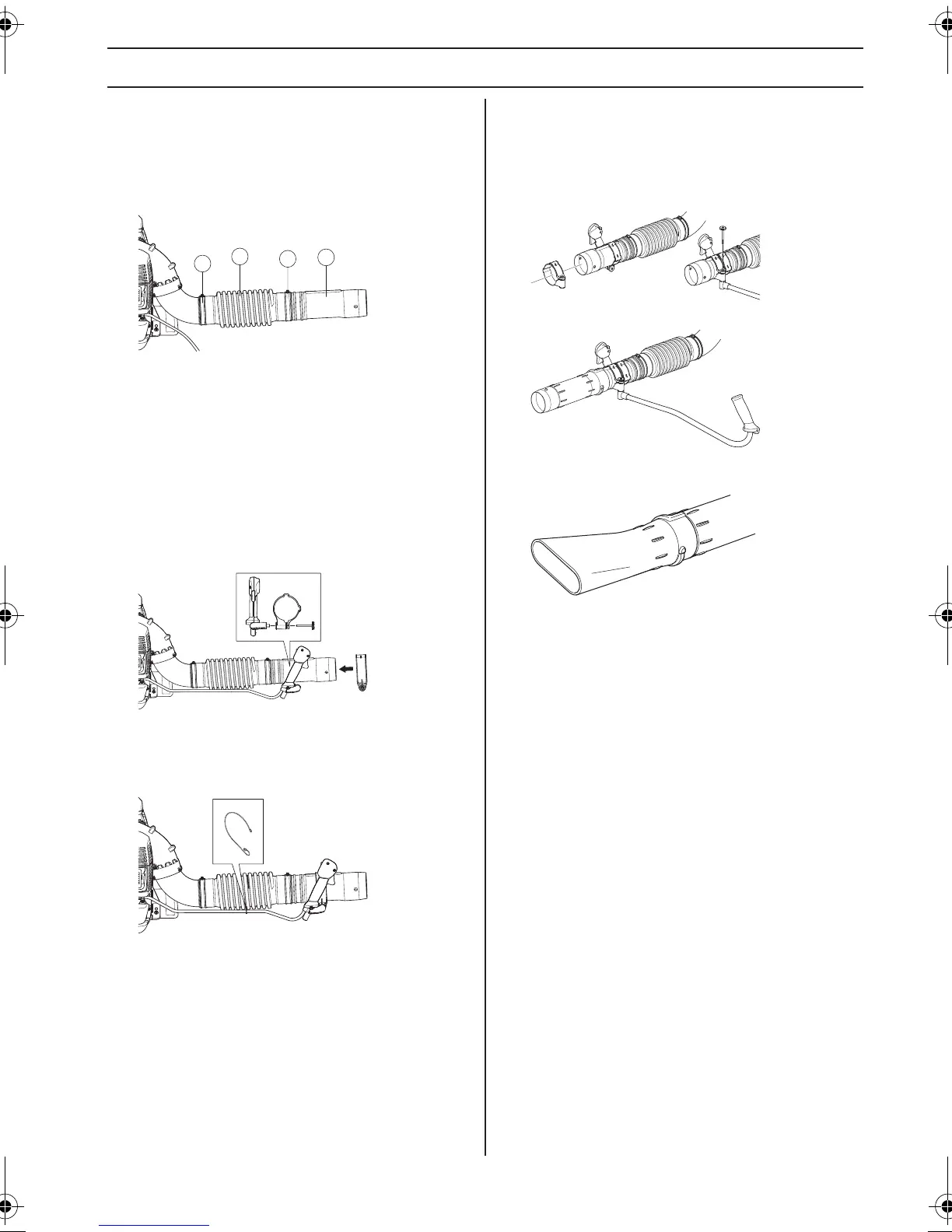

Assembling the blow pipe and
control handle
• Connect the blower and control pipe with the flexible
hose. Clamp both ends of the flexible hose in place.
Use the accompanying hardware.
1 Flexible hose
2 Control pipe
3 Clamp
4 Clamp
NOTE!
Lubricate the pipes a little to facilitate assembly.
• Fasten the handle holder to the control pipe and
tighten the knob on the holder. Please make sure to
align the handle holder with the convex of the control
pipe.
• Adjust the position and angle to achieve a comfortable
working position, and tighten.
• Use the clamp to fasten the cabling to the flexible
hose.
• Connect the straight pipe and pipe end. Push the
pipes together and turn them so they lock.
Accessories
Handlebar
Disassemble the intermediate pipe. Disassemble the
knob from the holder and puch the holder on to the holder
pipe. Assemble the knob and tighten.
Assemble the intermediate pipe.
• If higher air speed is required, the round blow pipe is
replaced by the flat nozzle.
3
1
4
2
H1157401-38,570BTS, 580BTS_1.fm Page 13 Tuesday, May 17, 2016 8:52 AM
