15 ELECTRICAL SYSTEM
117

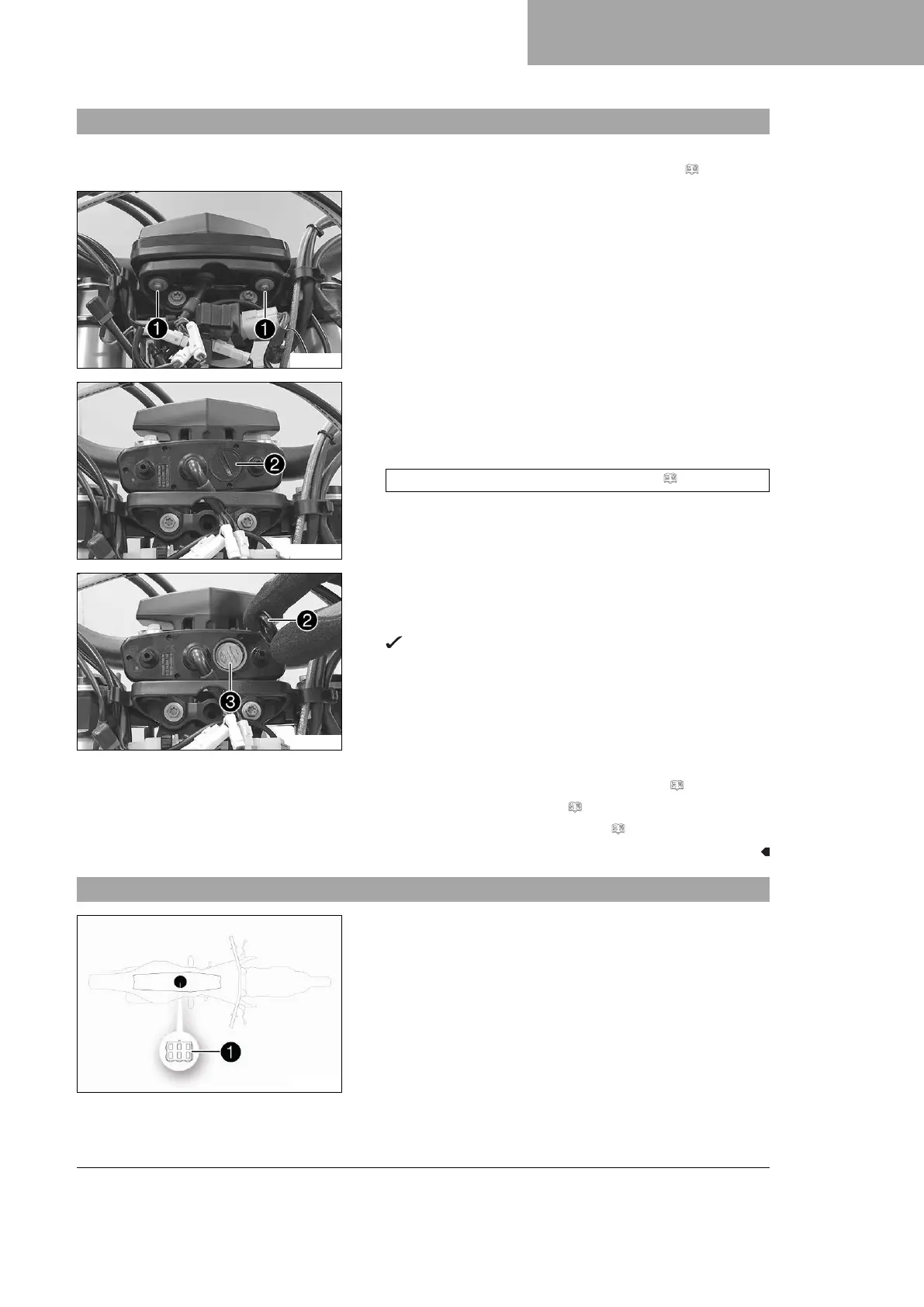

15.12 Changing the combination instrument
Preparatory work
– Remove the headlight mask with the headlight. ( p. 113)
F00370-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.
F00371-10
–
Using a coin, turn protection cap
2
all the way counter-
clockwise and remove it.
–
Remove combination instrument
3
.
– Insert the new battery with the label facing outward.
Combination instrument battery (CR 2032) ( p. 147)
– Check the O-ring of the protection cap for correct seating.
F00372-10
–
Position protection cap
2
and turn all the way clockwise
using a coin.
– Press any button on the combination instrument.
The combination instrument is activated.
– Position the combination instrument in the holder.
– Mount and tighten the screws with washers.
Finishing work
– Install the headlight mask with the headlight. ( p. 113)
– Check the headlight setting. ( p. 116)
– Adjust the combination instrument. ( p. 26)
15.13 Diagnostics connector
H00933-12
Diagnostics connector
1
is located under the seat.
