12 SERVICE WORK ON THE CHASSIS
68

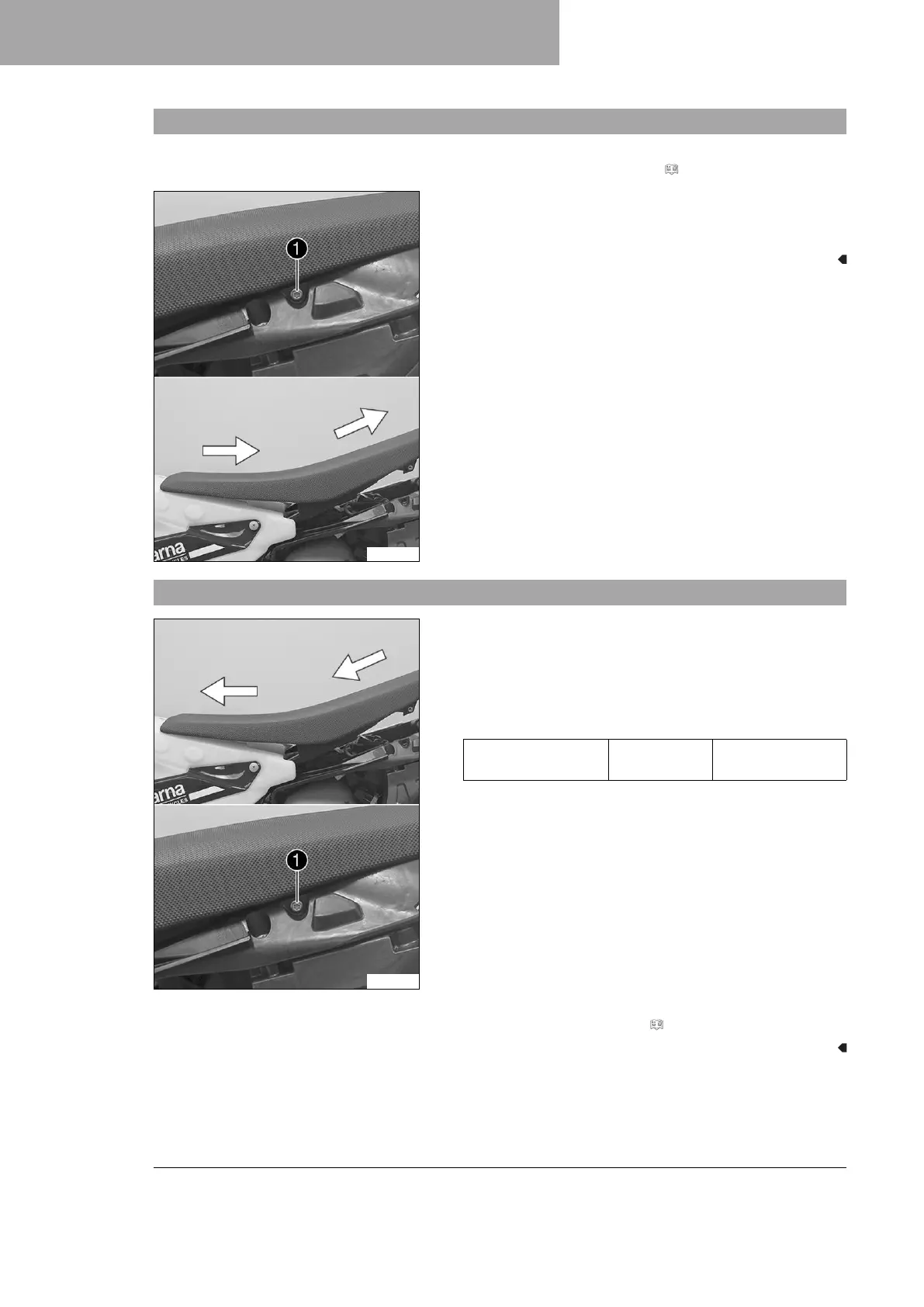

12.18 Removing the seat
Preparatory work
– Remove the air filter box cover. ( p. 69)
F00296-10
Main work
–
Remove screw
1
.
– Pull seat back and lift it off.
12.19 Mounting the seat
F00297-10
Main work
– Mount the front of the seat on the collar bushing of the fuel
tank, lower the seat at the rear, and push the seat forward.
– Make sure that the seat is locked in correctly.
–
Mount and tighten screw
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the air filter box cover. ( p. 69)
