6 CONTROLS
19

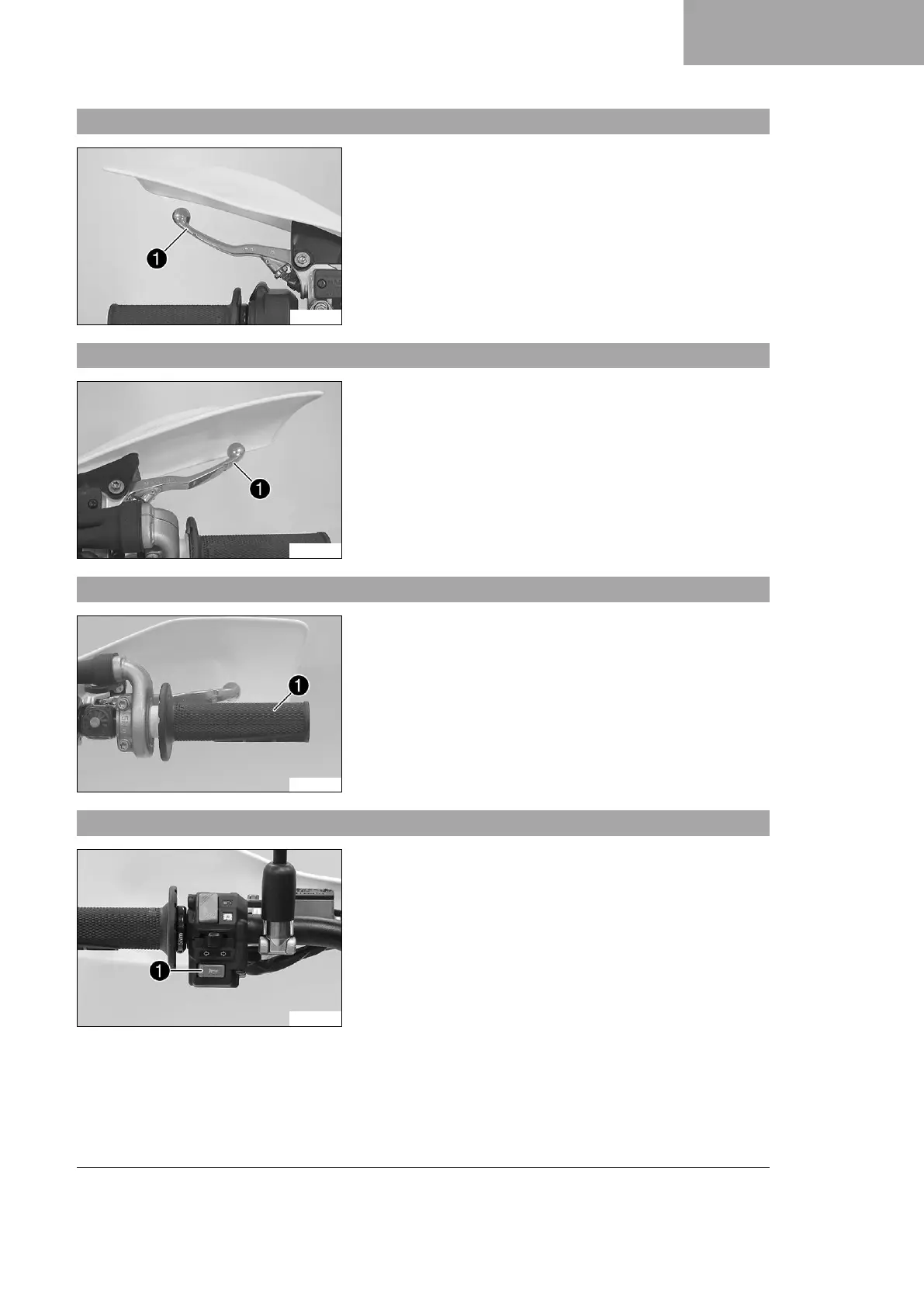

6.1 Clutch lever
F00482-10
Clutch lever
1
is fitted on the handlebar on the left.
The clutch is activated hydraulically and adjusts itself automati-
cally.
6.2 Hand brake lever
S02067-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
S02066-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Horn button
K00599-12
The horn button
1
is fitted on the left side of the handlebar.
Possible states
• Horn button in neutral position
• Horn button pressed – The horn is operated in this position.
