Hypertherm Echion User Manual

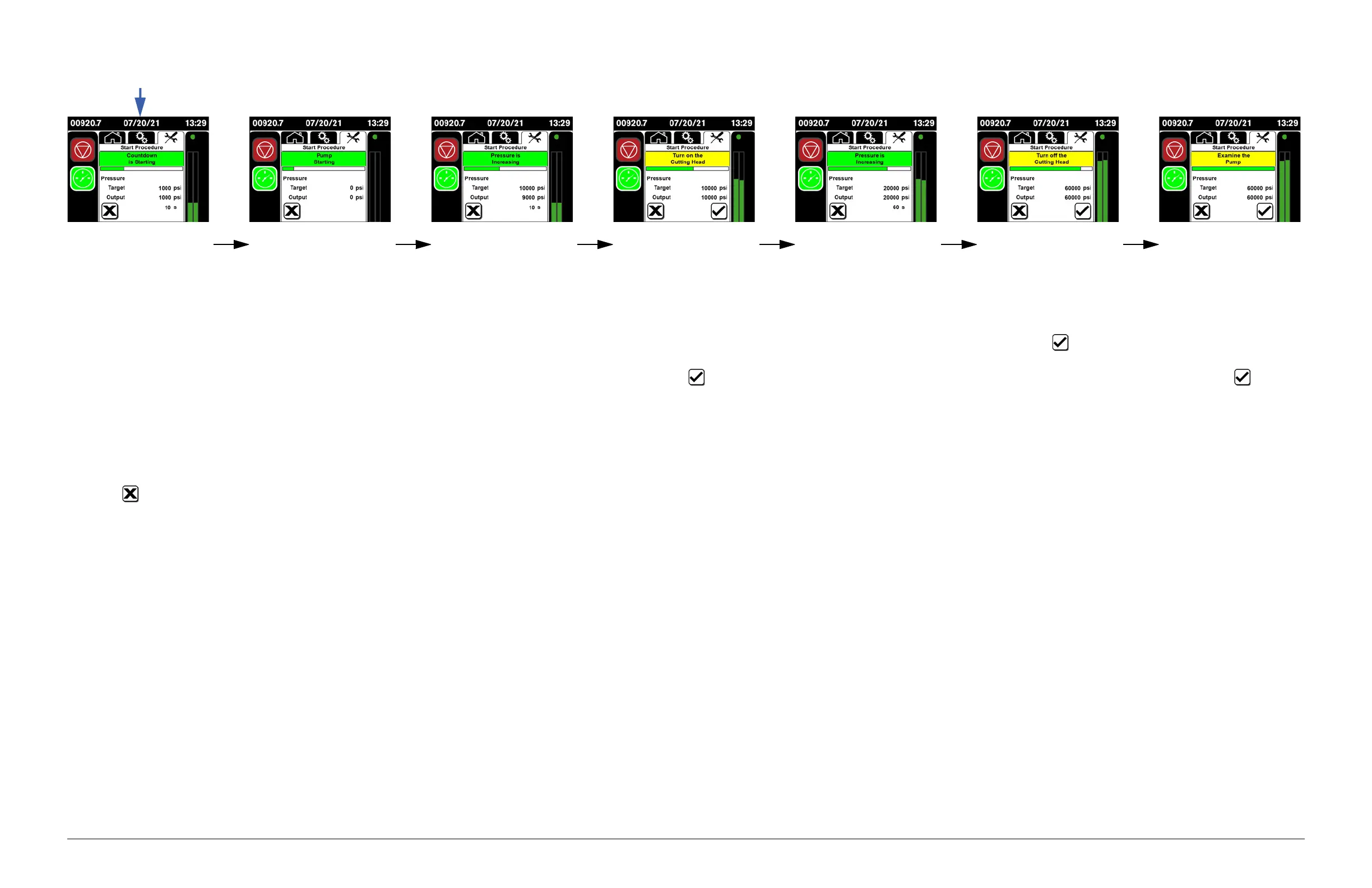

Touchscreen maps
9
Echion Operator Manual 810770 187
Stage 1
Countdown is Starting
Stage 2
Pump Starting
Stage 3
Pressure is Increasing
Stage 4
Turn On the Cutting Head
Stage 5
Pressure is Increasing
Stage 6
Turn Off the Cutting Head
Stage 7
Examine the Pump
The supply water pressure
increases.
Air is removed from the
system.
The system fills with water. The system waits for you to
turn on the cutting head.
The pressure increases. The system waits for you to
turn off the cutting head.
The system waits for you to
examine the pump.
• The primary motor starts.
• If the system has a boost
pump, it turns on.
• The hydraulic pump
operates at minimum
pressure.
• The supply water
pressure increases until
the it gets to the target
water pressure.
The minimum setpoint
is2.76bar (40 psi).
• The intensifier begins
stroking.
• The bleed-down valve is
open.
• The bleed-down valve
closes.
• Water pressure in the
system increases
to690bar(10,000psi).
1. Move the cutting head to
a safe location on the
table.
2. Turn
ON the cutting head.
3. Touch the symbol to
continue.
The water pressure increases
in690bar(10,000psi)
increments until the pump is
at4,140bar(60,000psi).
1. Turn
OFF the cutting
head.
2. Touch the symbol to
continue.
1. Examine the pump for
loose fittings or leaks.
2. Examine the attenuator
connections for leaks.
3. Touch the symbol to
continue.
The main motor turns off.
The primary operation
screen opens.
Touch the symbol to stop the procedure and turn off the pump.
The start procedure is
complete.
