PARTS
powermax 45 Operator Manual 6-5

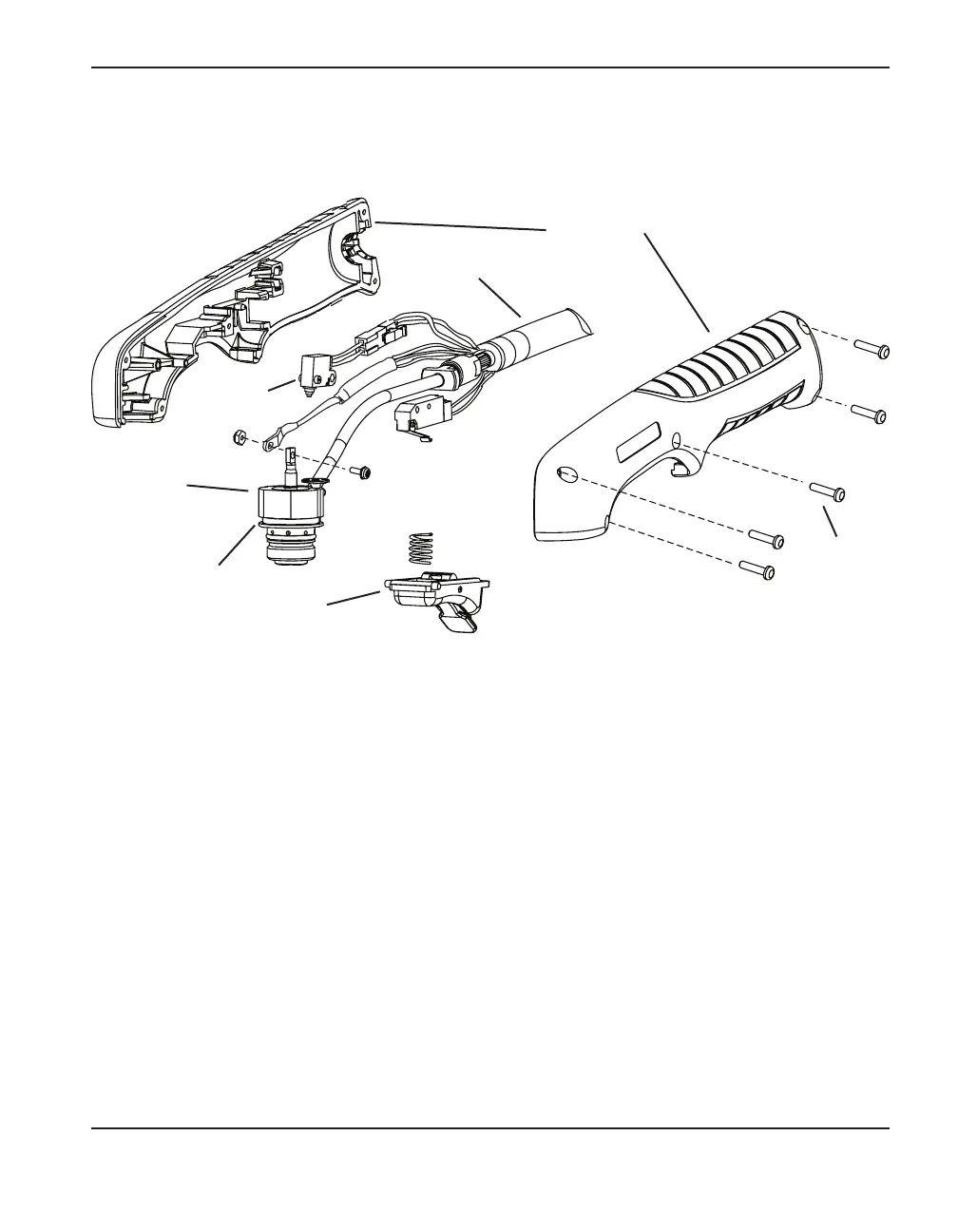

T45v hand torch parts
Torch handle
Torch lead
Handle
screws
Safety trigger
and spring
O-ring
Torch head
Cap-sensor
switch
The entire hand torch and lead assembly can be replaced, or individual component parts can be
replaced. Part numbers starting with 088 indicate complete torch and lead assemblies.
Part number Description
088008* T45v hand torch assembly with 20 ft (6.1 m) lead
088009* T45v hand torch assembly with 50 ft (15.24 m) lead
228313 Kit: Handle
075714 Screws, #4 x 1/2 SLTD Torx PAN, S/B
002294 Safety trigger and spring replacement
228346 Kit: Torch head replacement
058503 O-ring: Viton 0.626 x 0.070
228109 Kit: Cap-sensor switch replacement
228315 Kit: Torch lead replacement, 20 ft (6.1 m)
228316 Kit: Torch lead replacement, 50 ft (15.24 m)
* The torch assembly also includes one set of the consumables listed on the next page.
