LEDs
Blade server connectors - BladeCenter HX5
Use this information to locate blade server system board components and
connectors for optional devices.

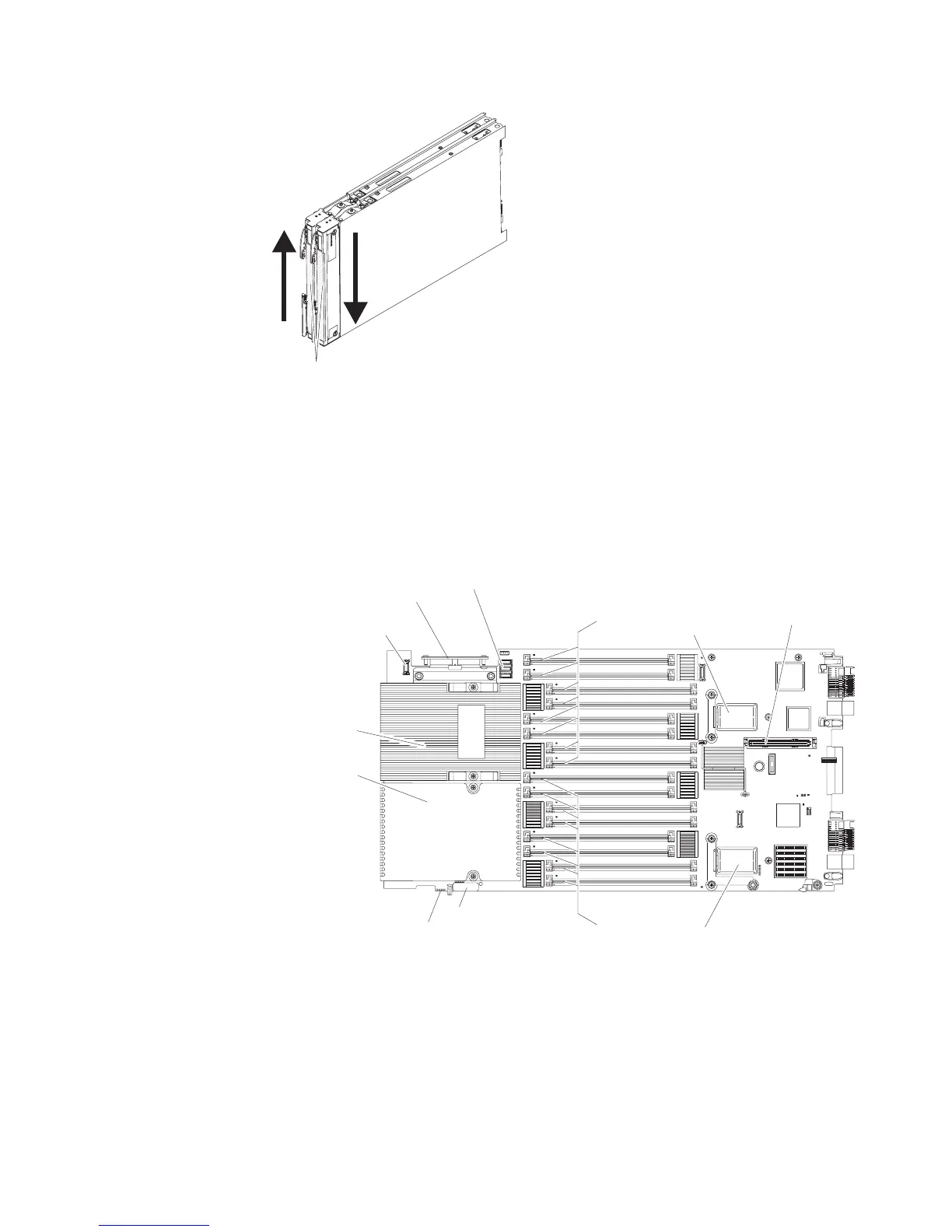

The following illustration shows the system board components, including
connectors for user-installable optional devices, in the blade server.
TIGHTEN
SCREWS
ALTERNATELY
Control panel
connector
Battery
Hypervisor
inteposer
connector
Microprocessor 2
I/O expansion
connector
(SSD)
Blade expansion
connector
I/O expansion
connector (CIOv)
Microprocessor 1
Scaling card
connector
Power
sharing
connector
DIMMs
1 - 8
DIMMs
9 - 16
Note: The optional SSD expansion card is installed in the I/O expansion connector
(SSD).
Blade server connectors - IBM MAX5
Use this information to locate the IBM MAX5 expansion blade connectors.
The following illustration shows the system board components, including
connectors for user-installable optional devices, in the IBM MAX5 expansion blade.
Chapter 2. Power, controls, and indicators 21
