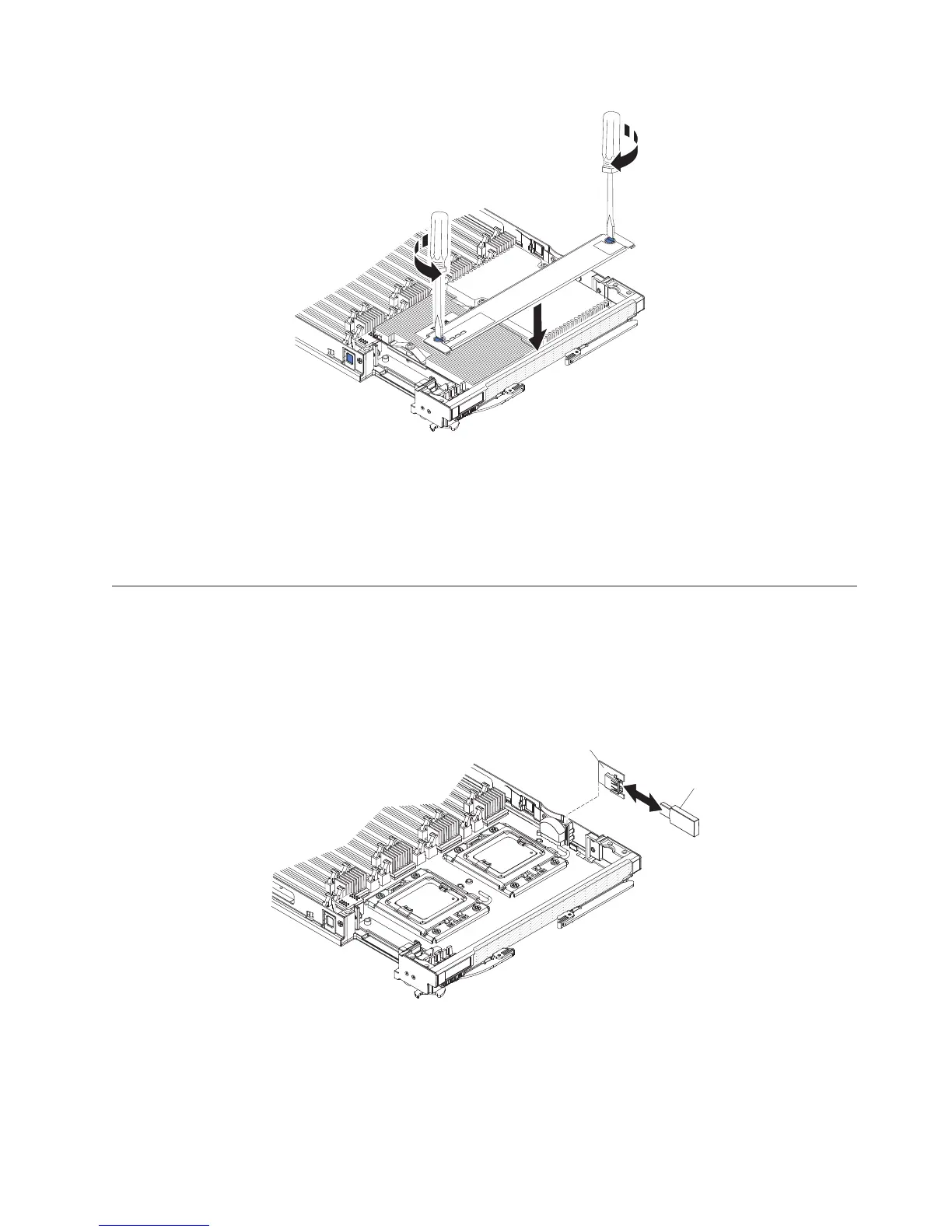

a. Make sure that the screws on the access panel are in the open position (the
screw insert is parallel to the side of the access panel).
b. Slide the back of the cover under the blade server bezel, aligning the screws
with the slots on the blade server.
c. Using a screwdriver or a coin, turn each of the screws away from the
middle of the blade server until it is in the locked position.
Removing a hypervisor key
Use this information to remove a hypervisor key from the blade server.
The following illustration shows the removal of a hypervisor key from the blade
server.
Interposer
card
Key
To remove the hypervisor key, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Remove the access panel if you have the standard heat sinks installed.
Chapter 3. Installing optional devices 45
