a. Make sure that both retaining clips on the DIMM connector into which you
are installing the DIMM, are in the open position.
b. Turn the DIMM so that the DIMM keys align correctly with the DIMM
connector on the system board.
Attention: To avoid breaking the retaining clips or damaging the DIMM
connectors, handle the clips gently.
c. Press the DIMM into the DIMM connector. The retaining clips will lock the
DIMM into the connector.
d. Make sure that the small tabs on the retaining clips are in the notches on
the DIMM. If there is a gap between the DIMM and the retaining clips, the
DIMM has not been correctly installed. Press the DIMM firmly into the
connector, and then press the retaining clips toward the DIMM until the
tabs are fully seated. When the DIMM is correctly installed, the retaining
clips are parallel to the sides of the DIMM.
Removing a DIMM - BladeCenter HX5
Use this information to remove a dual inline memory module (DIMM) from the
blade server.

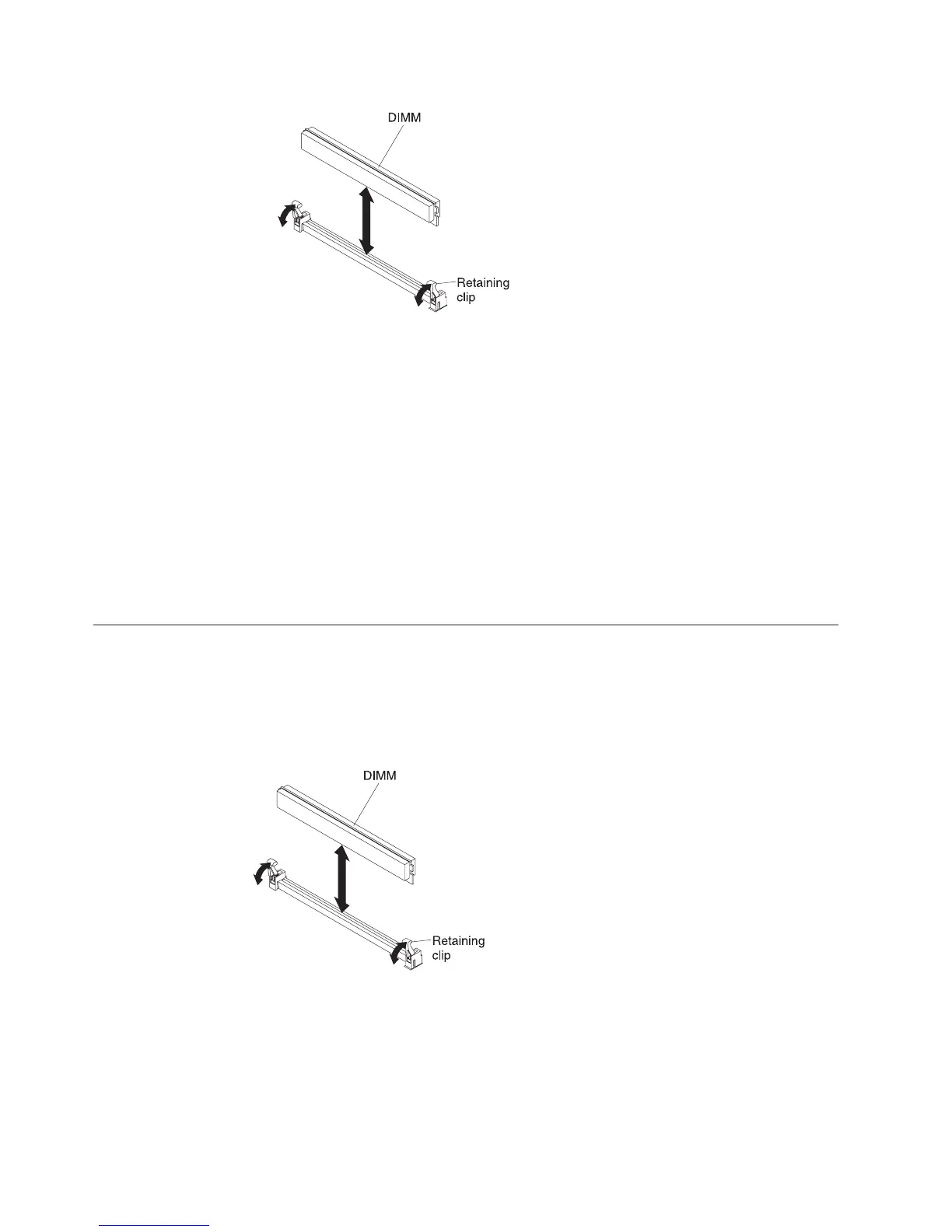

The following illustration shows how to remove a DIMM from the blade server.
To remove a DIMM, complete the following steps:
1. Before you begin, read “Safety” on page v and “Installation guidelines” on
page 23.
2. Locate the DIMM connectors (see “Blade server connectors - BladeCenter HX5”
on page 21). Determine which DIMM you want to remove from the blade
server.
42 IBM BladeCenter HX5 Type 7873, 7872, 1910, and 1909: Installation and User's Guide
