34 IBM BladeCenter PS700, PS701, and PS702 Technical Overview and Introduction
http://www.ibm.com/servers/eserver/serverproven/compat/us/eserver.html
򐂰 BladeCenter Interoperability Guide
http://www.ibm.com/support/docview.wss?uid=psg1MIGR-5073016
With PS700, PS701, and PS702 blades, the following expansion cards require a MSIM in a
BladeCenter H chassis:
򐂰 QLogic Ethernet and 4 Gb FibreChannel Expansion Card (CFFh)
򐂰 QLogic 8 Gb Fibre Channel Expansion Card (CFFh)

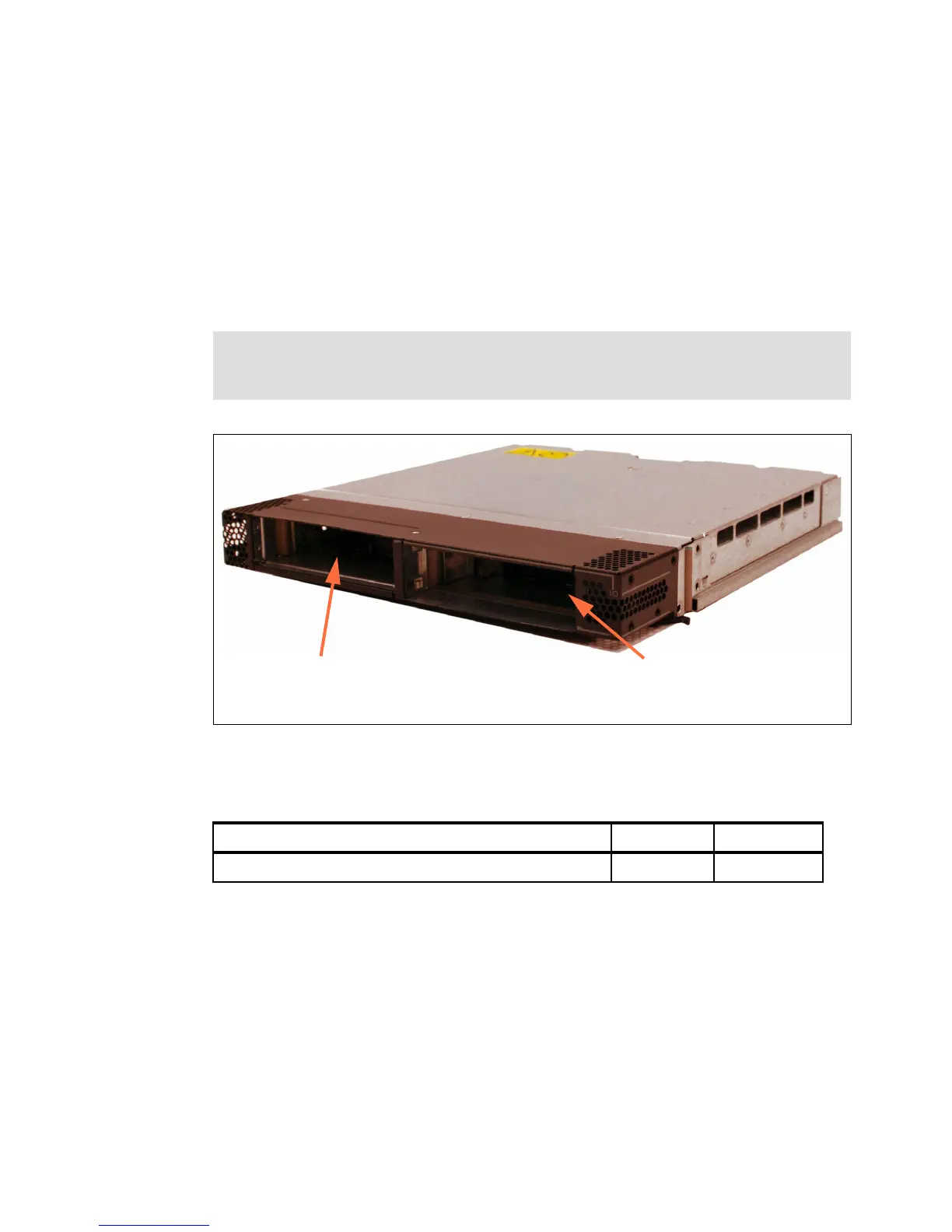

The MSIM is shown in Figure 1-13.
Figure 1-13 Multi-switch Interconnect Module
Table 1-15 shows MSIM ordering information.
Table 1-15 MSIM ordering information
1.6.7 Multi-switch Interconnect Module for BladeCenter HT
The Multi-switch Interconnect Module for BladeCenter HT (MSIM-HT) is a switch module
container that fits in the high-speed switch bays (bays 7 and 8 or bays 9 and 10) of the
BladeCenter HT chassis. Up to two MSIM s can be installed in the BladeCenter HT. The
MSIM-HT accepts two supported standard switch modules as shown in Figure 1-14 on
page 35.
The MSIM-HT has a reduced number of supported standard I/O modules compared to the
MSIM. I/O module to MSIM-HT compatibility matrixes can be viewed at the following Web
pages.
Note: The MSIM comes standard without any I/O modules installed. They need to be
ordered separately. In addition, the use of MSIM modules requires that all four power
modules be installed in the BladeCenter H chassis.
Description Part Number Feature Code
MSIM for IBM BladeCenter 39Y9314 1465
Right bay for Fibre
Channel Switch
Modules
Left bay for Ethernet
Switch Modules
