IBM P 615 series User Manual

System Backplane Locations (Model 6C3 and Model 6E3)

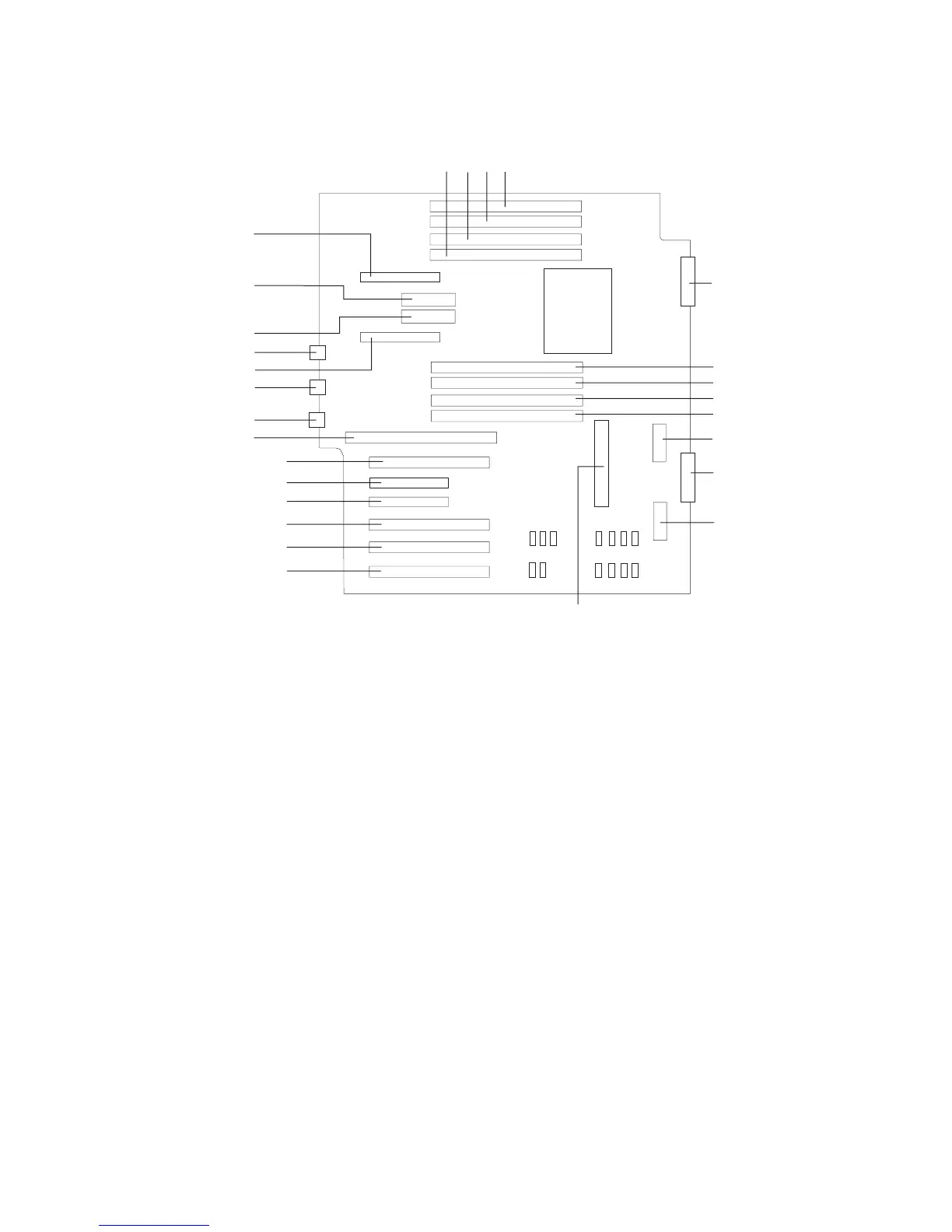

The following illustration of the system backplane identifies the primary connectors used in your system.
J0A
J0A
V1
P1
P4
V3 V2
J3B
J3B
J1A
J1A
J2B
J2B
J1B
J2A
J2A
J0B
J0B J1B
J3A
J3A
1
2
3
4
5
6
7
8
910
1112
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1 Media Backplane 15 2.5V Voltage Regulator Module (V2)
2 Memory DIMM 5, J0A 16 (Hardware Management Console)
3 Memory DIMM 6, J0B 17 Primary Power Supply V2
4 Memory DIMM 7, J1A 18 Ethernet #1 10/100
5 Memory DIMM 8, J1B 19 Ethernet #2 1GB
6 DASD Backplane (Right) 20 Service Processor Assembly
7 (Reserved) 21 PCI-X Slot 1
8 DASD Backplane (Left) 22 PCI-X Slot 2
9 Memory DIMM 1, J3B 23 PCI-X Slot 3
10 Memory DIMM 2, J3A 24 PCI-X Slot 4
11 Memory DIMM 3, J2B 25 PCI-X Slot 5
12 Memory DIMM 4, J2A 26 PCI-X Slot 6
13 Redundant Power Supply V1 27 1.2V Voltage Regulator Module (V3)
14 1.8V Voltage Regulator Module (V1)
Chapter 1. Reference Information 15
