Operator Panel Component Locations

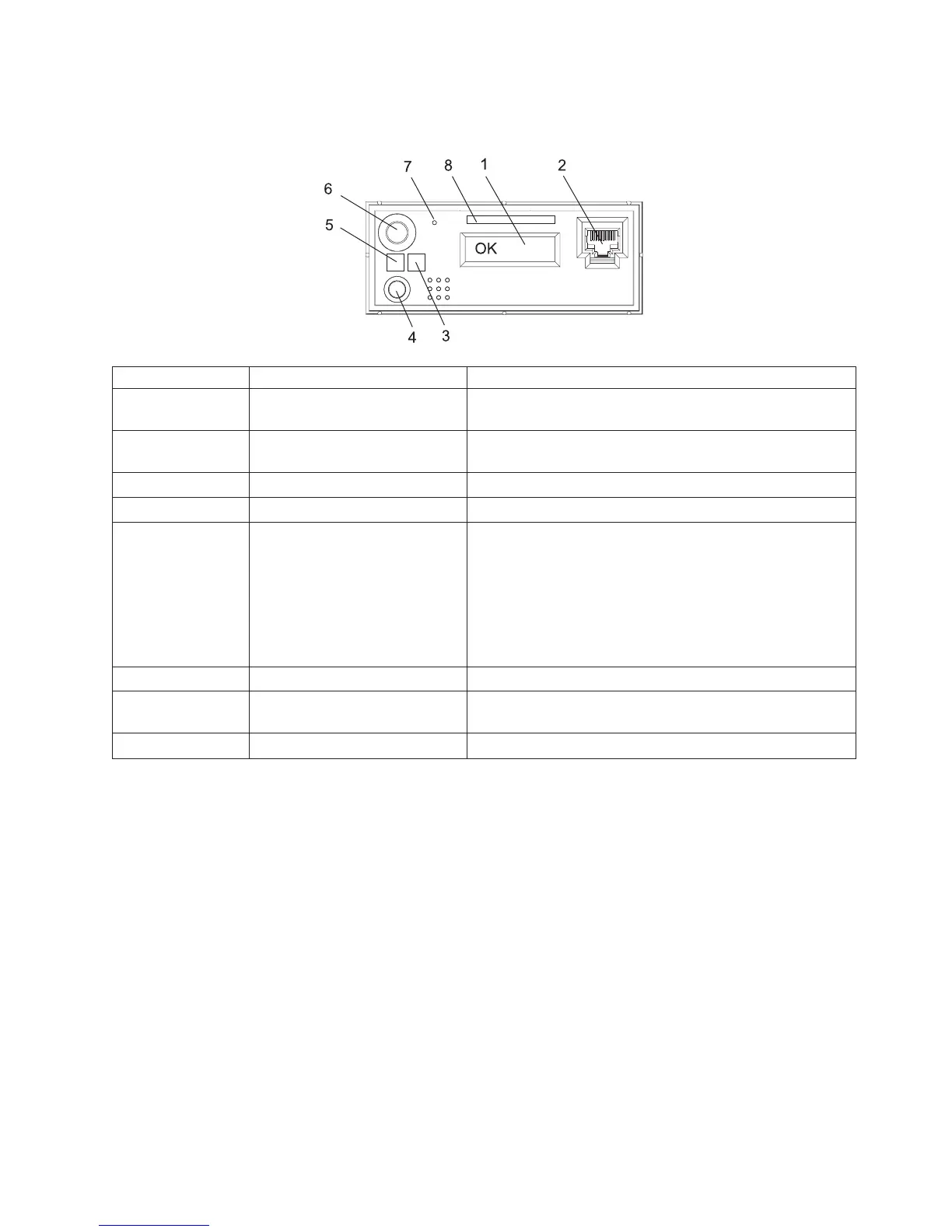

The following illustration shows the component location on the operator panel.
Number Component Name Component Description
1 Operator Panel Display Displays current status of system startup, or diagnostic
information in the event of a hardware problem.
2 Front Serial Connector (FS1)
(Model 6C3 Only)
Serial port uses RJ-45 connector. Use to plug in external
devices at the front of the system unit.
3 Attention LED Normal State - LED is off
4 System Reset Button Resets the system
5 Power LED Blinking - When connected to the power source (System is
in standby mode).
Solid
- When power-on button has been pressed.
Note: There is approximately a 30-second transition period
from the time the power-on button is pressed to when the
power LED goes from blinking to on solid. During the
transition period, you may observe the blinking intervals
speed up.
6 Power-On Button Turns the system power on and off.
7 Service Processor Reset Switch
(Pinhole)
Service Personnel Use
8 Serial Number Label Displays the system serial number
Chapter 1. Reference Information 19
