CONNECTION AND INSTALLATION
2001 NEW
6

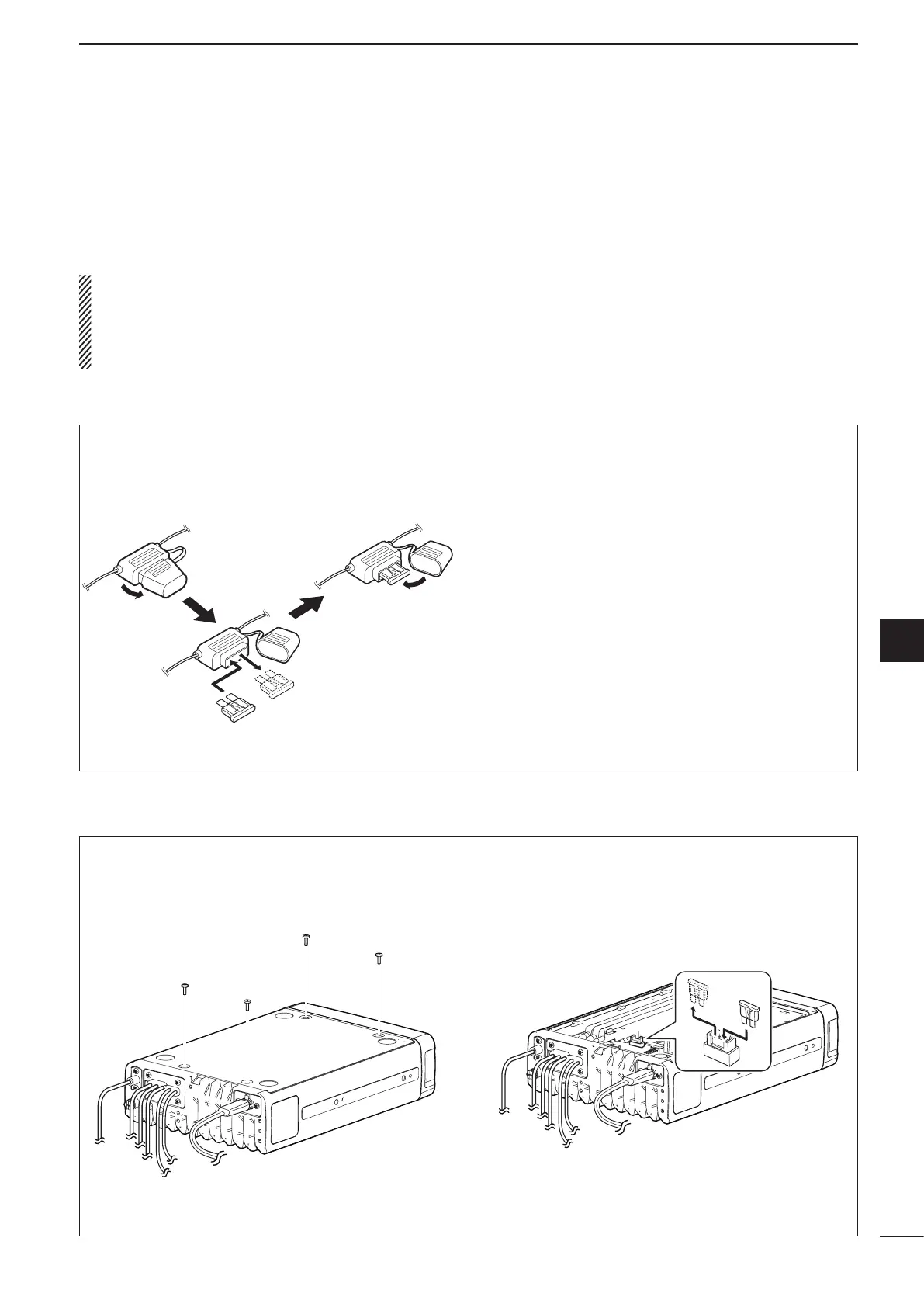

■ Fuse replacement
If a fuse blows, or the transceiver stops functioning,
find the source of the problem, and repair it. If the fuse
is blown, replace the damaged fuse with a new, ad-
equately rated fuse.
RWARNING! Turn OFF the power and discon-
nect the DC power cable from the transceiver be-
fore performing any work on the transceiver. Other-
wise, there is a danger of electric shock, equipment
damage and/or fire or injury.
The IC-F8101 has two fuse types installed for trans-
ceiver protection.
• DC power cable ........................................ ATC 30 A
• Circuitry fuse ................................ MINI BLADE 5 A
D Internal fuse replacement
q Turn the transceiver upside down.
w Unscrew 4 screws from the bottom cover, then re-
move the cover.
e Replace the circuitry fuse as shown in the diagram
below.
• Use the supplied MINI BLADE 5 A fuse.
r Reattach the bottom cover to its original position.
D DC power cable fuse replacement
Refer to the figure below for the DC power cable fuse
replacement.
ATC 30 A fuse
