Icom IC-FR4000 Series User Manual

4-3-2 Digital Networked LTR
®
or PassPort
®
Trunking System
Digital Networked LTR
®
or PassPort
®
Trunking System
T1 Micro Wave
T1 Telco
Fractional T1
Antenna
Combiner
Antenna
Combiner
LTR
®
Trunking Controller
LTR
®
Trunking Controller
Link Controller
LTR
®
Trunking Controller
NTS
®
Commander
Master Controller Card
Trunking Controller Card
T1 Card Card
Trunking Controller Card
Xtend Card
61

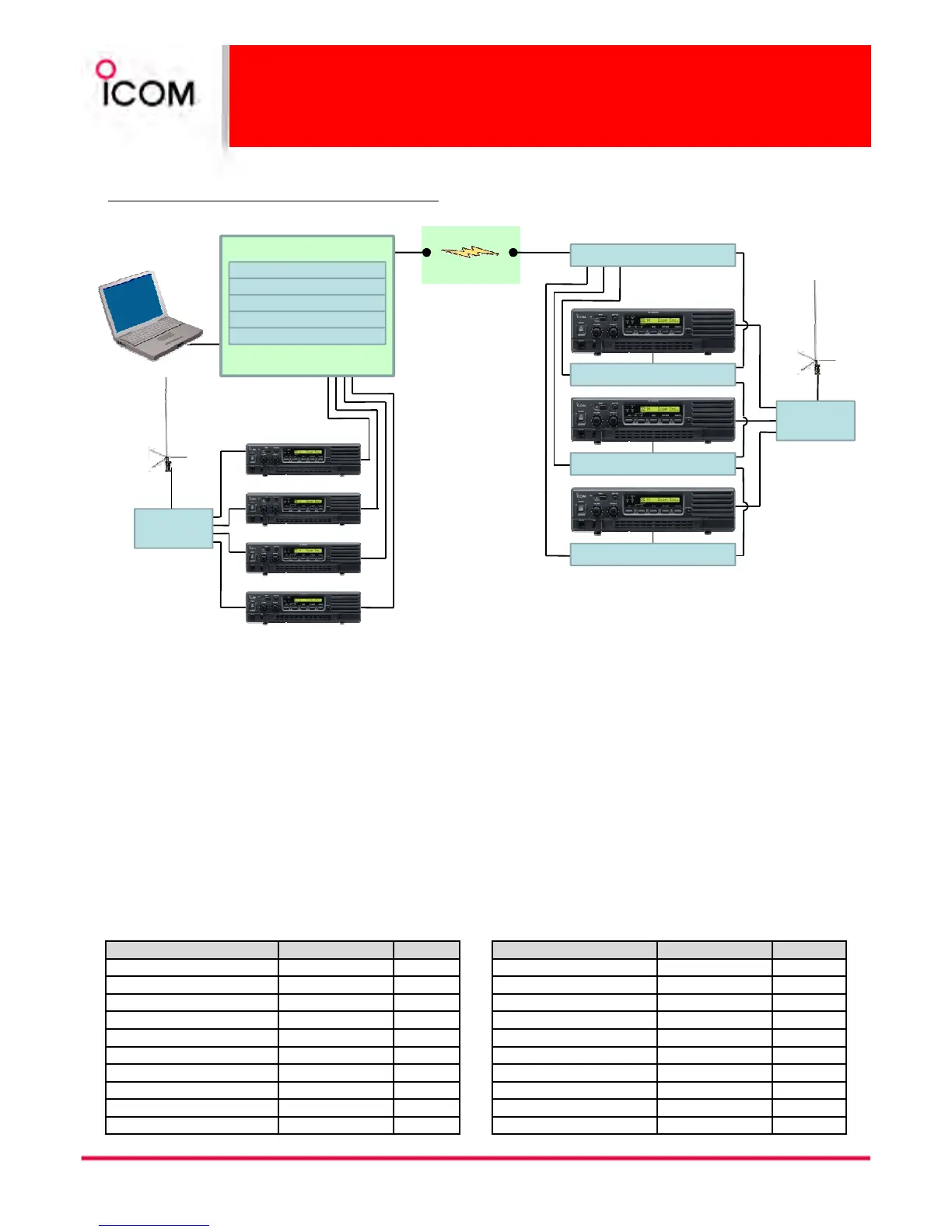

This is an example to upgrade to a digital network added
to the single trunking repeater site.
Site “A”
Site “A”Site “A”
Site “A”
Site “B”
Site “B”Site “B”
Site “B”
Descriptions Model Number Quantity
UHF Repeater IC-FR4000
UHF Antenna
Antenna Combiner
Trunking Controller
Link Controller
System requirements (Site “A“)
System requirements (Site “A“) System requirements (Site “A“)
System requirements (Site “A“) System requirements (Site “B”)
System requirements (Site “B”)System requirements (Site “B”)
System requirements (Site “B”)
Descriptions Model Number Quantity
UHF Repeater IC-FR4000
UHF Antenna
Antenna Combiner
NTS
®
Commander
Master Controller Card
Trunking Controller Card
T1 Card Card
Xtend Card
PC
