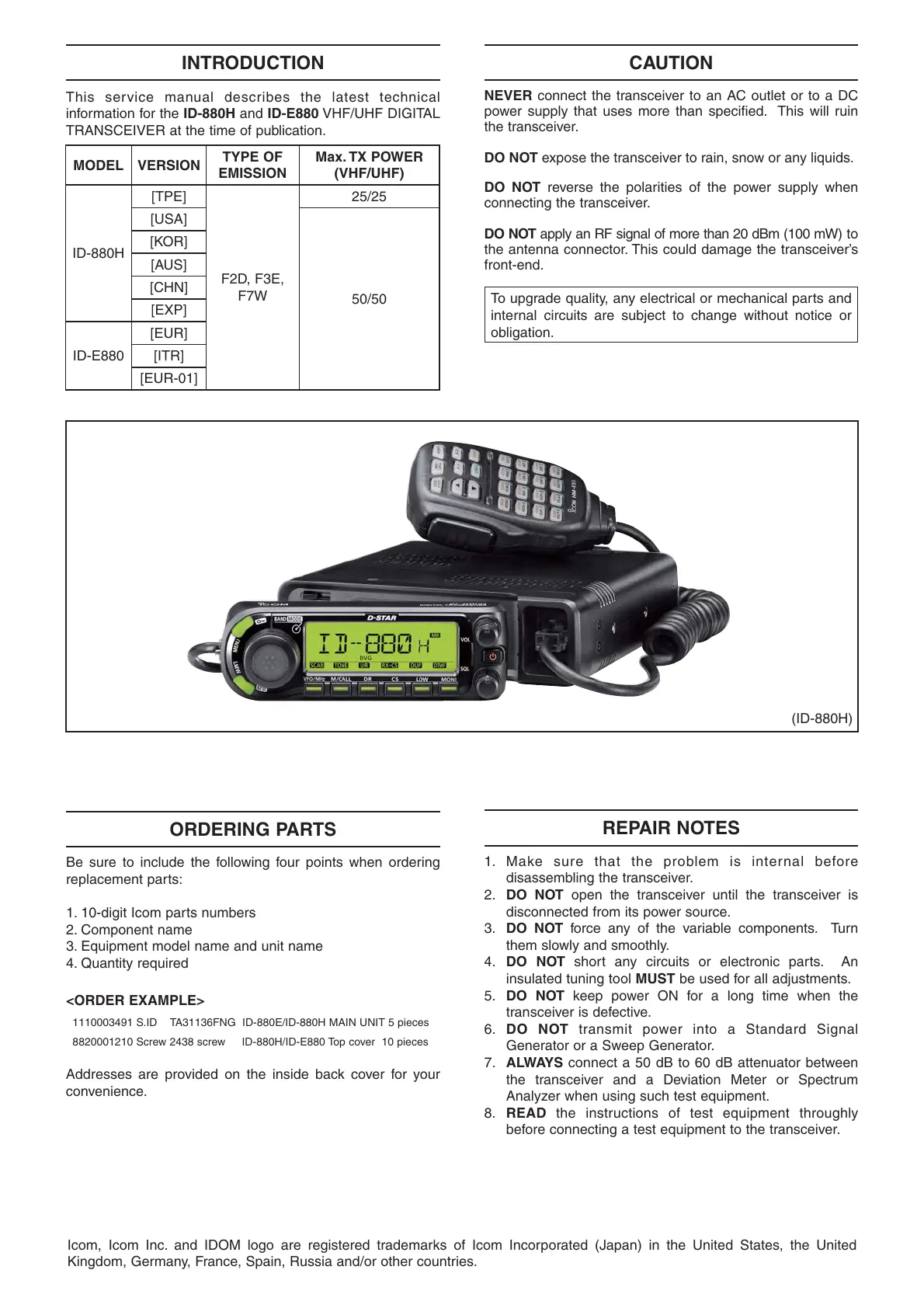

Icom ID-880H Service Manual

This service manual describes the latest technical
information for the ID-880H and ID-E880 VHF/UHF DIGITAL
TRANSCEIVER at the time of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than specified. This will ruin
the transceiver.
DO NOT expose the transceiver to rain, snow or any liquids.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front-end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
MODEL VERSION
TYPE OF
EMISSION
Max. TX POWER
(VHF/UHF)
ID-880H
[TPE]
F2D, F3E,
F7W
25/25
[USA]
50/50
[KOR]
[AUS]
[CHN]
[EXP]
ID-E880
[EUR]
[ITR]
[EUR-01]
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit Icom parts numbers
2. Component name
3. Equipment model name and unit name
4. Quantity required
<ORDER EXAMPLE>
1110003491 S.ID TA31136FNG ID-880E/ID-880H MAIN UNIT 5 pieces
8820001210 Screw 2438 screw ID-880H/ID-E880 Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and IDOM logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure that the problem is internal before
disassembling the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a Standard Signal
Generator or a Sweep Generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a Deviation Meter or Spectrum
Analyzer when using such test equipment.
8. READ the instructions of test equipment throughly
before connecting a test equipment to the transceiver.
REPAIR NOTES
INTRODUCTION CAUTION
(ID-880H)

Icom ID-880H Specifications

General

Input voltage	13.8 V
Mounting kit	Yes
Product type	Portable CB radio
Product color	Black
Housing material	-
Frequency range	10 - 20000 MHz
Channels quantity	1052 channels

Weight and Dimensions

Depth	198.12 mm
Width	149.86 mm
Height	40.64 mm
