Icom ID-880H Service Manual

5 - 8

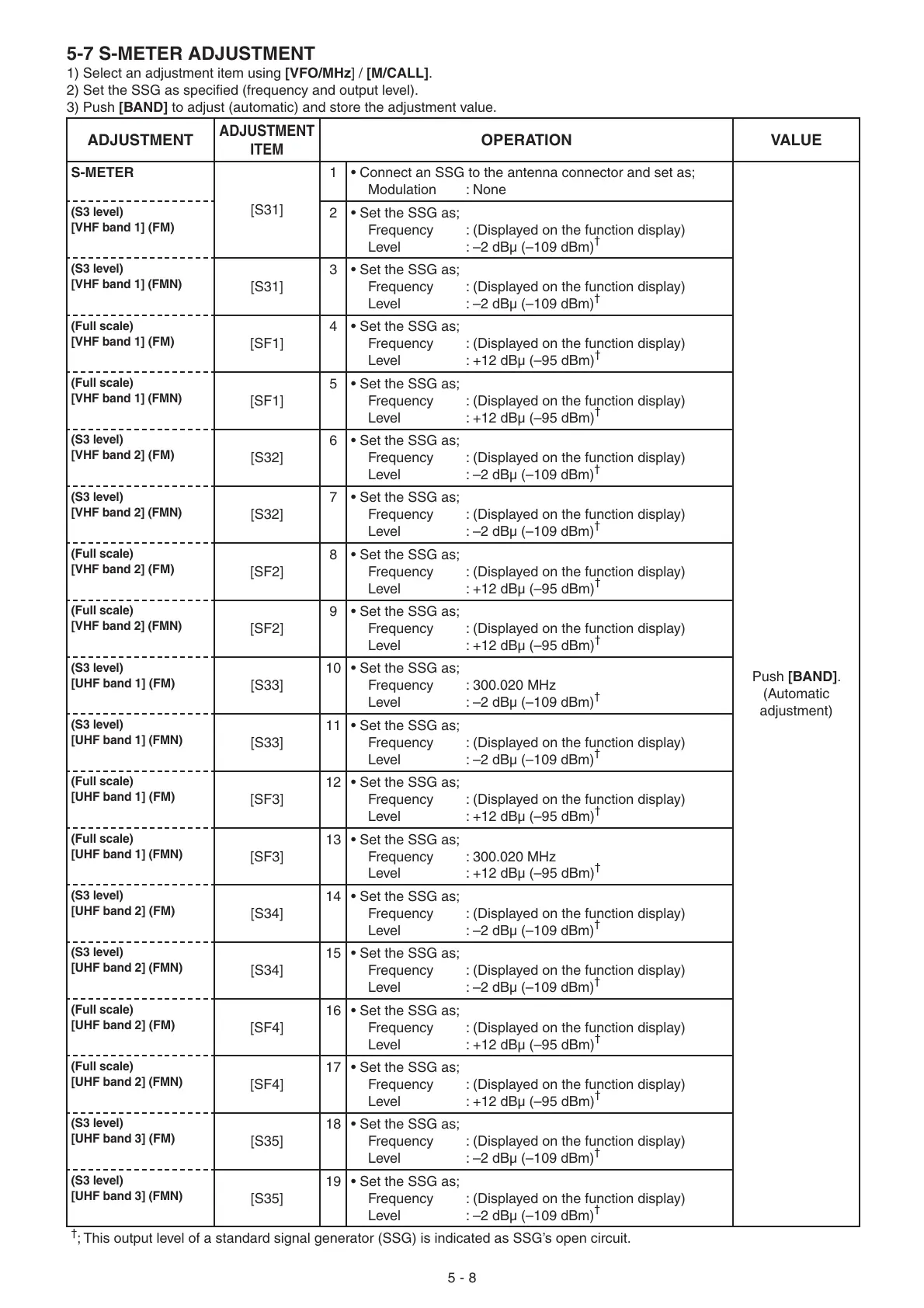

5-7 S-METER ADJUSTMENT
1) Select an adjustment item using [VFO/MHz] / [M/CALL].
2) Set the SSG as specifi ed (frequency and output level).
3) Push [BAND] to adjust (automatic) and store the adjustment value.
ADJUSTMENT
ADJUSTMENT
ITEM
OPERATION VALUE
S-METER
[S31]
1• Connect an SSG to the antenna connector and set as;
Modulation : None
Push [BAND].
(Automatic
adjustment)
(S3 level)
[VHF band 1] (FM)
2 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(S3 level)
[VHF band 1] (FMN)
[S31]
3 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(Full scale)
[VHF band 1] (FM)
[SF1]
4 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(Full scale)
[VHF band 1] (FMN)
[SF1]
5 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(S3 level)
[VHF band 2]
(FM)
[S32]
6 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(S3 level)
[VHF band 2] (FMN)
[S32]
7 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(Full scale)
[VHF band 2]
(FM)
[SF2]
8 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(Full scale)
[VHF band 2] (FMN)
[SF2]
9 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(S3 level)
[UHF band 1] (FM)
[S33]
10 • Set the SSG as;
Frequency : 300.020 MHz
Level : –2 dBµ (–109 dBm)
†
(S3 level)
[UHF band 1] (FMN)
[S33]
11 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(Full scale)
[UHF band 1] (FM)
[SF3]
12 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(Full scale)
[UHF band 1] (FMN)
[SF3]
13 • Set the SSG as;
Frequency : 300.020 MHz
Level : +12 dBµ (–95 dBm)
†
(S3 level)
[UHF band 2]
(FM)
[S34]
14 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(S3 level)
[UHF band 2] (FMN)
[S34]
15 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(Full scale)
[UHF band 2]
(FM)
[SF4]
16 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(Full scale)
[UHF band 2] (FMN)
[SF4]
17 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : +12 dBµ (–95 dBm)
†
(S3 level)
[UHF band 3] (FM)
[S35]
18 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
(S3 level)
[UHF band 3] (FMN)
[S35]
19 • Set the SSG as;
Frequency : (Displayed on the function display)
Level : –2 dBµ (–109 dBm)
†
†
; This output level of a standard signal generator (SSG) is indicated as SSG’s open circuit.
