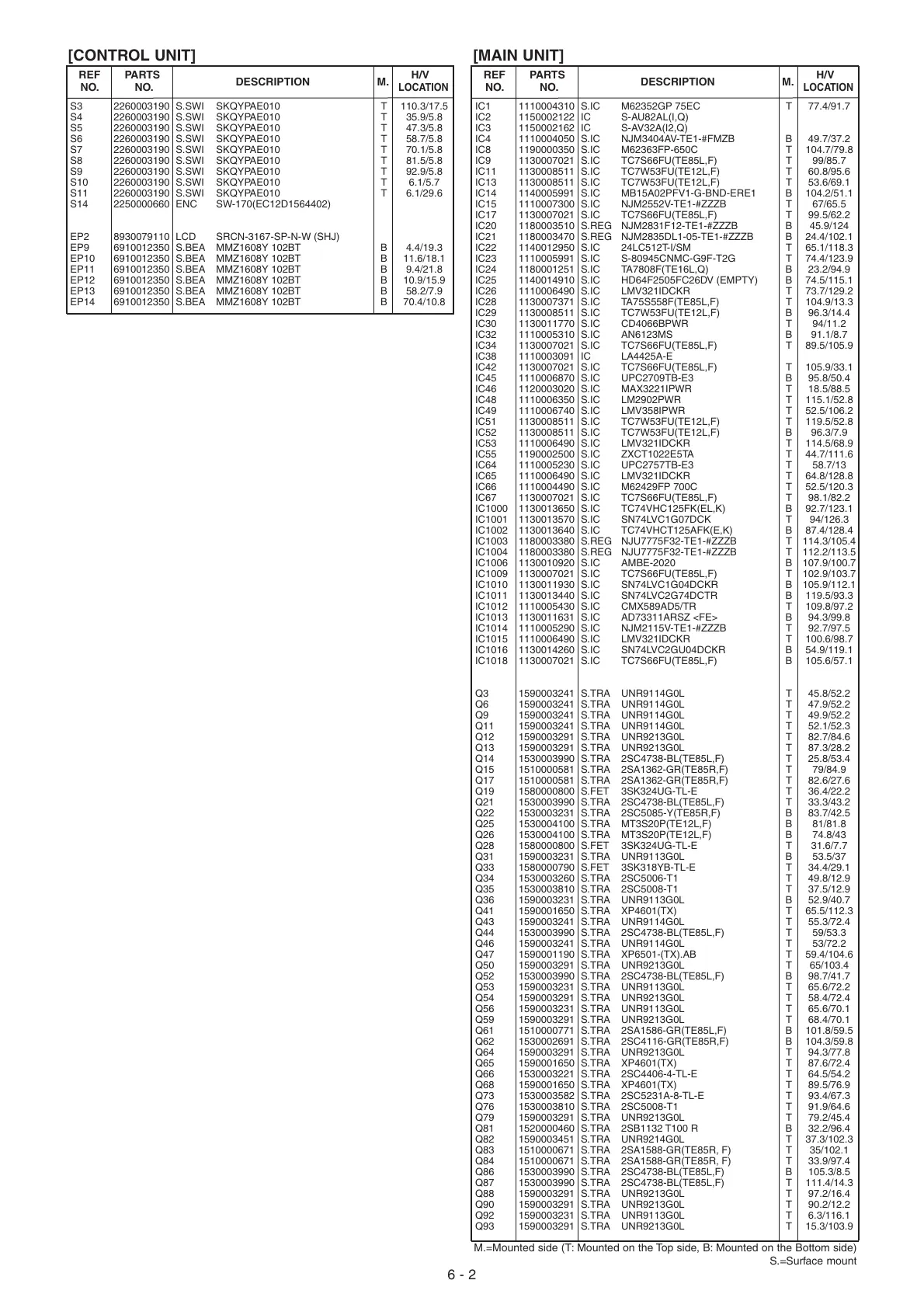

6 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[CONTROL UNIT]
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
S3 2260003190 S.SWI SKQYPAE010 T 110.3/17.5
S4 2260003190 S.SWI SKQYPAE010 T 35.9/5.8
S5 2260003190 S.SWI SKQYPAE010 T 47.3/5.8
S6 2260003190 S.SWI SKQYPAE010 T 58.7/5.8
S7 2260003190 S.SWI SKQYPAE010 T 70.1/5.8
S8 2260003190 S.SWI SKQYPAE010 T 81.5/5.8
S9 2260003190 S.SWI SKQYPAE010 T 92.9/5.8
S10 2260003190 S.SWI SKQYPAE010 T 6.1/5.7
S11 2260003190 S.SWI SKQYPAE010 T 6.1/29.6
S14 2250000660 ENC SW-170(EC12D1564402)
EP2 8930079110 LCD SRCN-3167-SP-N-W (SHJ)
EP9 6910012350 S.BEA MMZ1608Y 102BT B 4.4/19.3
EP10 6910012350 S.BEA MMZ1608Y 102BT B 11.6/18.1
EP11 6910012350 S.BEA MMZ1608Y 102BT B 9.4/21.8
EP12 6910012350 S.BEA MMZ1608Y 102BT B 10.9/15.9
EP13 6910012350 S.BEA MMZ1608Y 102BT B 58.2/7.9
EP14 6910012350 S.BEA MMZ1608Y 102BT B 70.4/10.8
S.=Surface mount
[MAIN UNIT]
REF PARTS
DESCRIPTION
M.
H/V
NO. NO.
LOCATION
IC1 1110004310 S.IC M62352GP 75EC T 77.4/91.7
IC2 1150002122 IC S-AU82AL(I,Q)
IC3 1150002162 IC S-AV32A(I2,Q)
IC4 1110004050 S.IC NJM3404AV-TE1-#FMZB B 49.7/37.2
IC8 1190000350 S.IC M62363FP-650C T 104.7/79.8
IC9 1130007021 S.IC TC7S66FU(TE85L,F) T 99/85.7
IC11 1130008511 S.IC TC7W53FU(TE12L,F) T 60.8/95.6
IC13 1130008511 S.IC TC7W53FU(TE12L,F) T 53.6/69.1
IC14 1140005991 S.IC MB15A02PFV1-G-BND-ERE1 B 104.2/51.1
IC15 1110007300 S.IC NJM2552V-TE1-#ZZZB T 67/65.5
IC17 1130007021 S.IC TC7S66FU(TE85L,F) T 99.5/62.2
IC20 1180003510 S.REG NJM2831F12-TE1-#ZZZB B 45.9/124
IC21 1180003470 S.REG NJM2835DL1-05-TE1-#ZZZB B 24.4/102.1
IC22 1140012950 S.IC 24LC512T-I/SM T 65.1/118.3
IC23 1110005991 S.IC S-80945CNMC-G9F-T2G T 74.4/123.9
IC24 1180001251 S.IC TA7808F(TE16L,Q) B 23.2/94.9
IC25 1140014910 S.IC HD64F2505FC26DV (EMPTY) B 74.5/115.1
IC26 1110006490 S.IC LMV321IDCKR T 73.7/129.2
IC28 1130007371 S.IC TA75S558F(TE85L,F) T 104.9/13.3
IC29 1130008511 S.IC TC7W53FU(TE12L,F) B 96.3/14.4
IC30 1130011770 S.IC CD4066BPWR T 94/11.2
IC32 1110005310 S.IC AN6123MS B 91.1/8.7
IC34 1130007021 S.IC TC7S66FU(TE85L,F) T 89.5/105.9
IC38 1110003091 IC LA4425A-E
IC42 1130007021 S.IC TC7S66FU(TE85L,F) T 105.9/33.1
IC45 1110006870 S.IC UPC2709TB-E3 B 95.8/50.4
IC46 1120003020 S.IC MAX3221IPWR T 18.5/88.5
IC48 1110006350 S.IC LM2902PWR T 115.1/52.8
IC49 1110006740 S.IC LMV358IPWR T 52.5/106.2
IC51 1130008511 S.IC TC7W53FU(TE12L,F) T 119.5/52.8
IC52 1130008511 S.IC TC7W53FU(TE12L,F) B 96.3/7.9
IC53 1110006490 S.IC LMV321IDCKR T 114.5/68.9
IC55 1190002500 S.IC ZXCT1022E5TA T 44.7/111.6
IC64 1110005230 S.IC UPC2757TB-E3 T 58.7/13
IC65 1110006490 S.IC LMV321IDCKR T 64.8/128.8
IC66 1110004490 S.IC M62429FP 700C T 52.5/120.3
IC67 1130007021 S.IC TC7S66FU(TE85L,F) T 98.1/82.2
IC1000 1130013650 S.IC TC74VHC125FK(EL,K) B 92.7/123.1
IC1001 1130013570 S.IC SN74LVC1G07DCK T 94/126.3
IC1002 1130013640 S.IC TC74VHCT125AFK(E,K) B 87.4/128.4
IC1003 1180003380 S.REG NJU7775F32-TE1-#ZZZB T 114.3/105.4
IC1004 1180003380 S.REG NJU7775F32-TE1-#ZZZB T 112.2/113.5
IC1006 1130010920 S.IC AMBE-2020 B 107.9/100.7
IC1009 1130007021 S.IC TC7S66FU(TE85L,F) T 102.9/103.7
IC1010 1130011930 S.IC SN74LVC1G04DCKR B 105.9/112.1
IC1011 1130013440 S.IC SN74LVC2G74DCTR B 119.5/93.3
IC1012 1110005430 S.IC CMX589AD5/TR T 109.8/97.2
IC1013 1130011631 S.IC AD73311ARSZ <FE> B 94.3/99.8
IC1014 1110005290 S.IC NJM2115V-TE1-#ZZZB T 92.7/97.5
IC1015 1110006490 S.IC LMV321IDCKR T 100.6/98.7
IC1016 1130014260 S.IC SN74LVC2GU04DCKR B 54.9/119.1
IC1018 1130007021 S.IC TC7S66FU(TE85L,F) B 105.6/57.1
Q3 1590003241 S.TRA UNR9114G0L T 45.8/52.2
Q6 1590003241 S.TRA UNR9114G0L T 47.9/52.2
Q9 1590003241 S.TRA UNR9114G0L T 49.9/52.2
Q11 1590003241 S.TRA UNR9114G0L T 52.1/52.3
Q12 1590003291 S.TRA UNR9213G0L T 82.7/84.6
Q13 1590003291 S.TRA UNR9213G0L T 87.3/28.2
Q14 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 25.8/53.4
Q15 1510000581 S.TRA 2SA1362-GR(TE85R,F) T 79/84.9
Q17 1510000581 S.TRA 2SA1362-GR(TE85R,F) T 82.6/27.6
Q19 1580000800 S.FET 3SK324UG-TL-E T 36.4/22.2
Q21 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 33.3/43.2
Q22 1530003231 S.TRA 2SC5085-Y(TE85R,F) B 83.7/42.5
Q25 1530004100 S.TRA MT3S20P(TE12L,F) B 81/81.8
Q26 1530004100 S.TRA MT3S20P(TE12L,F) B 74.8/43
Q28 1580000800 S.FET 3SK324UG-TL-E T 31.6/7.7
Q31 1590003231 S.TRA UNR9113G0L B 53.5/37
Q33 1580000790 S.FET 3SK318YB-TL-E T 34.4/29.1
Q34 1530003260 S.TRA 2SC5006-T1 T 49.8/12.9
Q35 1530003810 S.TRA 2SC5008-T1 T 37.5/12.9
Q36 1590003231 S.TRA UNR9113G0L B 52.9/40.7
Q41 1590001650 S.TRA XP4601(TX) T 65.5/112.3
Q43 1590003241 S.TRA UNR9114G0L T 55.3/72.4
Q44 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 59/53.3
Q46 1590003241 S.TRA UNR9114G0L T 53/72.2
Q47 1590001190 S.TRA XP6501-(TX).AB T 59.4/104.6
Q50 1590003291 S.TRA UNR9213G0L T 65/103.4
Q52 1530003990 S.TRA 2SC4738-BL(TE85L,F) B 98.7/41.7
Q53 1590003231 S.TRA UNR9113G0L T 65.6/72.2
Q54 1590003291 S.TRA UNR9213G0L T 58.4/72.4
Q56 1590003231 S.TRA UNR9113G0L T 65.6/70.1
Q59 1590003291 S.TRA UNR9213G0L T 68.4/70.1
Q61 1510000771 S.TRA 2SA1586-GR(TE85L,F) B 101.8/59.5
Q62 1530002691 S.TRA 2SC4116-GR(TE85R,F) B 104.3/59.8
Q64 1590003291 S.TRA UNR9213G0L T 94.3/77.8
Q65 1590001650 S.TRA XP4601(TX) T 87.6/72.4
Q66 1530003221 S.TRA 2SC4406-4-TL-E T 64.5/54.2
Q68 1590001650 S.TRA XP4601(TX) T 89.5/76.9
Q73 1530003582 S.TRA 2SC5231A-8-TL-E T 93.4/67.3
Q76 1530003810 S.TRA 2SC5008-T1 T 91.9/64.6
Q79 1590003291 S.TRA UNR9213G0L T 79.2/45.4
Q81 1520000460 S.TRA 2SB1132 T100 R B 32.2/96.4
Q82 1590003451 S.TRA UNR9214G0L T 37.3/102.3
Q83 1510000671 S.TRA 2SA1588-GR(TE85R, F) T 35/102.1
Q84 1510000671 S.TRA 2SA1588-GR(TE85R, F) T 33.9/97.4
Q86 1530003990 S.TRA 2SC4738-BL(TE85L,F) B 105.3/8.5
Q87 1530003990 S.TRA 2SC4738-BL(TE85L,F) T 111.4/14.3
Q88 1590003291 S.TRA UNR9213G0L T 97.2/16.4
Q90 1590003291 S.TRA UNR9213G0L T 90.2/12.2
Q92 1590003231 S.TRA UNR9113G0L T 6.3/116.1
Q93 1590003291 S.TRA UNR9213G0L T 15.3/103.9
