Icom ID-880H Service Manual

1 - 1

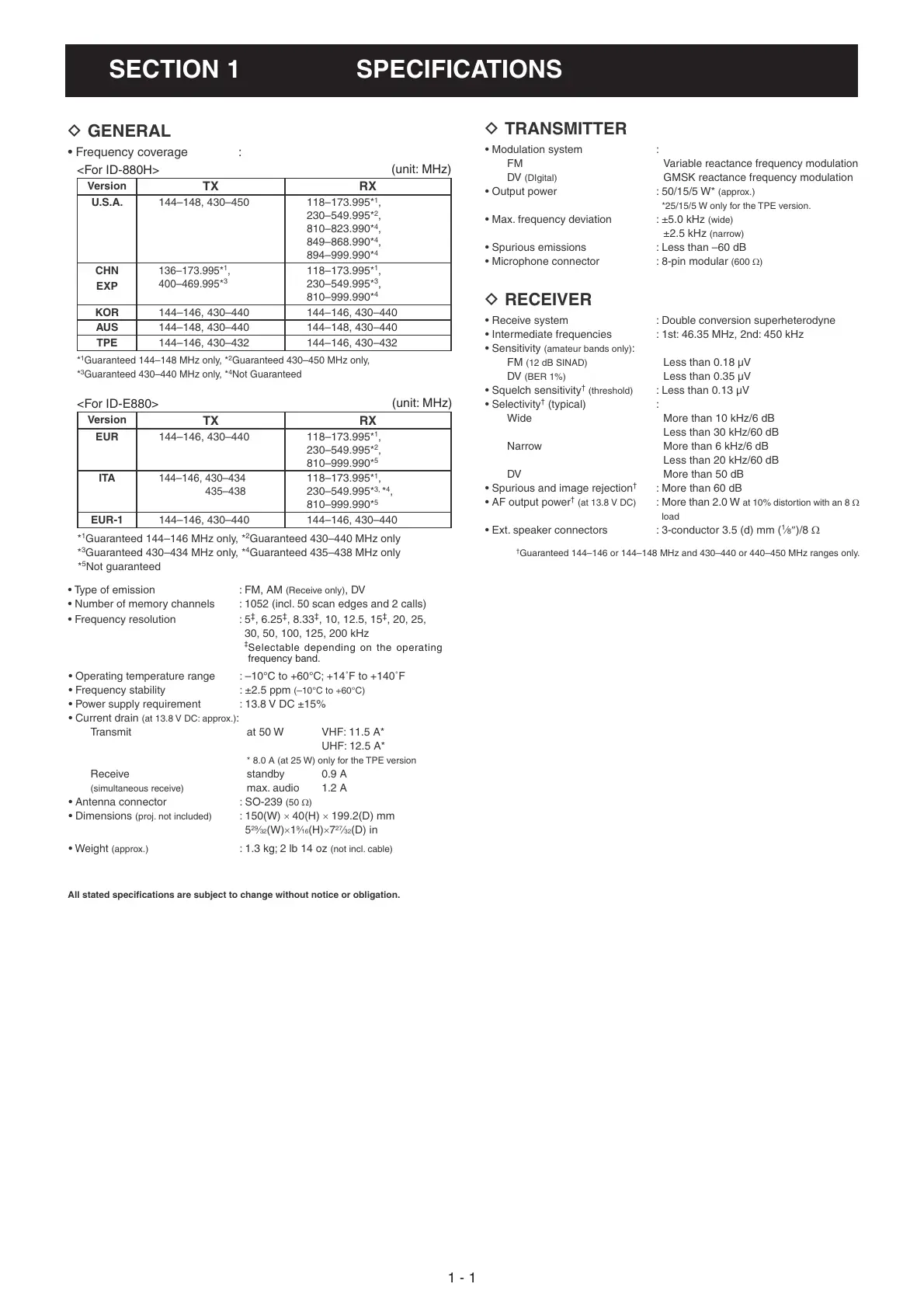

SECTION 1. SPECIFICATIONS
<For ID-880H>
<For ID-E880>
‡
Selectable depending on the operating
frequency band.
:
Version
TX RX
U.S.A. 144–148, 430–450 118–173.995 *
1
,
230–549.995
*
2
,
810–823.990
*
4
,
849–868.990
*
4
,
894–999.990
*
4
CHN
EXP
136–173.995*
1
,
400–469.995*
3
118–173.995 *
1
,
230–549.995
*
3
,
810–999.990
*
4
KOR 144–146, 430–440 144–146, 430–440
AUS 144–148, 430–440 144–148, 430–440
TPE 144–146, 430–432 144–146, 430–432
*
1
Guaranteed 144–148 MHz only, *
2
Guaranteed 430–450 MHz only,
*
3
Guaranteed 430–440 MHz only, *
4
Not Guaranteed
D GENERAL
• Frequency coverage :
• Type of emission : FM, AM (Receive only), DV
• Number of memory channels : 1052 (incl. 50 scan edges and 2 calls)
• Frequency resolution : 5
‡
, 6.25
‡
, 8.33
‡
, 10, 12.5, 15
‡
, 20, 25,
30, 50, 100, 125, 200 kHz
• Operating temperature range : –10°C to +60°C; +14˚F to +140˚F
• Frequency stability : ±2.5 ppm
(–10°C to +60°C)
• Power supply requirement : 13.8 V DC ±15%
• Current drain
(at 13.8 V DC: approx.):
Transmit at 50 W VHF: 11.5 A*
UHF: 12.5 A*
* 8.0 A (at 25 W) only for the TPE version
Receive standby 0.9 A
(simultaneous receive) max. audio 1.2 A
• Antenna connector : SO-239
(50 Ω)
• Dimensions (proj. not included) : 150(W) × 40(H) × 199.2(D) mm
5
29
⁄32(W)×1
9
⁄16(H)×7
27
⁄32(D) in
• Weight
(approx.) : 1.3 kg; 2 lb 14 oz (not incl. cable)
D TRANSMITTER
• Modulation system :
FM
Variable reactance frequency modulation
DV (DIgital) GMSK reactance frequency modulation
• Output power : 50/15/5 W*
(approx.)
*25/15/5 W only for the TPE version.
• Max. frequency deviation : ±5.0 kHz (wide)
±2.5 kHz (narrow)
• Spurious emissions : Less than –60 dB
• Microphone connector : 8-pin modular
(600 Ω)
D RECEIVER
• Receive system : Double conversion superheterodyne
• Intermediate frequencies : 1st: 46.35 MHz, 2nd: 450 kHz
• Sensitivity
(amateur bands only):
FM
(12 dB SINAD) Less than 0.18 μV
DV
(BER 1%) Less than 0.35 μV
• Squelch sensitivity
†
(threshold) : Less than 0.13 μV
• Selectivity
†
(typical) :
Wide More than 10 kHz/6 dB
Less than 30 kHz/60 dB
Narrow More than 6 kHz/6 dB
Less than 20 kHz/60 dB
DV More than 50 dB
• Spurious and image rejection
†
: More than 60 dB
•
AF output power
†
(at 13.8 V DC) : More than 2.0 W at 10% distortion with an 8 Ω
load
• Ext. speaker connectors : 3-conductor 3.5 (d) mm (
1
⁄8″)/8 Ω
†
Guaranteed 144–146 or 144–148 MHz and 430–440 or 440–450 MHz ranges only.
All stated specifications are subject to change without notice or obligation.
Version
TX RX
EUR 144–146, 430–440 118–173.995 *
1
,
230–549.995
*
2
,
810–999.990
*
5
ITA 144–146, 430–434
435–438
118–173.995 *
1
,
230–549.995
*
3,
*
4
,
810–999.990
*
5
EUR-1 144–146, 430–440 144–146, 430–440
*
1
Guaranteed 144–146 MHz only, *
2
Guaranteed 430–440 MHz only
*
3
Guaranteed 430–434 MHz only, *
4
Guaranteed 435–438 MHz only
*
5
Not guaranteed
(unit: MHz)
(unit: MHz)
