Installing an AGP Card
Follow these instructions to install an AGP card:
1. Place the AGP card in the AGP connector.
2. Press down on the card until it is completely seated in the AGP connector and the card
retention notch snaps into place around the RM pin.
3. Secure the card’s metal bracket to the chassis back panel with a screw.
Removing an AGP Card from the Retention Mechanism
Follow these instructions to remove an AGP card from the retention mechanism:
1. Remove the screw (B) that secures the card’s metal bracket (A) to the chassis back panel.
2. Push back on the retention mechanism lever (D), as shown in Figure 5, until the retention pin
(C) completely clears the notch in the card.
3. Pull the card straight up (E).
OM10595
A
B
C
D
E

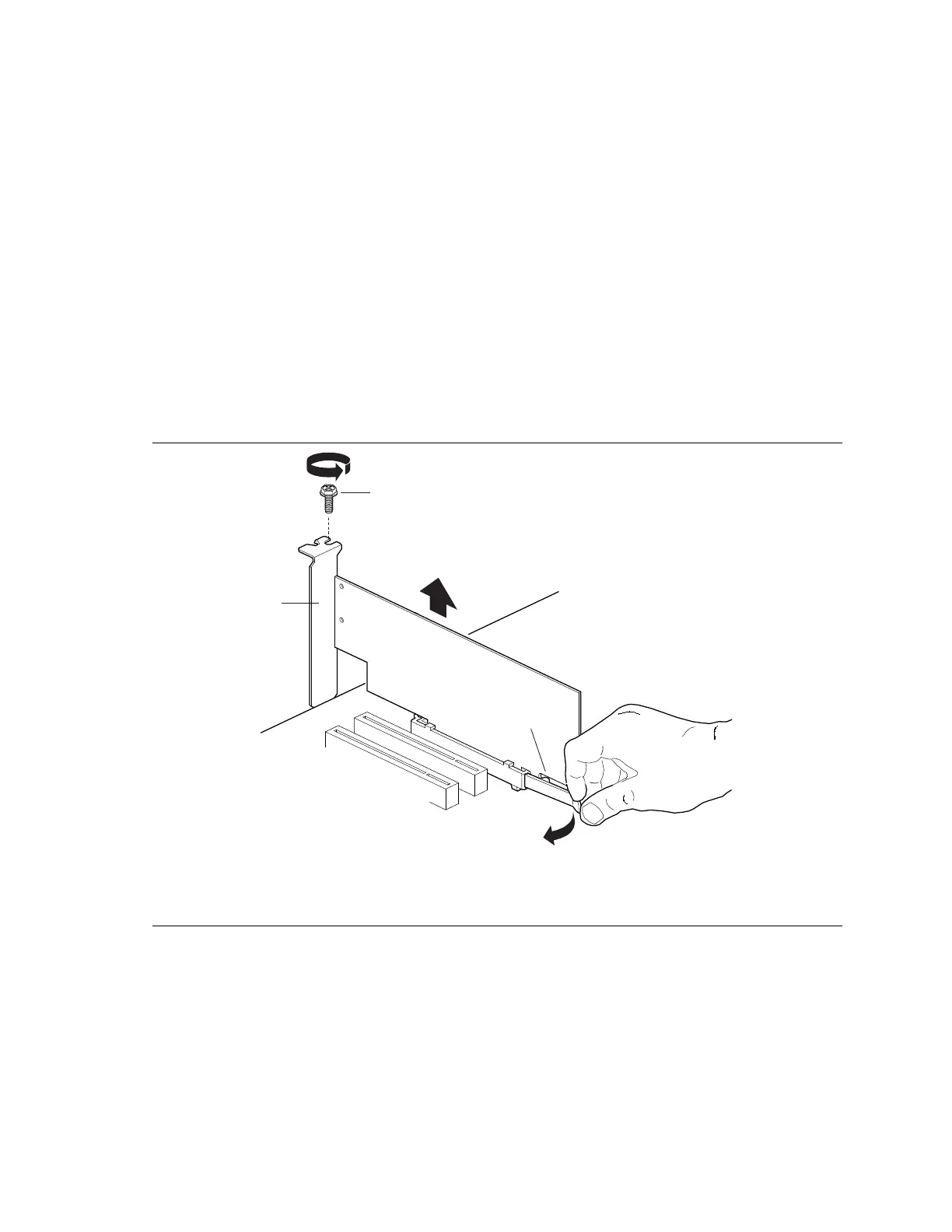

Figure 5. Removing the AGP Card
