Intel Desktop Board D850GB
/D850GBAL Pr
oduct Guide
70
Back Panel Connectors

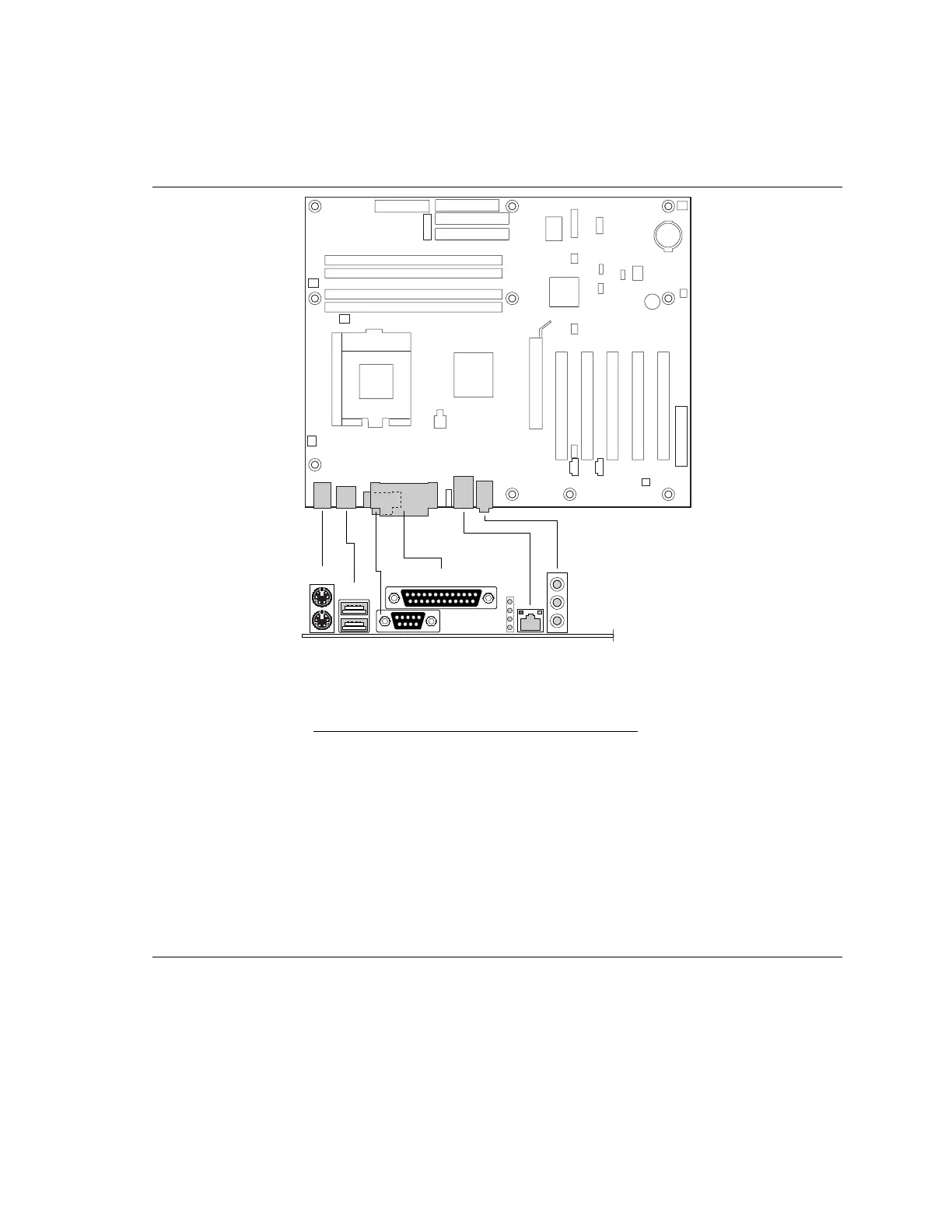

Figure 22 shows the back panel connectors on the board.
OM10658
B
A
F
H
J
I
G
E
C
D
Item
Description
Col
or
A
PS/2 mouse port
Green
B
PS/2 keyboard port
Purple
C
USB port 0
Black
D
USB port 1
Black
E
Parallel port
Burgundy
F
Serial port
Teal
G
RJ-45
Black
H
Audio line in
Light blue
I
Audio line out
Lime green
J
Mic in
Pink
Figure 22. Back Panel Connectors
69
71
