Installing and Replacing Desktop Board Components
31
How to Install the Fan Heatsink
To install the fan heatsink, follow these instructions:

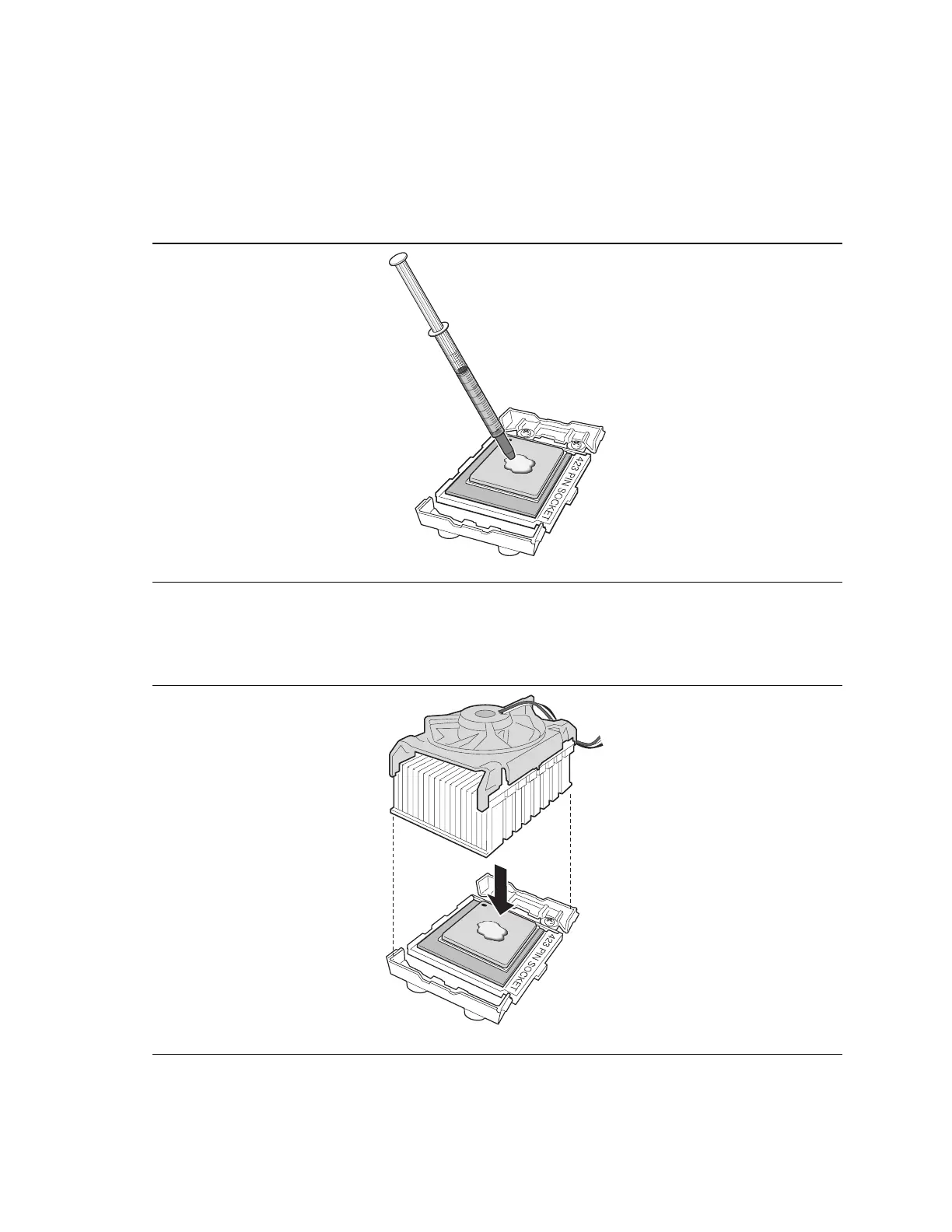

1. Apply about half of the thermal grease from the syringe to the center of the processor surface,
as shown in Figure 13.
OM10642
Figure 13. Applying Thermal Grease to the Processor Surface
2. Place the symmetrical fan heatsink on the processor so that the fan cable is facing the right
edge of the board (see Figure 14).
OM10634
Figure 14. Attaching the Fan Heatsink
