Installing and Replacing Desktop Board Components
35
1
OM10635
0

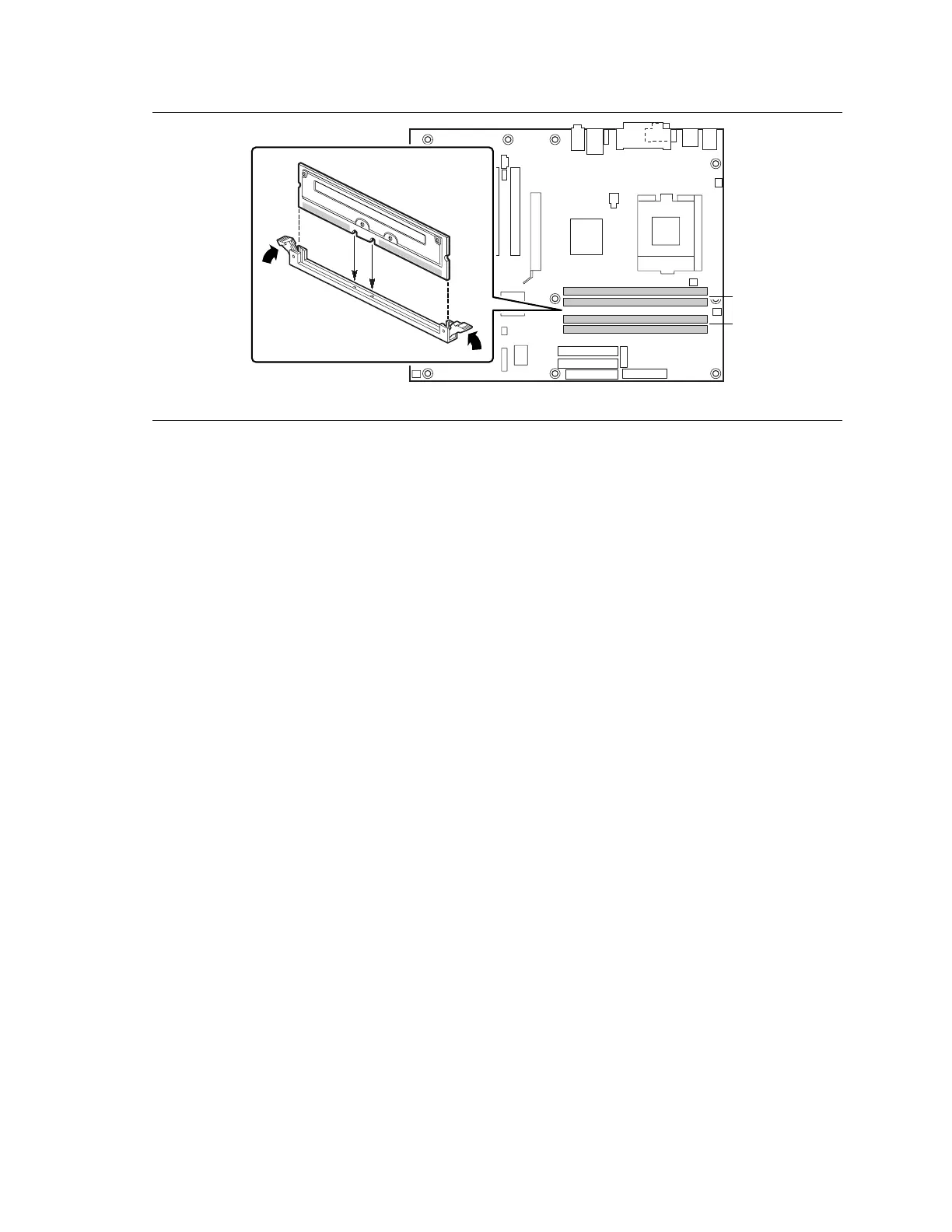

Figure 17. Installing a Memory Module
To install the memory modules, follow these steps:
1. Observe the precautions in “Before You Begin” (see page 21).
2. Holding the memory module by the edges, remove it from its antistatic package.
3. Make sure the clips at either end of the socket are pushed away from the socket.
4. Position the module above the socket. Align the two small notches in the bottom edge of the
module with the keys in the socket.
5. Insert the bottom edge of the module into the socket.
6. When the module is seated, push down on the top edge of the module until the retaining clips
snap into place. Make sure the clips are firmly in place.
Removing Memory
To remove a memory module, follow these steps:
1. Observe the precautions in "Before You Begin" (see page 21).
2. Turn off all peripheral devices connected to the computer. Turn off the computer. Disconnect
the computer’s power cord from the AC power source (wall outlet or power adapter).
3. Remove the computer cover.
4. Gently spread the retaining clips at each end of the socket. The memory pops out of the
socket.
5. Hold the memory module by the edges, lift it away from the socket, and store it in an antistatic
package.
6. Reinstall and reconnect any parts you removed or disconnected to reach the memory module
sockets.
