Technical Reference
73
Add-In Board and Peripheral Interface Connectors

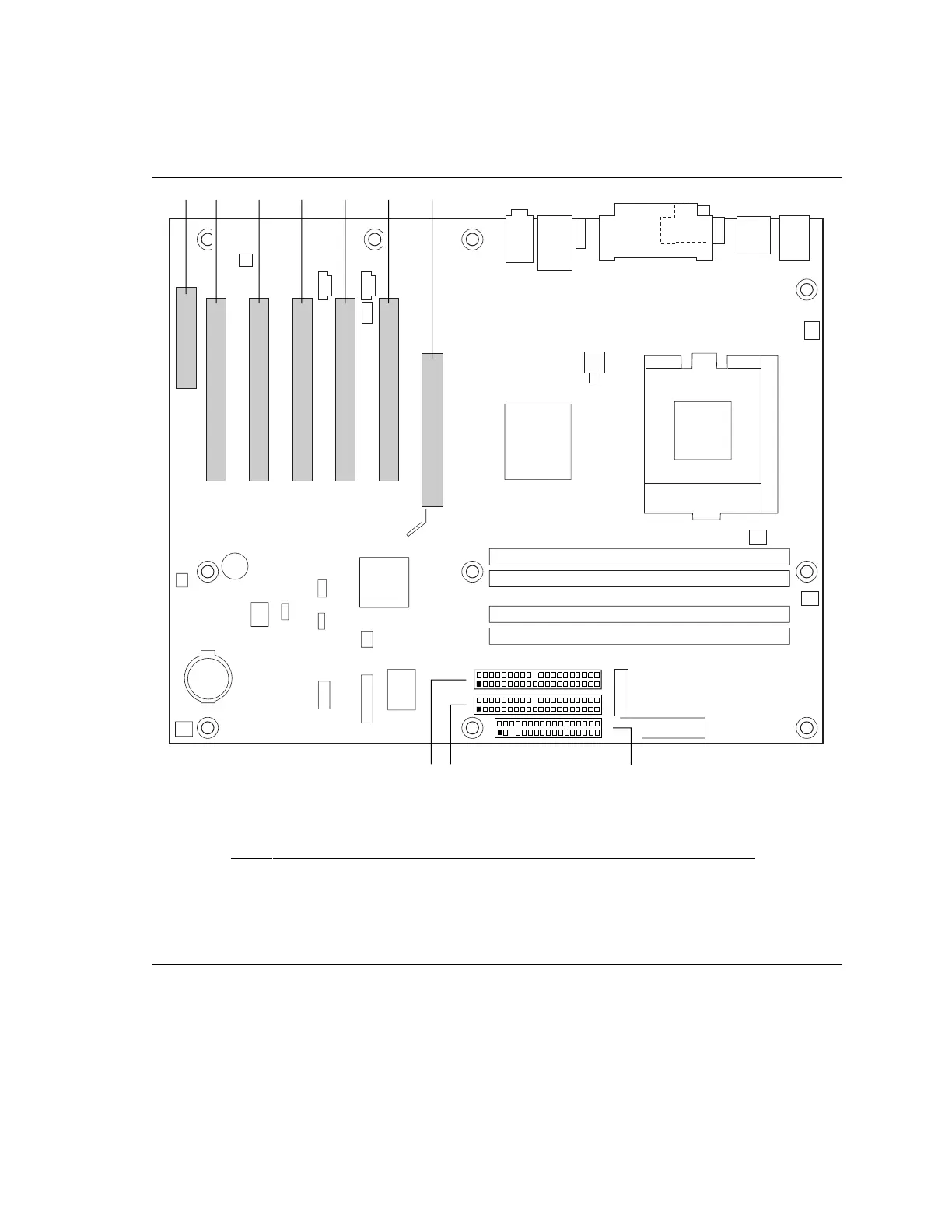

Figure 25 shows the add-in board and peripheral interface connectors.
OM10664
1
2
33
34
H
1
24
0
39
1
24
0
39
I
J
C
D
E
G
A
B
F
Item
D
escription
Item
D
escription
A
CNR (D850GB only)
F
PCI slot 1
B
PCI slot 5
G
AGP slot
C
PCI s
lot 4
H
Disk
ette drive
D
PCI s
lot 3
I
Secondary IDE
E
PCI slot 2
J
Primary IDE
Figure 25. Add-in Board and Peripheral Interface Connectors
