Technical Reference
71
✏
NOTE
The line out connector, located on the back panel, is designed to power either headphones or
amplified speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
Midboard Connectors
Audio Connectors (D850GBAL only)

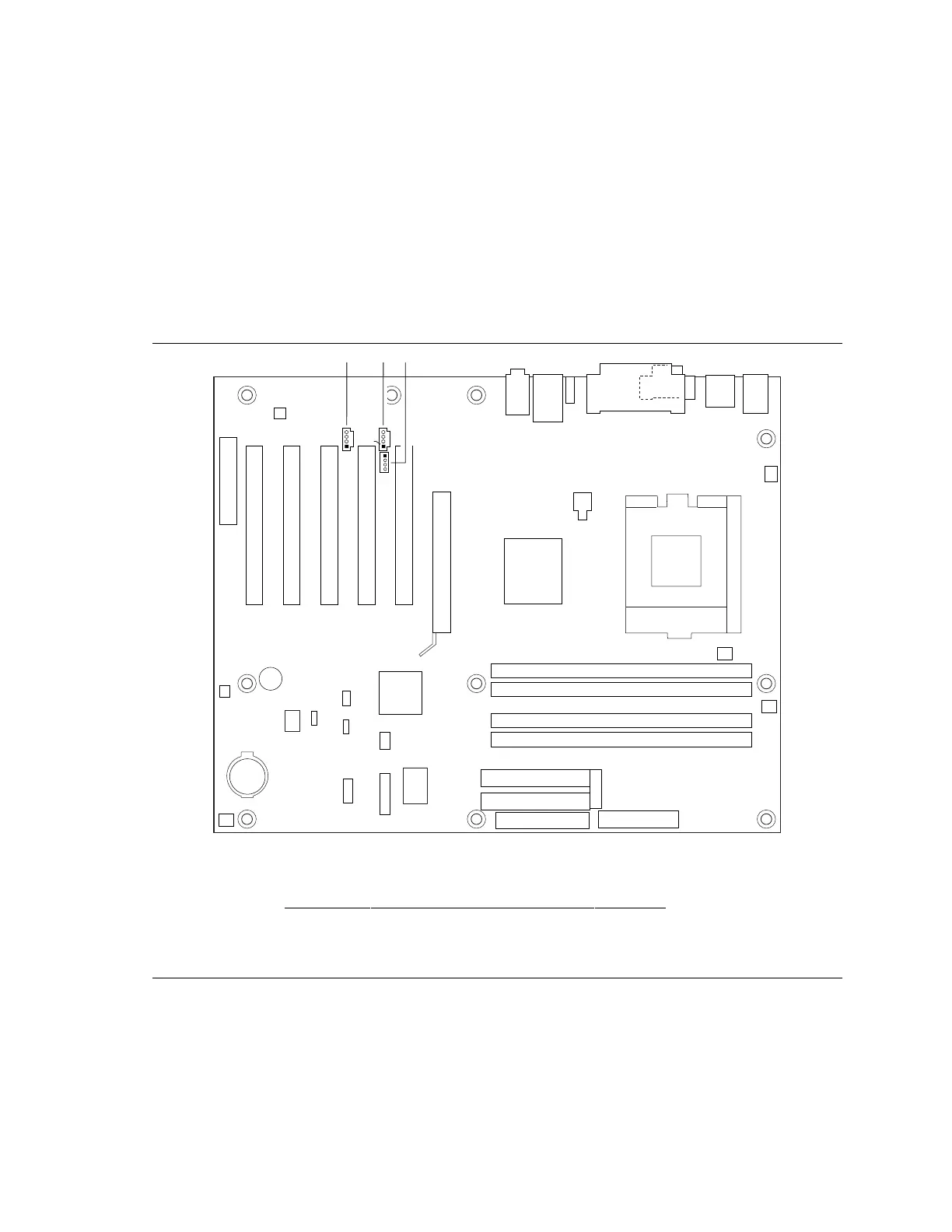

Figure 23 shows the location of the audio connectors.
OM10753
C
1
1
1
BA
Item Description Color
A Auxiliary line in, ATAPI style White
B ATAPI CD-ROM Black
C CD-ROM, legacy style, 2 mm White
Figure 23. Audio Connectors
