Installing the I/O Shield
The board comes with an I/O shield. When installed in the chassis, the shield blocks radio
frequency transmissions, protects internal components from dust and foreign objects, and promotes
correct airflow within the chassis.
Install the I/O shield before installing the board in the chassis. Place the shield inside the chassis
as shown in Figure 7 and Figure 8. Press the shield into place so that it fits tightly and securely. If
the shield doesn’t fit, obtain a properly-sized shield from the chassis supplier.

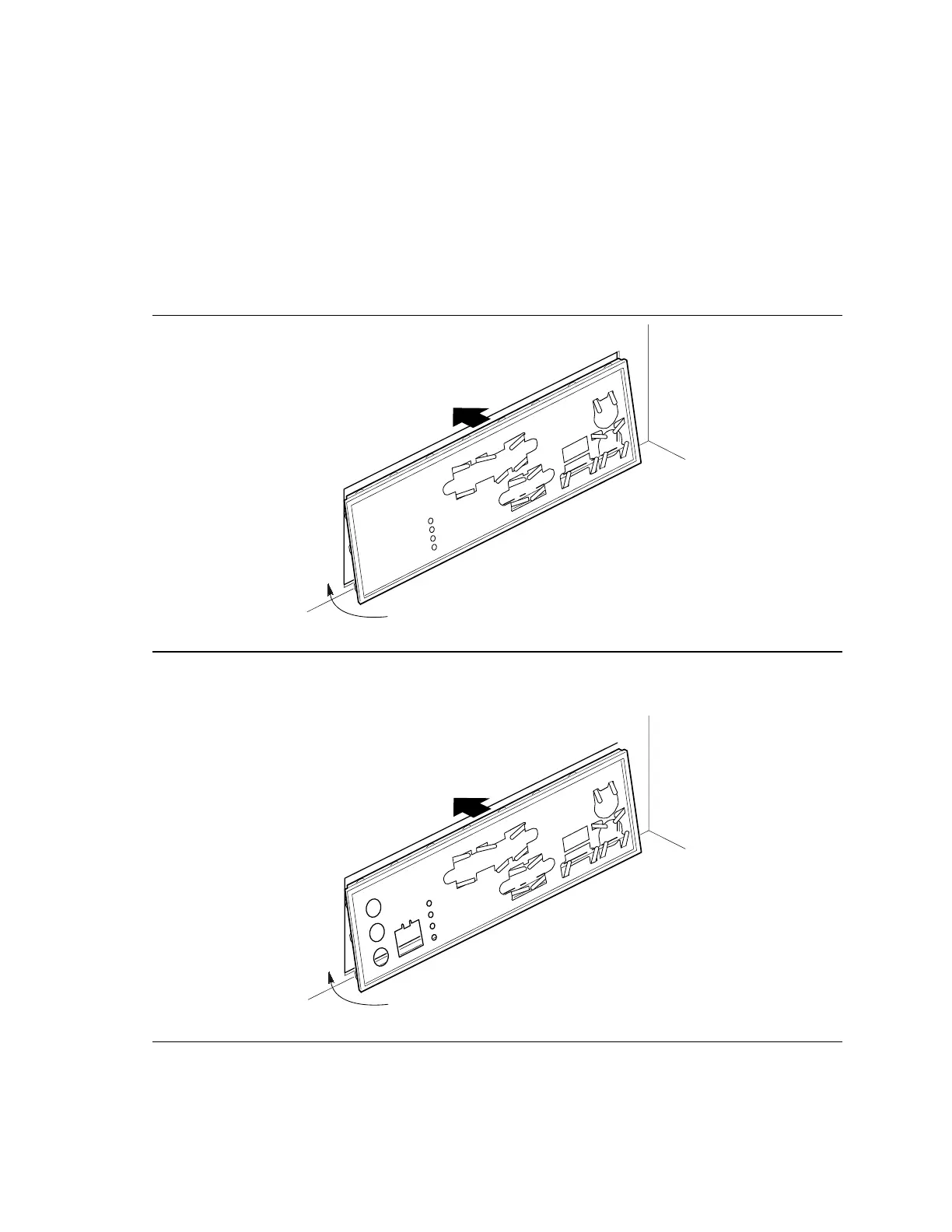

OM10586
Figure 7. Installing the D850GB I/O Shield
OM10631
Figure 8. Installing the D850GBAL I/O Shield
