EN
Assembly and Installation
Risk of death due to electrical shock!
Incorrect assembly and installation of the device can result in life-threatening electrical voltages.
This product should be installed by an electric specialist according to current installation standards.

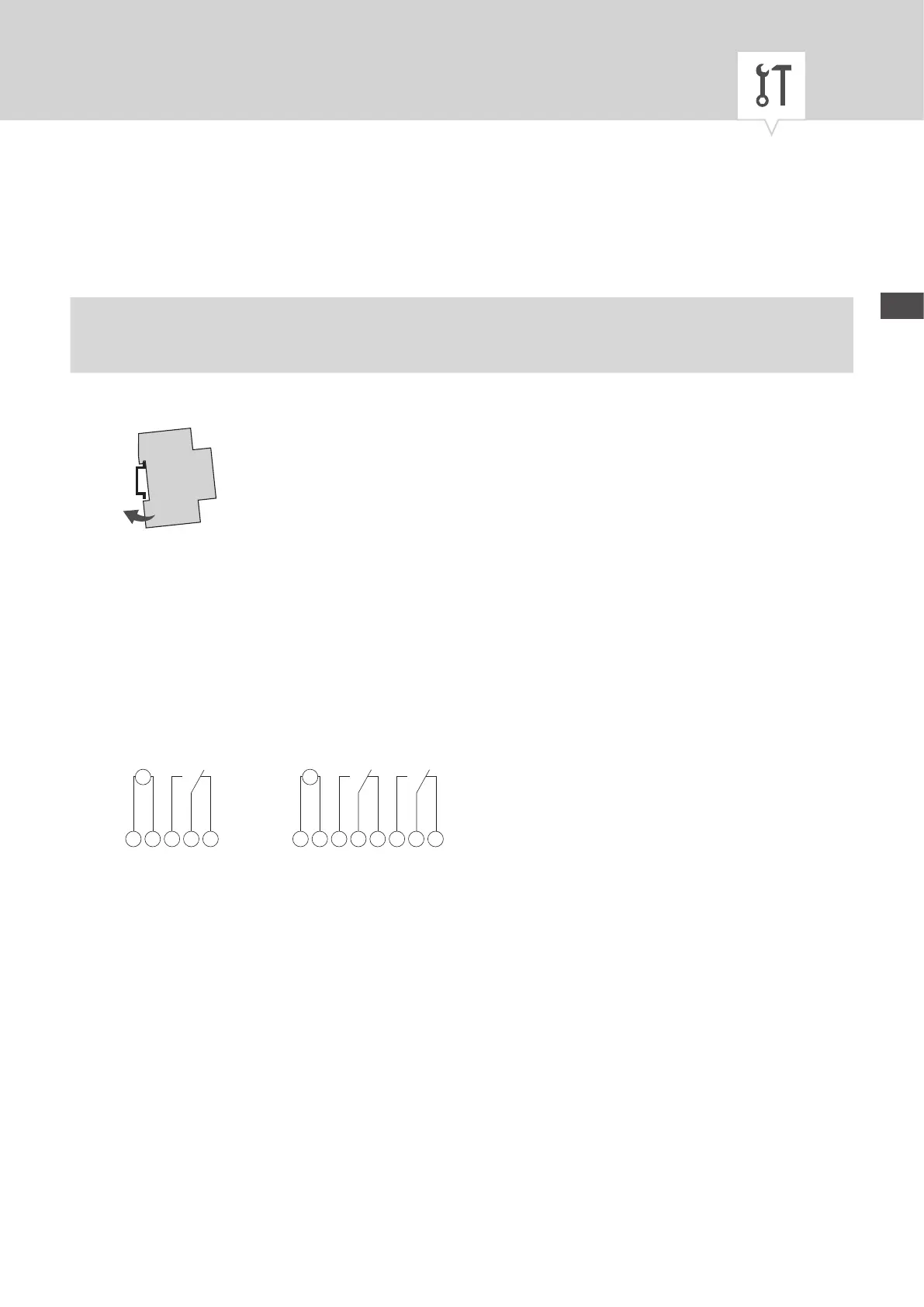

Installation on a DIN-rail
Place the device onto the DIN-rail from above at a slight angle.
1. Press it backwards until it clicks into place.
Circuit diagram
CH1 = Channel 1
CH2 = Channel 2
L N
M
~
CH1
1 2 3
L N
M
~
CH1
1 2 3 5 6
7
CH2
1-Channel variant 2-Channel variant
Install the device according to the circuit diagram (with one or two channels depending on the variant).
47
