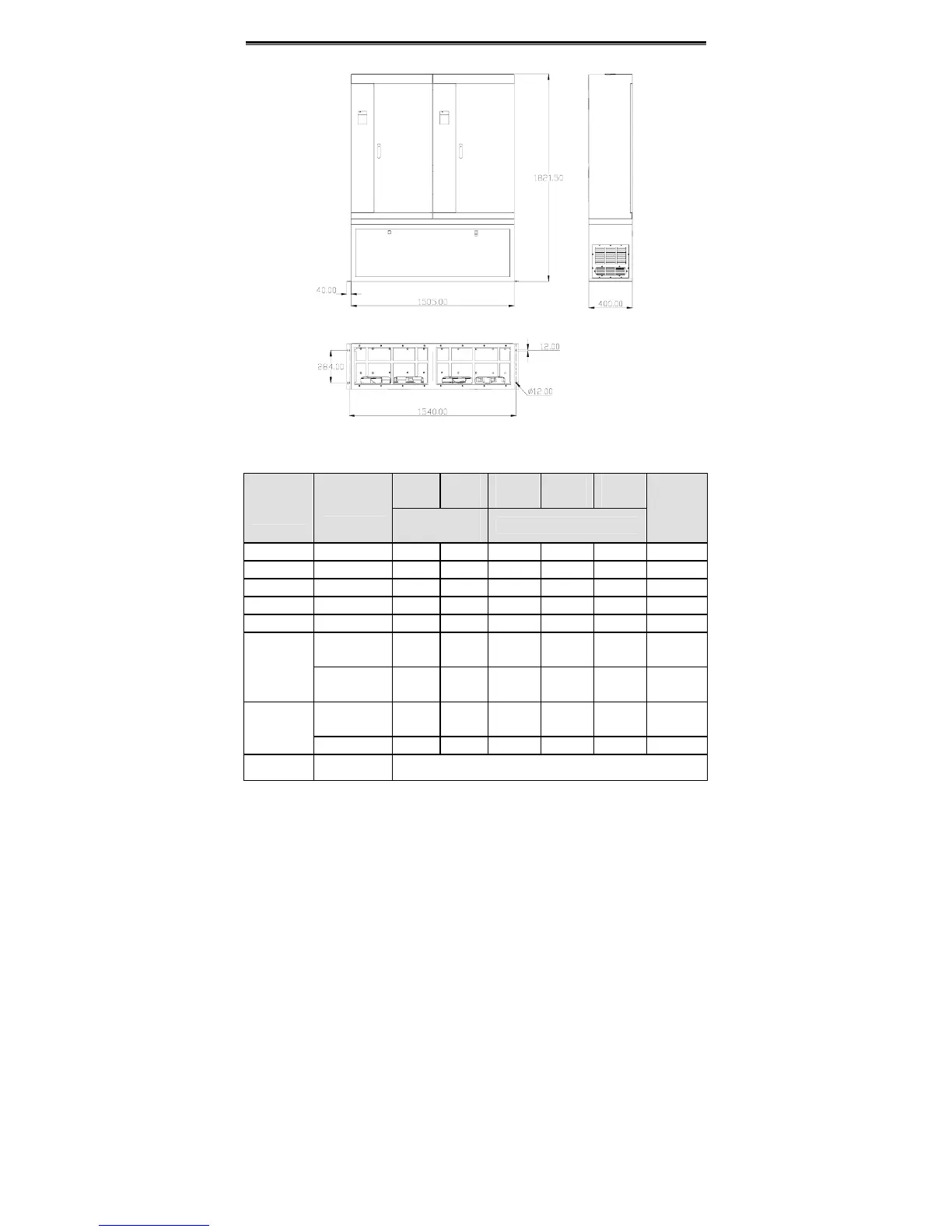

Figure 1.7 Dimensions (350kw~630KW).
A
(mm)
B
(mm)
H
(mm)
W
(mm)
D
(mm)
Power
(kW)
Size
Installation
Dimension
External Dimension
Installation
Hole
(mm)
1.5~5.5 C 147.5 237.5 250 160 175 5
7.5~15 D 206 305.5 320 220 180 6.0
18.5~30 E 176 454.5 467 290 215 6.5
37~55 F 230 564.5 577 375 270 7.0
75~110 G 320 738.5 755 460 330 9.0
H(without
base)
270 1233 1275 490 391 13.0
132~185
H(with
base)
— — 1490 490 391 —
I(without
base)
500 1324 1358 750 402 12.5
200~315
I(with base) — — 1670 750 402 —
350~630 J(with base) See Figure 1.7
