ARMY TM 9-2815-254-24
AIR FORCE TO 35G1-94-2
3-18. OIL PUMP.
3-18.1. Removal / Disassembly.
a.
Remove oil pan, refer to paragraph 3-17.1.
b.
Remove crankcase, refer to paragraph 3-29.1.
c.
Disconnect oil pipe (1, FIGURE 3-41) at sleeve nut.
d.
Remove two screws (2) securing pump assembly and remove pump.
e.
Disconnect pipe (1) from pump.
f.
Unscrew strainer assembly (3) from pump cover (5).
g.
Remove four screws (4) securing pump cover (5) to pump rotor (6).

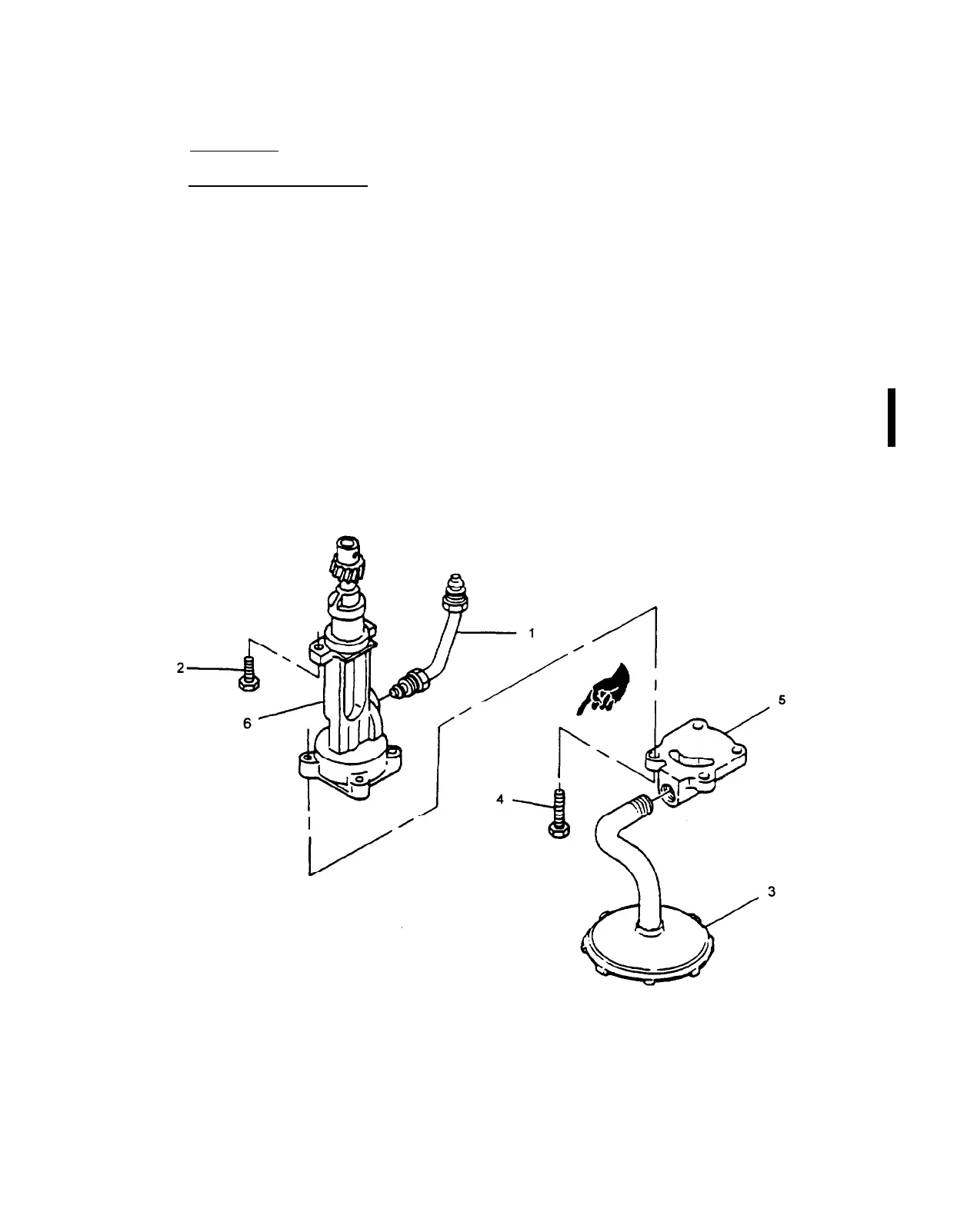

FIGURE 3-41. Oil Pump Assembly
Change 2 3-75
