Isuzu C-240PW-28 User Manual

ARMY TM 9-2815-254-24
AIR FORCE TO 38G1-94-2
d.
e.
f.
g.
h.
i.
j.
k.
I.
m.

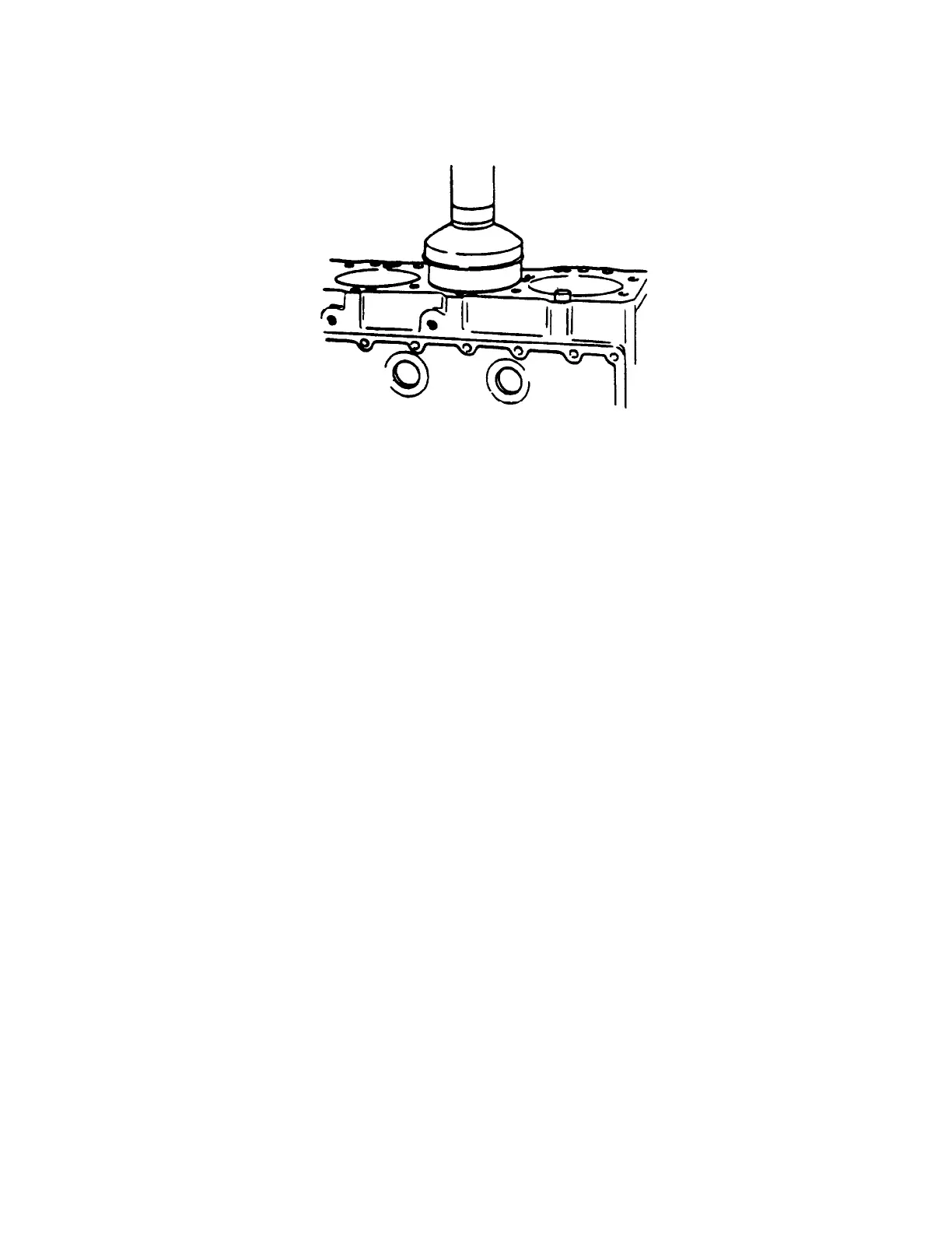

FIGURE 3-116. Pressing Cylinder Liner
Positioncover (13, FIGURE 3-111) and new packing (14) on engine block and secure with two screws (12).
Install camshaft bearings (11) using bearing remover/ installer (320905) ensuring bearing oil holes align with
cylinder block oil holes.
Apply a coat of engine lubricating oil (ML-L-21 04) to the eight tappets (10) and cylinder block tappet traveling
bores. If reusing tappets, ensure they are installed in correct locations as tagged during disassembly.
Apply adhesive (242) to lip of coolant duct (9) and install it in engine block.
Apply adhesive (242) to all freeze plugs removed and tap them into holes in block.
Install camshaft, refer to paragraph 3-30.5.
Install crankshaft, refer to paragraph 3-28.5.
Position right engine foot (7) and alternator mounting bracket (6) on cylinder block and secure with bolts (4)
and washers (5).
Position left engine foot (3) on cylinder block and secure with bolts (1) and washers (2).
Install new gasket (40) and front plate (41) on cylinder block aligning front plate with two pins (30). Secure
plate with screws (42) and tighten to 168 pounds-inch (19 Nm)
3-171/(3-172 blank)
