Failure to loosen cylinder head bolts (2) a little at a time and in the proper
sequence will adversely affect cylinder head (3) lower surface.
h.
Loosen nineteen bolts (2) a file at a time in the sequence shown in FIGURE 3-61.
i.
After all nineteen bolts (2, FIGURE 3-60) have been loosened, remove them and lift cylinder head assembly
(3) from engine block. Remove and discard head gasket (4).

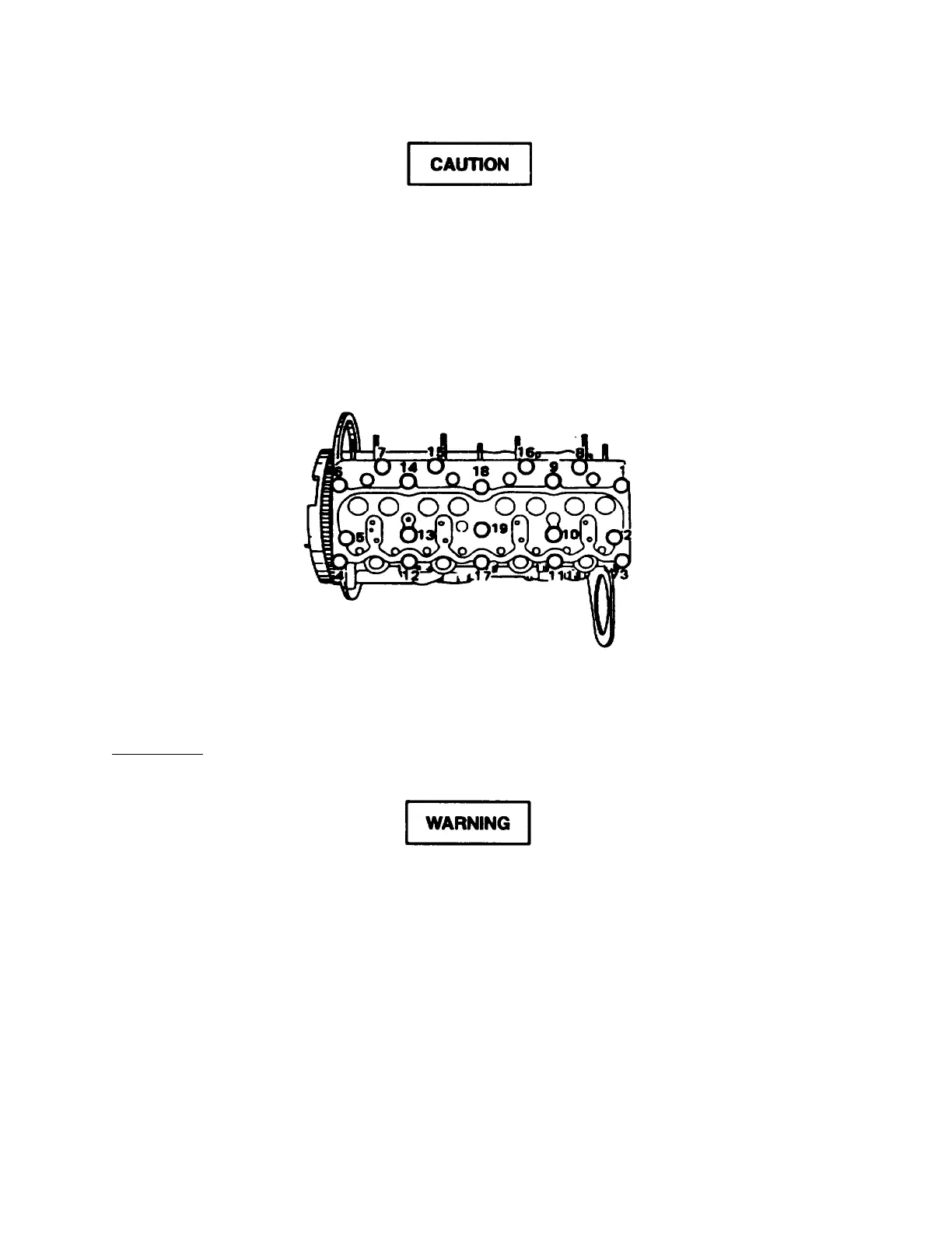

FIGURE 3-61. Cylinder Head Bolt Loosening Sequence
3-27.2. Disassembly.
a.
Place cylinder head on a flat wooden surface.
To avoid personal injury, do not stand in front of valve springs while com-
pressing them.
3-112
