n. Remove crankcase, refer to paragraph 3-29.1.
o. Remove oil pump, refer to paragraph 3-18.1.
p. Remove pistons and connecting rods, refer to paragraph 3-28.1
q. Remove two screws (5) at camshaft thrust plate (10).
When removing camshaft (6) use extreme care to avoid contact be-
tween camshaft and engine block. Remove it slowly and use both
hands, otherwise, equipment damage could occur.
r. Withdraw camshaft (6) from engine block using care not to damage camshaft journal, cam, and camshaft.
3-30.2. Disassembly of Camshaft.
a. Clamp camshaft (6, FIGURE 3-101) in a soft-jawed vise.
b. Measure camshaft end play, refer to paragraph 3-30.3.2, step f.
c. Remove bolt (7) and washer (8) from gear end of camshaft (6)
d. Using a universal puller, remove gear (9) from camshaft (6)
e. Remove thrust plate (10) and key (11) refer to FIGURE 3-102.

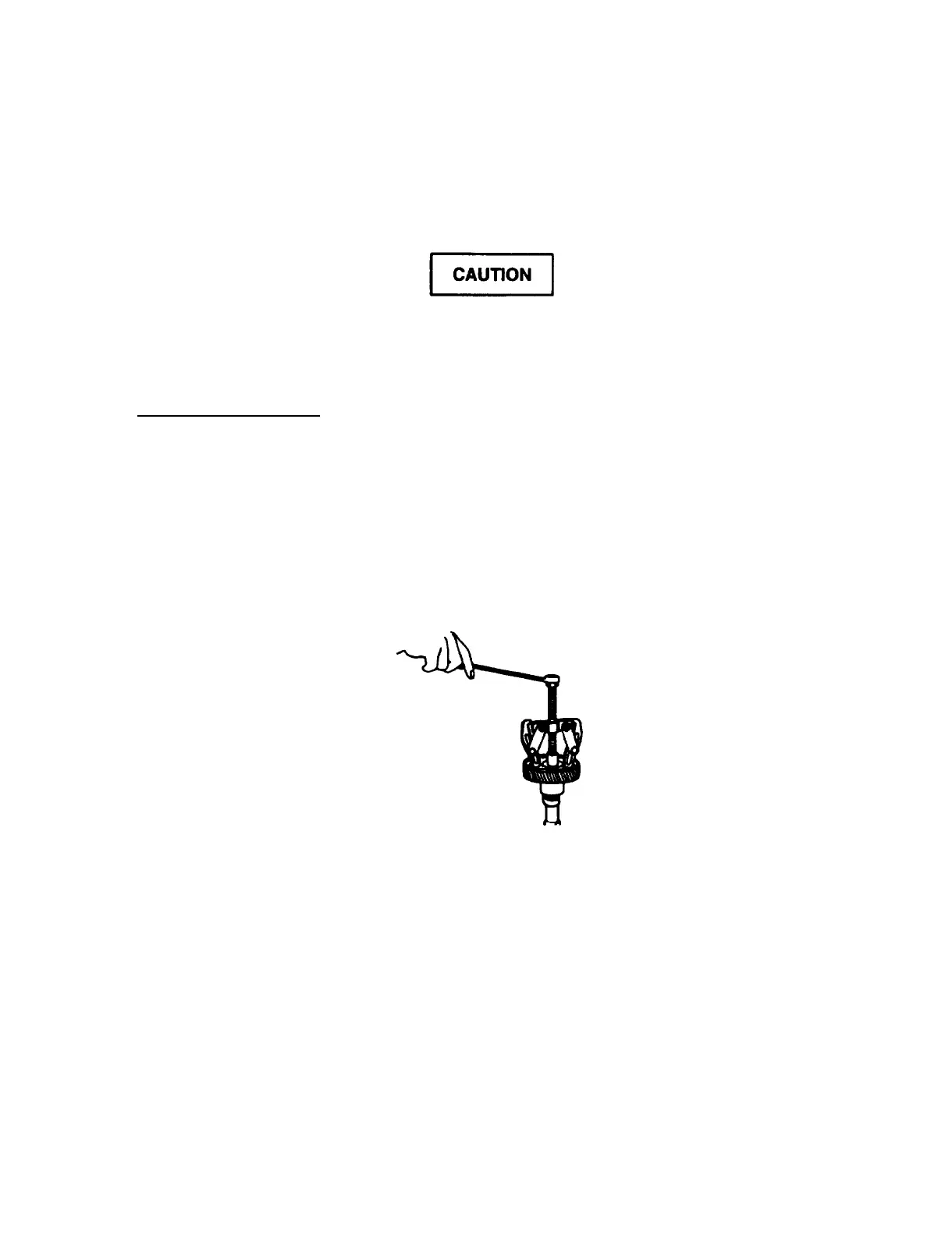

FIGURE 3-102. Thrust Plate Removal
3-153
