Use protective gloves when handling heated ring gear to prevent seri-
ous burns.
(2)
Evenly heat ring gear to not more than 390°F (200°C). This will cause ring gear to expand.
(3)
Install heated ring gear (17) with chamfer facing rear of engine on basic flywheel (6).
3-31.3. lnstallation.
a.
If removed, install plug (15, FIGURE 3-107) with new gasket (16) in flywheel housing and install two starter
mounting studs (14).
b.
Apply sealing compound (FORMAGASKET2) to shaded areas at flywheel housing (10) shown in FIGURE
3-109.

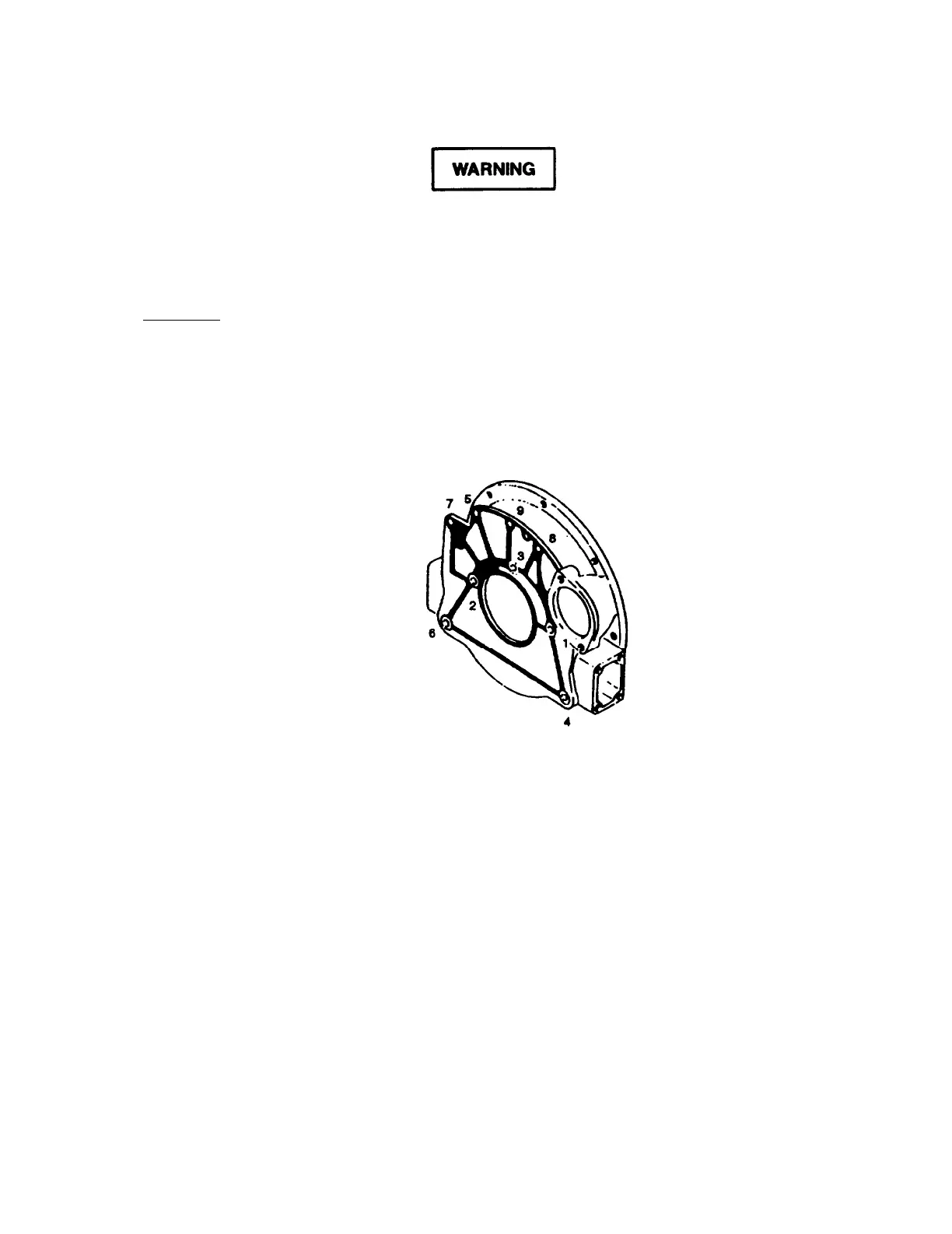

FIGURE 3-109. Flywheel Housing Installation Sequence
c.
Position flywheel housing on engine block and secure with three bolts (12, FIGURE 3-107), three bolts (11),
bolt (8). new lockwasher (9), and nut (10). Install two bolts (7) securing flywheel housing to crankcase.
d. Tighten flywheel housing fasteners a little at a time and in sequence shown in FIGURE 3-109 to 61 ft-lbs (82.7
Nm) for bolts (12) and to 30 ft-lbs (40.7 Nm) for bolts (11).
3-161
