ARMY TM 9-2815-254-24
AIR FORCE TO 38G1-94-2
(5)

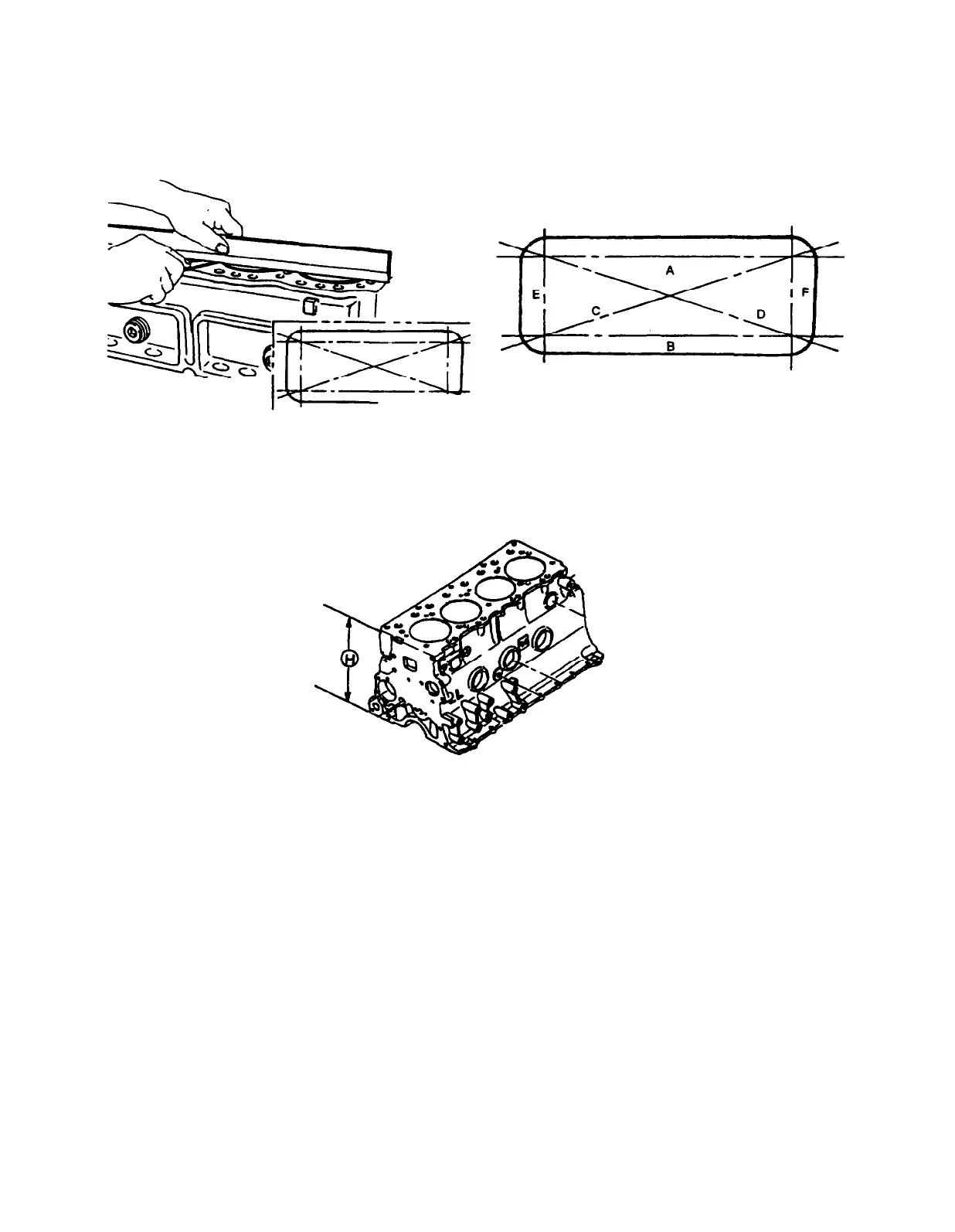

FIGURE 3-112. Cylinder Block Upper Face Warpage Measurement
Standard cylinder block height is 10.748 in. (273 mm) with a limit of 10.732 in. (272.6 mm), refer to FIG-
URE 3-113.
FIGURE 3-113. Cylinder Block Height Measurement
(6) Install cylinder liner, refer to paragraph 3-32.3.
(7) Install cylinder bled< dowel pin.
b.
Measure cylinder liner bore as follows:
(1)
Using a cylinder indicator, measure cylinder liner bore at a point 0.59 to 0.75 in. (15 to 19 mm) from top
of liner where most wear is present. Take measurement in both the thrust and axial directions of the crank-
shaft.
3-166
