en 34
5 CONTROLS

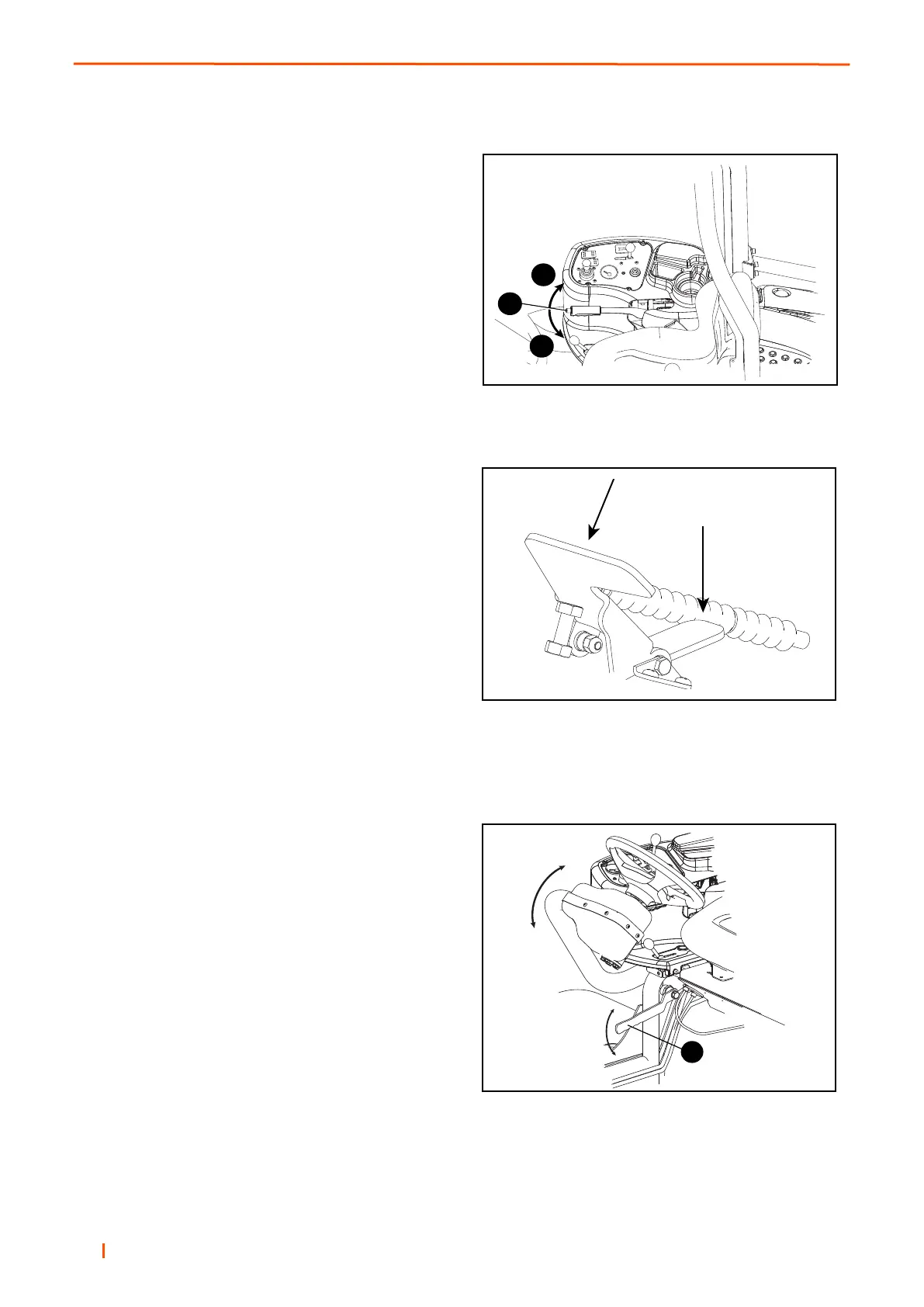

5.3 PARKING BRAKE _____________________________________________________
The Parking Brake can be engaged by depressing button
A and pulling the lever upwards to position B.
To release the parking brake depress button A and lower
lever to position C.
5.4 TRACTION PEDAL ____________________________________________________
The Direction/Speed Pedal controls speed and direction.
Depress front of pedal (A) to go forward, depress back of
pedal (B) to go backward. Increased movement of the
pedal will increase speed. To slow and stop the machine,
ease the pedal back to the neutral position. Proper braking
is provided by hydrostatic pressure.
NOTE
To reduce fatigue during normal forward operation, the
operator’s heel should rest on the floorboard next to the
pedal (not on the lower part of the pedal).
5.5 STEERING WHEEL____________________________________________________
The steering wheel is fitted to an adjustable arm to adjust
its height. Loosen the Locking Lever (A) to allow the steer-
ing wheel and control arm to be adjusted up or down.
Tighten the locking lever when steering wheel is at the
desired position.
A
