ADJUSTMENTS 8

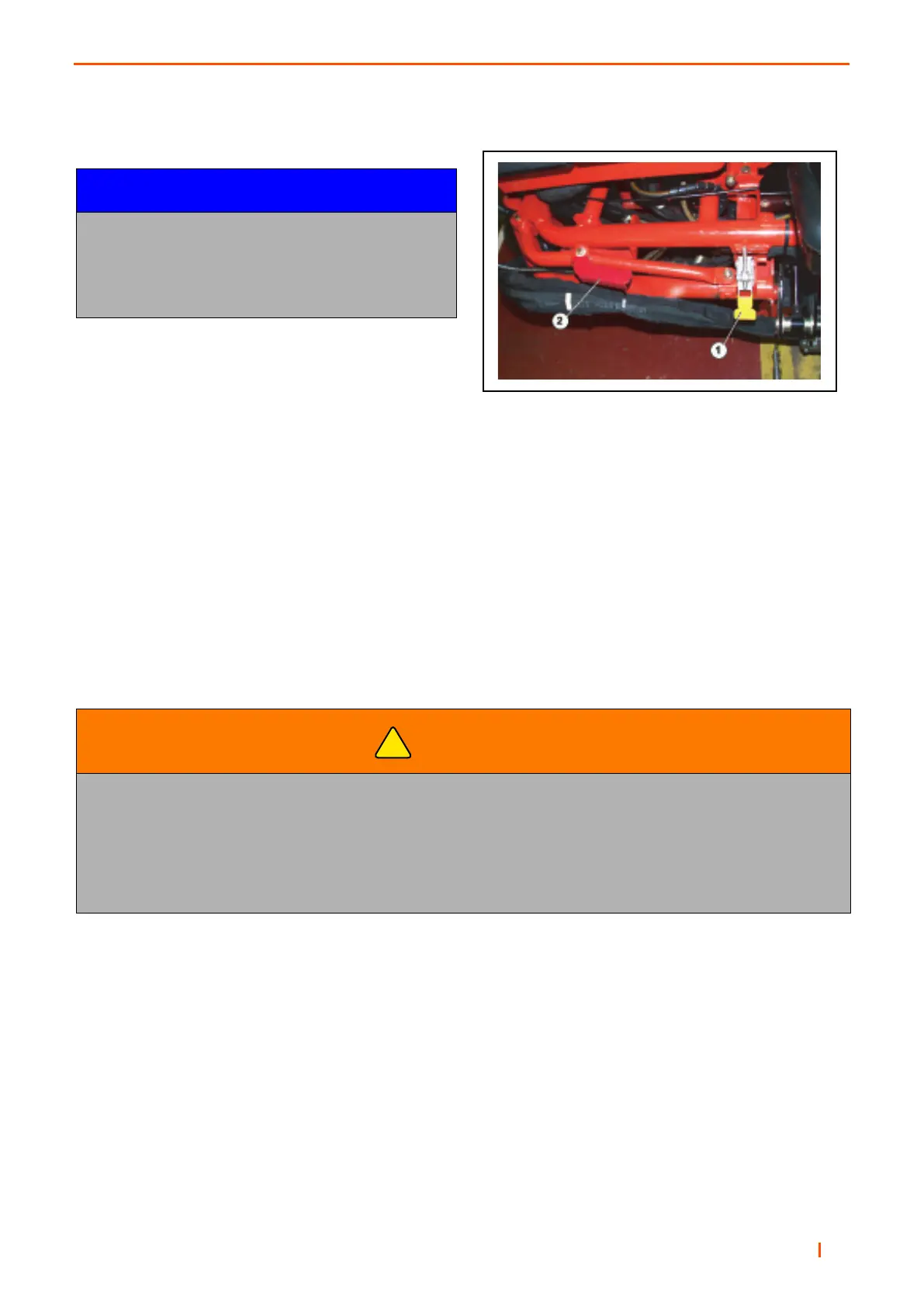

8.4 REAR SWING OUT ARM _______________________________________________
1.The grass catcher MUST BE removed before you
swing the arm out.
2.Release the latch (1).
3.Pull the handle (2) and swing the rear arm and cutting head out.
4.After you are properly seated in the operator's seat, restart the unit and lower the cutting heads.
5.Shut off the unit and remove the rear cutting head for service.
6.After you have completed your servicing, secure the cutting head to the rear arm.
7.After you are properly seated in the operator's seat, restart the unit and raise the cutting heads.
8.Shut off the unit and swing the rear arm back under the unit and secure the arm with the draw latch.
9.Install the grass catcher.
NOTICE
The rear swing out arm is to allow you easy access
to the rear cutting head. The cutting heads must be
in the raised position.
DO NOT swing the arm out with the cutting heads in
the lowered position.
WARNING
To avoid the possibility of serious injury, ALWAYS be properly seated in the operator's seat while
the engine is running.
NEVER attempt to drive the machine while the rear arm is not secured by the draw latch. Driving
the machine with the rear arm out, will result in damage to the machine and/or cause serious
injury or death of the operator and/or bystanders.
!
