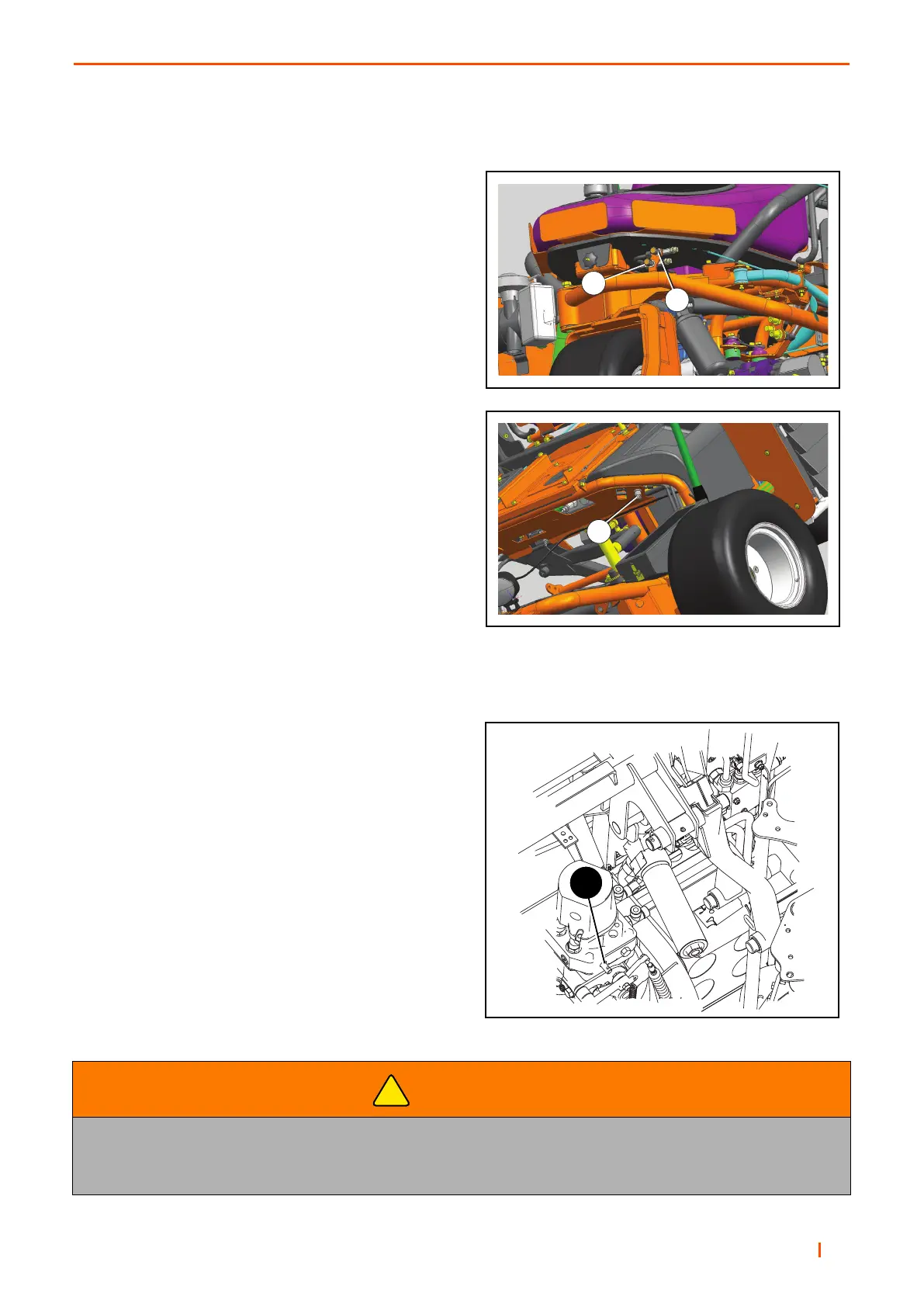

5.6 LIFT & LOWER RATE & SYNCHRONISATION CONTROL_____________________
The drop rate of the cutting units can be adjusted using
these controls.
Valves ‘A’ & ‘B’ are used to control the rate of lift and lower
for the centre cutting unit.
Valve ‘C’ is used to control the lift and lower rate for the
front cutting units.
Refer to section 6.7 for more detailed instructions on
setting and adjusting the soft drop.
5.7 FREE WHEEL ________________________________________________________
1. To push the machine, disengage the parking brake
2. Turn screw (A) located on the underside of the
transmission pump 180º counterclockwise. Set the
steering wheel so that the rear wheel is pointing
straight ahead.
3. After pushing the machine, return the screw (A) on
the pump to its operating position.
WARNING
The Free Wheel Facility Is For Recovery Purposes Only.
DO NOT tow the machine for more than a few metres, or allow the machine to free wheel
down slopes, even when unloading down ramps.
!
