6 OPERATION
6.15 BACKLAPPING PROCEDURE____________________________________________
Before starting the backlap procedure, release the Centre Unit and swing it out. The backlap valve is located
under the seat plate on the right hand side. It can be accessed from under the machine when the Centre Unit
is swung out
1. Apply an even coat of backlapping compound to the entire length of each blade of the reels.
2. While pressing the centre red button (A) on the reel valve pull yellow plunger (B) away from the valve.
3. Start the engine and set the throttle to low idle. Lower heads by operating the Joystick or paddle.
4. Slowly turn the restriction valve knob (C) clockwise until the desired reel rotation speed is attained. It should
be slow enough so that the reel will not throw off the backlapping compound as it spins.
5. Once all the blades on the reel are uniformly sharp, shut off the engine and push yellow plunger (B) back
towards the valve. Set the reel speed valve (C) to mow speed.

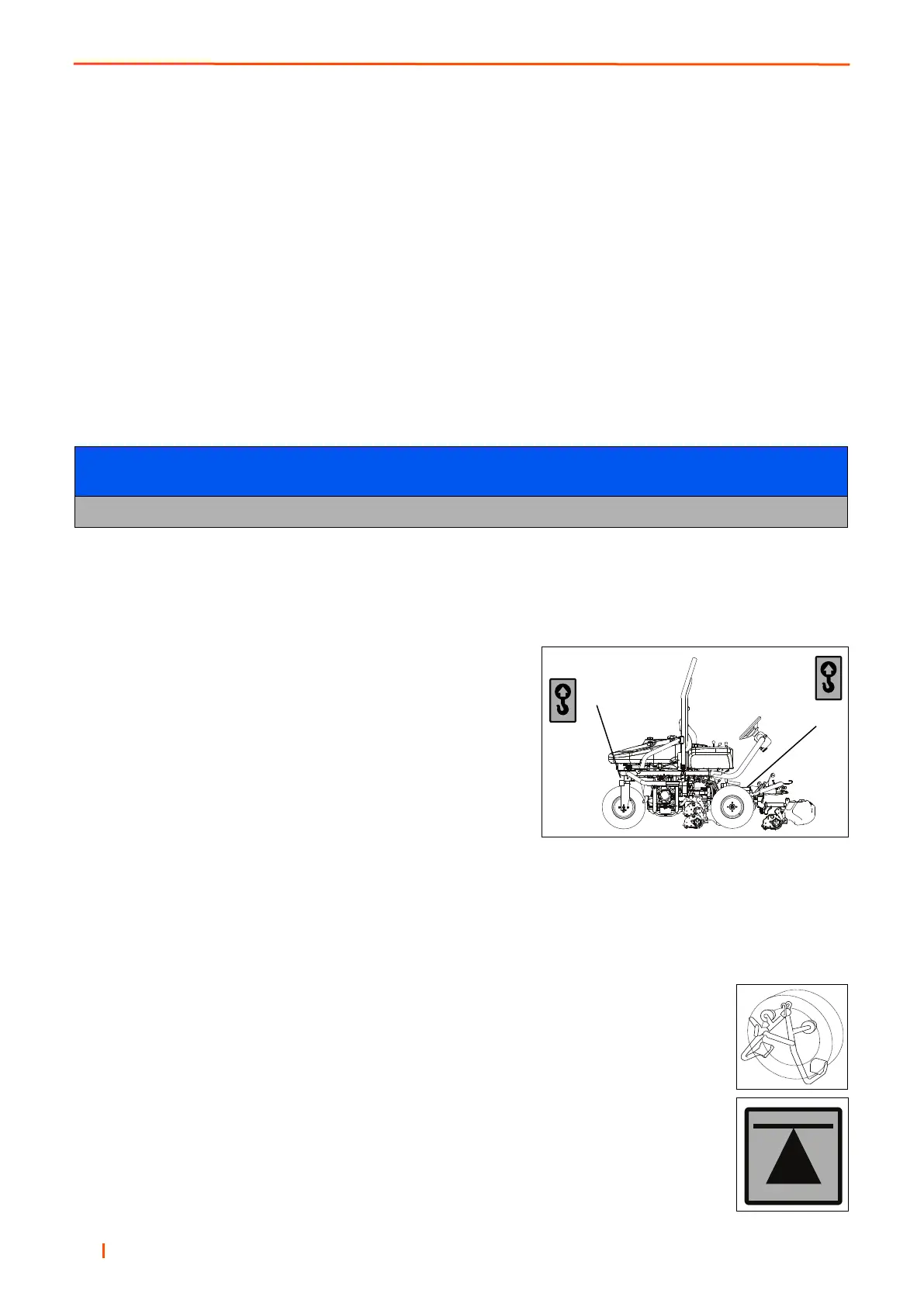

6.16 TRANSPORTING ON A TRAILER OR FLATBED _____________________________
The machine has hard-point tie-down loops front (A) and rear (B). Fasten the mower to the transport vehicle.
Make sure that all tie down straps are tight. Make sure that the
decks are locked in the transport position. Check the fuel and
hydraulic tank caps are tight. Make sure that no part of the mower
can fall during transport.
Always follow the given maximum transport load weight for the
vehicle used.
DO NOT carry more than the maximum weight shown on the
transport vehicle plate.
Always read the safety and operation manual of the transport vehicle before you load.
6.17 SLINGING AND JACKING THE MACHINE __________________________________
Slinging
When slinging the machine use the tie down loops front and rear.
Jacking
The machine has three jacking points, one at the rear chassis engine mount and two on
the front chassis wheel motor mounting.
NOTICE
To ensure proper reel rotation, make sure valve (C) is completely closed.
