8 ADJUSTMENTS
8.5 LEVELLING LINKAGE FOR THE FRONT CUTTING HEADS ___________________
1.With the unit on a level surface (recommend concrete
surface), place cardboard underneath all three of the
cutting heads.
2.An additional person is needed to stand 3 meters in front of the unit to check on how level the front heads are
when lowering. Lower the cutting heads and ensure the entire width of the front heads are parallel with the level
surface as the heads touch the cardboard.
3.If they do not touch evenly, make an adjustment using the adjusting connector. Repeat procedure as needed
until the two front heads touch evenly on the level surface.
NOTICE

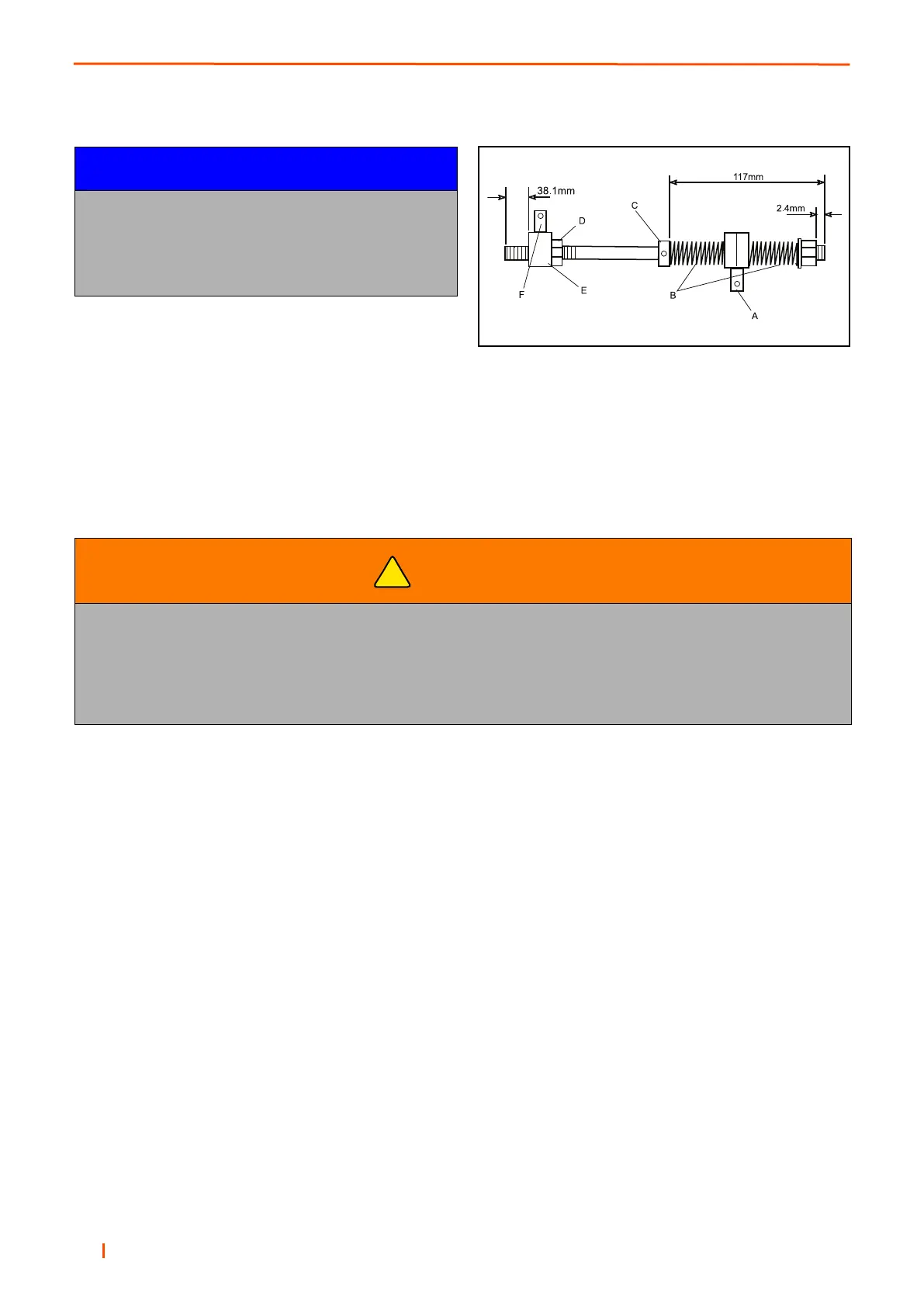

The dimensions in the figure are factory preset and
the leveling linkage should not need
adjusting. After some time the linkage may
require some adjusting. If it is required, only
make adjustments on the adjusting connector (E).
WARNING
This procedure must be performed as specified and only by properly trained service personnel.
During this entire procedure the reel enable switch must be in the off position. Turning on the
reel enable switch will result in damage to the unit and/or serious personal injury or death to you
the operator or bystanders.
!
