Male Adapters - BSP x NPT (USA only)
816/00439 3/8 in. x 1/4 in.
816/00440 1/2 in. x 1/4 in.
816/15007 3/8 in. x 3/8 in.
816/15008 1/2 in. x 3/8 in.
Hand Pump Equipment
892/00223 Hand Pump
892/00137 Micro-bore Hose 1/4 in BSP x 3 metres
892/00274 Adapter 1/4 in M BSP x 3/8 in M BSP Taper
892/00262 1/4 in M BSP x 1/4 in F BSP x Test Point
892/00706 Test Probe
892/00278 Gauge 0 - 40 bar (0 - 600 lbf/in
2
)
892/00279 Gauge 0 - 400 bar (0 - 6000 lbf/in
2
)
Bonded Washers
1406/0011 1/4 in. BSP
1406/0018 1/2 in. BSP
1406/0014 5/8 in. BSP
1406/0021 3/4 in. BSP
1406/0029 1.1/4 in. BSP
S188140
S193850
4 - 7
Section 1 General Information
9803/3280
Section 1
4 - 7
Issue 1

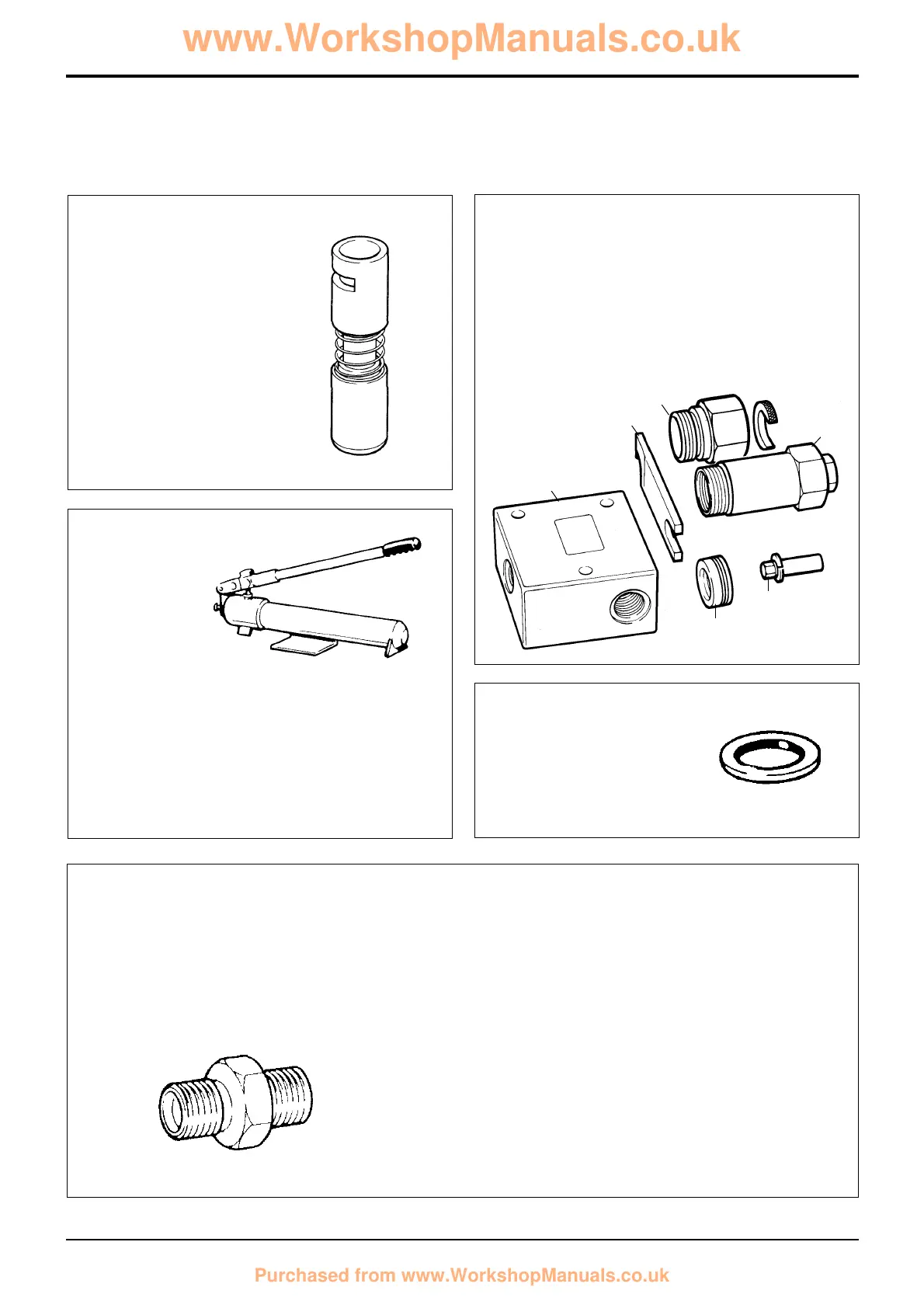

Service Tools (cont'd)
Section E - Hydraulics
892/00881 Valve Spool
Seal Fitting Tool
Components for Valve Block A.R.V. Testing
For 4CX Variable Flow machines use 25/201103
892/00309 A.R.V. Pressure Test Kit
1 : 892/00340 Test Block Body
2 : 892/00341 Setting Body
3 : 993/68300 Adjusting Pin
4 : 892/00343 Spanner
5 : 892/00345 Anti-cavitation Lock Out Bung
6 892/00335 A.R.V. Cartridge Removal Tool
Male Adapters - BSP x BSP
1606/0003 3/8 in. x 1/4 in.
1604/0003 3/8 in. x 3/8 in.
892/00071 3/8 in. x 3/8 in. taper
1606/0004 1/2 in. x 1/4 in.
1606/0007 1/2 in. x 3/8 in.
1604/0004 1/2 in. x 1/2 in.
1606/0017 5/8 in. x 1/2 in.
1606/0008 3/4 in. x 3/8 in.
1606/0009 3/4 in. x 1/2 in.
1604/0006 3/4 in. x 3/4 in.
1606/0012 3/4 in. x 1 in.
1606/0014 3/4 in. x 1.1/4 in.
1606/0015 1 in. x 1.1/4 in.
S196700
S261220
S193860
1
2
6
4
5
3
