! WARNING
The air conditioning system is a closed loop system and
contains pressurised refrigerant. No part of the system
should be disconnected until the system has been
discharged by a refrigeration engineer or a suitably
trained person. You can be severely frostbitten or injured
by escaping refrigerant.
4-3-4-1/2
Adjusting the Compressor Drive Belt
! WARNING
Make sure the engine cannot be started. Disconnect the
battery before doing this job.
2-3-3-5
1 Park the machine on firm level ground, engage the
parking brake and set the transmission to neutral. Raise
and block the loader arms. Lower the backhoe to the
ground and stop the engine.
2 Loosen bolts A, B and C. Position the compressor so
that there is 10 mm (3/8 in) slack at point X.
3 Tighten bolt A, then bolts B and C.
Section 3 Routine Maintenance
9803/3280
Section 3
26 - 1
Issue 1
Air Conditioning (if fitted)

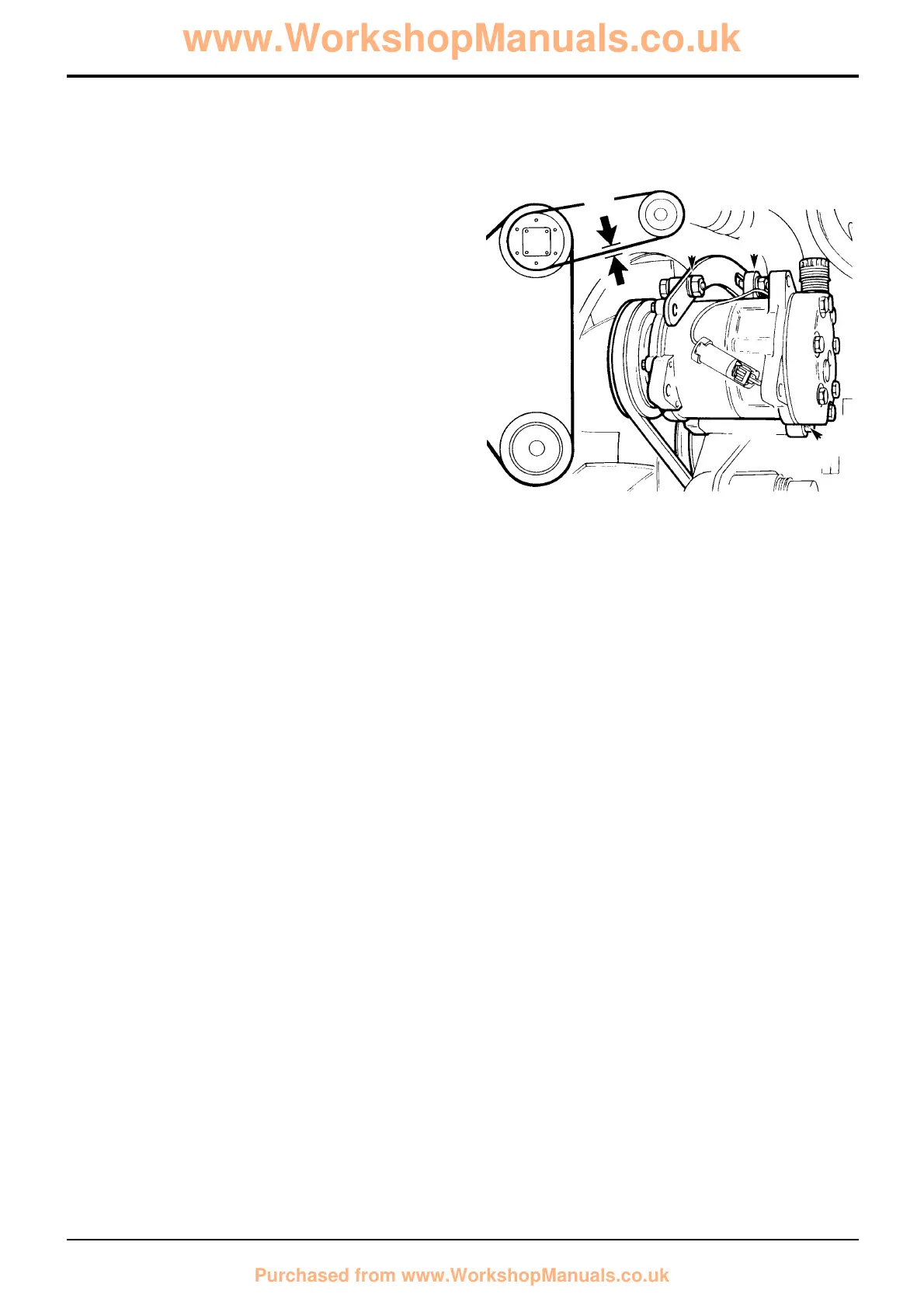

S209393
B
C
A
X
