jcb 214e User Manual

50 - 3
Section G Brakes
9803/3280
Section G
50 - 3
Issue 1
Parking Brake
6
7
8
15
13
13
13
12
13
12
10
9
1
11
4
3
5
2
14
228362

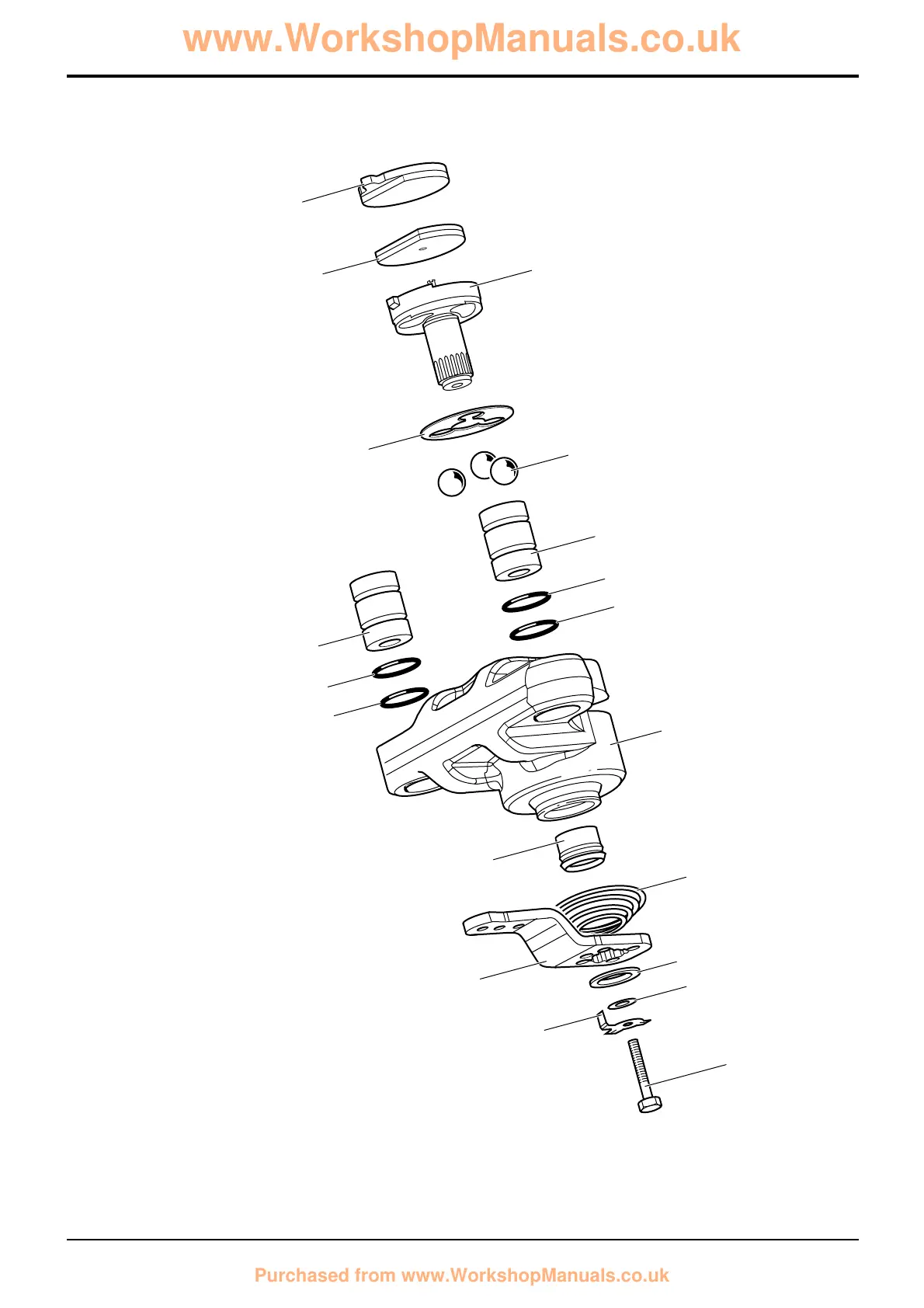

Component Listing:
1 Carrier Side Pad
2 Lever Side Pad
3 Bolt
4 Anti-rotation Clip
5 Washer
6 Washer
7 Lever
8 Spring
9 Rotor
10 Ball Spacer
11 Ball Bearings
12 Mounting Bush
13 O-ring
14 Shaft Seal
15 Housing
