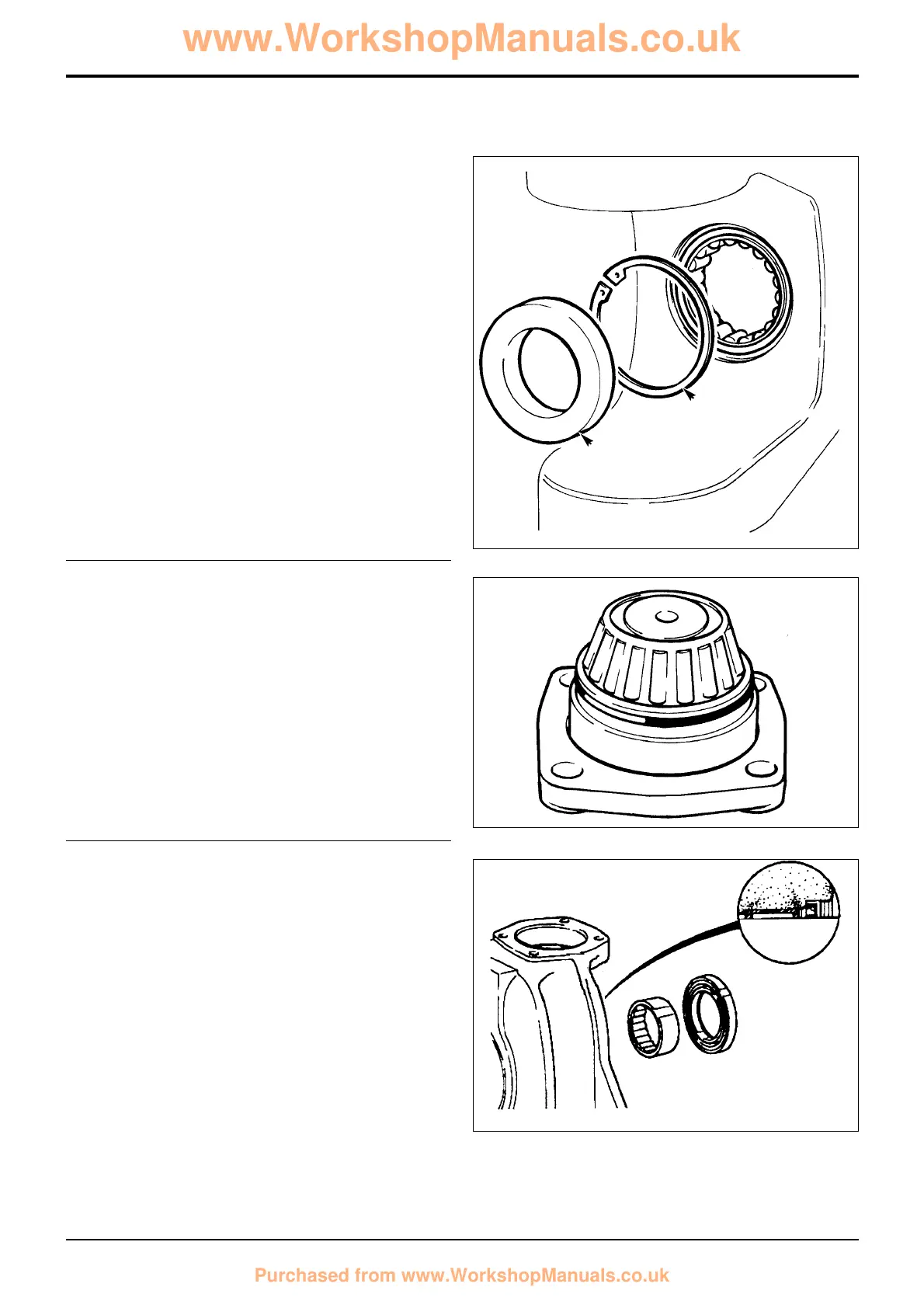

1 Tap drive shaft inner bearing into position and secure
with circlip K.
2 Fit new oil seal J. Pack grease between lips of seal.
3 Fit drive shaft, taking care to locate inner end into
splines of differential gears.
4 Press new trunnion oil seal into position followed by the
bearing. Grease bearing and oil seal before fitting to
axle.
5 Fit driveshaft needle roller bearing to the hub carrier.
Pack the cavity between the oil seal lips with grease
and then fit the seal.
81 - 6
Section F Transmission
9803/3280
Section F
81 - 6
Issue 1
Front Axle - SD55, SD70
Hub and Driveshaft - Assembly
S258270
255990
K
J
S161460
