JCM TBV Series User Manual

Part No. 960-100941R_Rev. A © 2016 JCM American Corporation
11
October, 2016 JCM® Training Overview TBV Transaction Based Validator
FIRMWARE DOWNLOAD PROCEDURE
To download Firmware to the TBV Unit, proceed as follows:
1. Click on the Service Mode drop down menu, then select Download.
The
JCM Downloader Suite Edition screen will appear (Figure 5).
2. Click the “
Browse” Screen Button and select the file to be downloaded.
Then click the
Open Screen button that appears.
3. The JCM Downloader Suite Edition screen will reappear (Figure 5). Click the
“
Download” Screen Button to begin downloading the Firmware.
4. Verify the
Host CRC (Cyclic Redundancy Check) (Figure 5 a) and the Device
CRC (Figure 5 b) Checksum values are identical.
5. Disconnect the USB Type A-to-Mini B cable from the PC’s USB Port and the
TBV Unit.
6. Reset electrical power on the TBV Unit.
This completes the Firmware Download Procedure.
NOTE: A BLUE-colored Barograph will display the Download progression.
When downloading is complete, the following message is displayed (Figure 5):
Download Success. Reset Done. Waiting for USB Cable Disconnection.
a
b

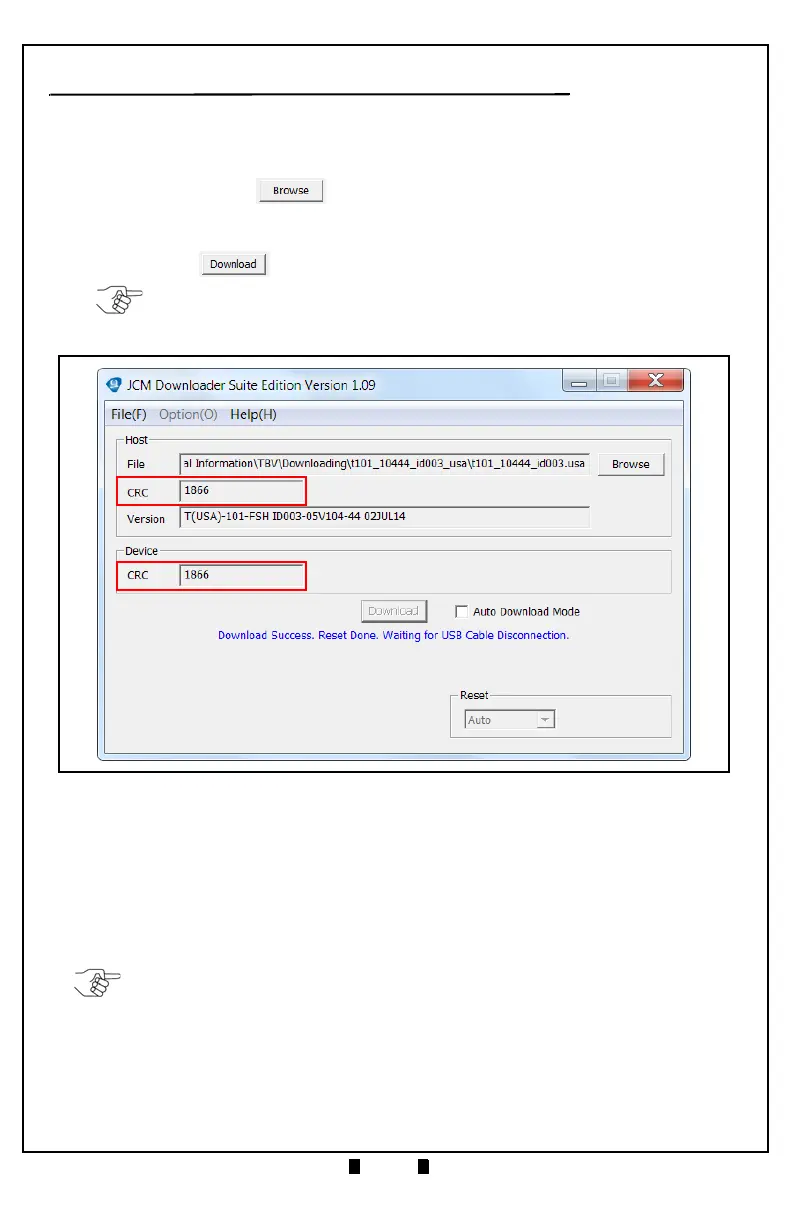

Figure 5 JCM Downloader Suite Edition Main Screen
NOTE: If the TBV Software becomes corrupted or has not been installed (e.g.,
when changing the CPU Board), set Forced Download Mode by turning DS1 or
DS3 DIP Switches #1, #6, #7 and #8 to ON. Then follow the Firmware Download
Procedure described above.
