JCM TBV Series User Manual

Part No. 960-100941R_Rev. A © 2016 JCM American Corporation
12
October, 2016 JCM® Training Overview TBV Transaction Based Validator
CALIBRATION
Calibration of the TBV Unit needs to be performed whenever the following
conditions occur:
• When removing and replacing the CPU Circuit Board in the TBV Unit;
• When removing or replacing any Sensor Circuit Board;
• After cleaning dirt and debris from the TBV Unit; and/or
• Whenever the Banknote Acceptance Rate has degraded.
U SING THE C ALIBRATION P ROGRAM
This section describes how to use the Calibration Program to perform the fol-
lowing functions:
• Validation Sensor Calibration
• Positioning Sensor Calibration
Validation Sensor Calibration
To perform the TBV Validation Sensor Calibration procedure:
1. Remove the TBV Transport Unit from the Cash Box Frame.
2. Set DIP Switch #8 on DS1 (or DS3) to ON.
3. Apply electrical power to the TBV Unit.
4. Connect the Type A-to-Mini B cable between the PC’s USB Port and the USB
Port on the front of the TBV Unit.
5. Launch the JCM Tool Suite Standard Edition Software Application.
6. Click the
Service Mode drop down menu, then select “Sensor Adjustment.”
The TBV Calibration Tool [Maintenance] screen will be displayed, as
shown in Figure 6.
NOTE: Reference papers are specified for use when calibrating the TBV-100 and
TBV-101 Units. Refer to Table 21 on page 38 for the correct Reference Papers to
be used.
NOTE: Calibration procedures can be performed individually.
NOTE: The TBV Unit Front Panel LED will flash WHITE.
a
b

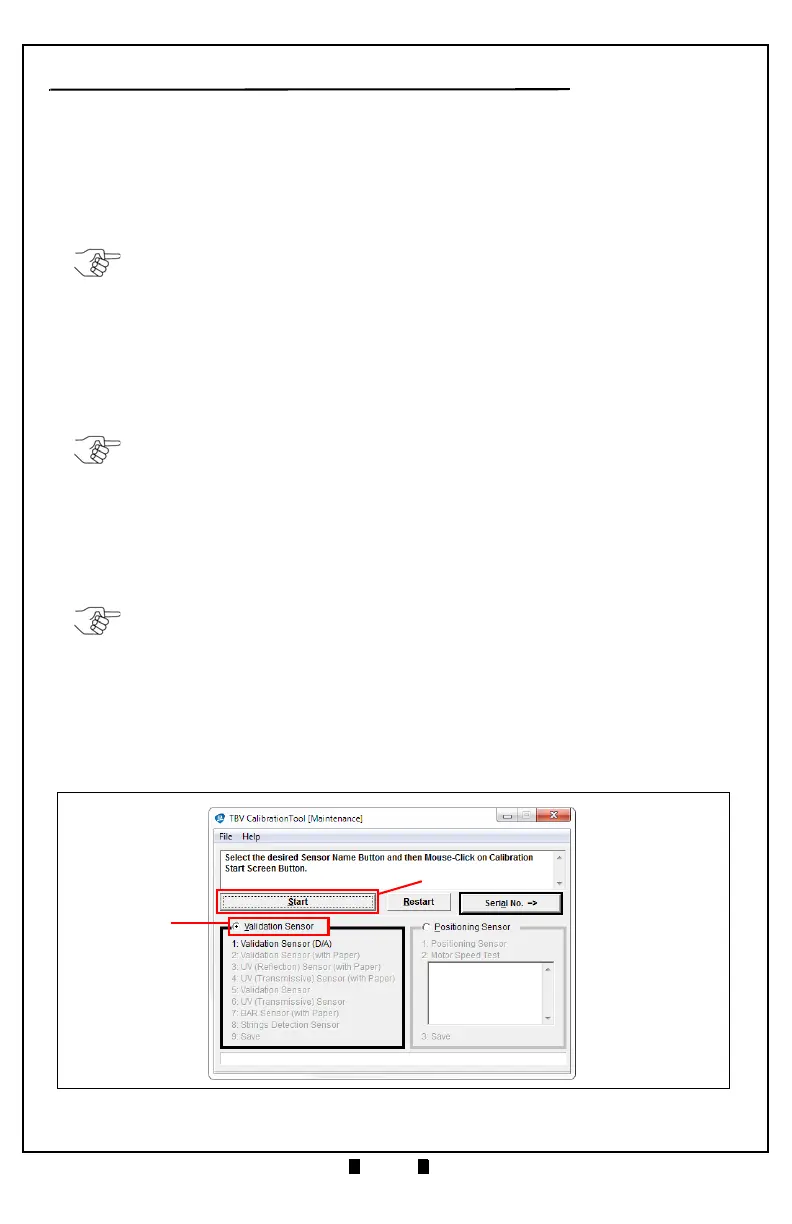

Figure 6 Validation Sensor Calibration-TBV Calibration Tool [Maintenance]
