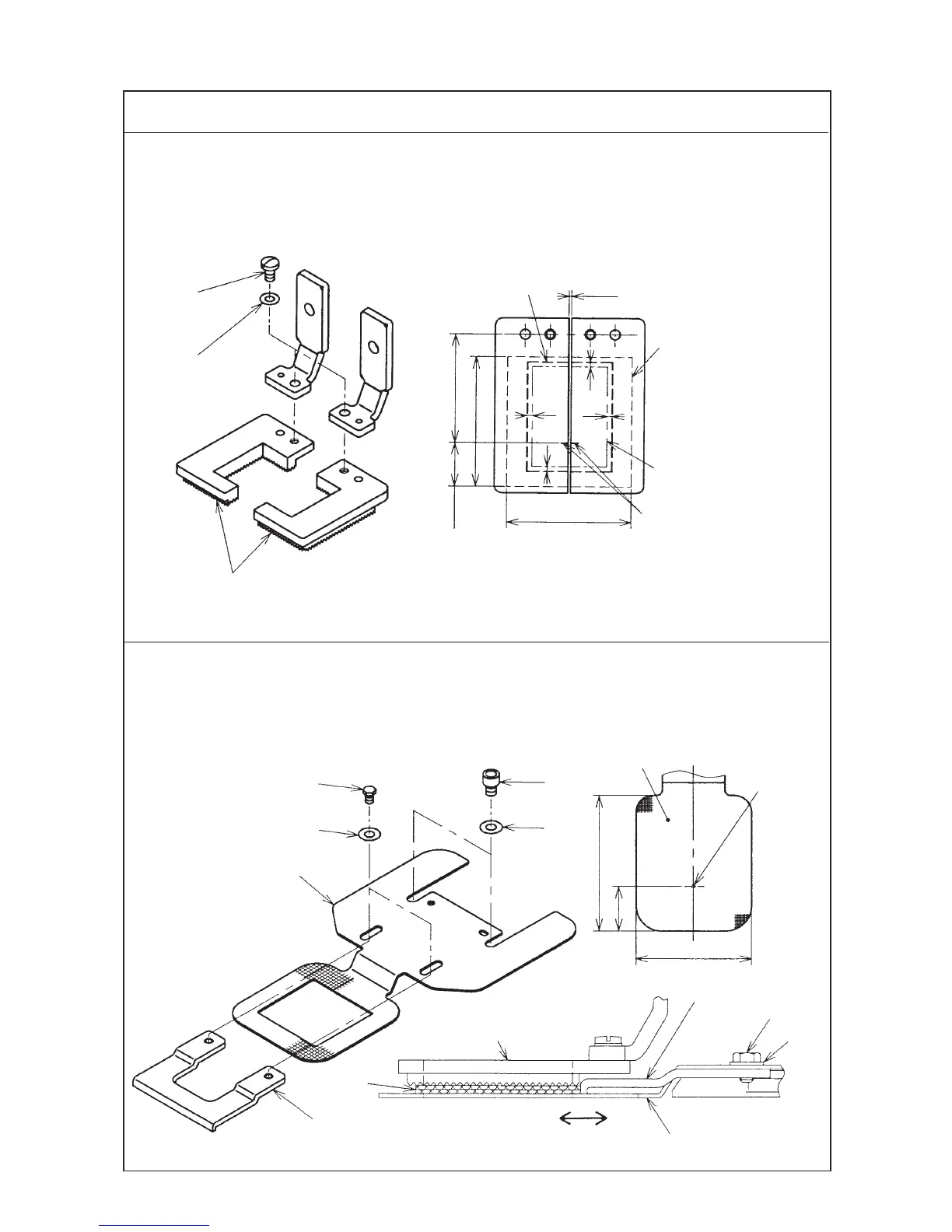

1) How to use the feeding frame blank for belt
◎ By using the feeding frame blank for belt of the optional part, the sewing product can be pressed more
securely than the ordinary blank material.
2) How to use the feed plate blank and the feed plate guide for belt
◎ In addition to the feeding frame for belt of the optional part, by jointly using the feed plate blank for belt
and the feed plate guide for belt, the sewing product can be pressed further securely.
79
26
68
Standard Adjustment
(5) Feeding frame components for belt (LK-1941)
43.5
17.5
52
2
2
50
2
2
1
Feeding frame for belt
Processing line
Knurl on
rear face
Periphery of
stitching pattern
Engraved line
(Position of feed origin)
Feed plate for belt
Feed plate guide
Sewing
product
Feeding frame
Knurl on
feed plate
Engraved dot
on rear face
(Position of
feed origin)
Feed plate guide
Feed plate
1
2
1
2
3
4
3
4
