Item
Input signal check
Origin retrieval and feeding
operation check
Continuous operation (Do not use
for sewing.)
Number of revolutions of main shaft
check
Solenoid, solenoid valve, status
output and hot wire output
Hot wire output (For test and
valuation)
Description
State of input of the switch and the sensor will be indicated
by 9 LEDs.
For origin adjustment, JOG movement and origin sensor will
be indicated.
Initial setting of the operation conditions will be performed,
and the mode will move to the continuous aging mode.
Output of the specified number of revolutions will be made
and the actual number of revolutions will be indicated.
Solenoid, solenoid valve, status output and hot wire output
will be checked.
Hot wire output time can be set longer than that usually used.
(This is a mode to tentatively heat the wire for a long time.
Hot wire plate may be fused. Normally, use CP-5 mode.)
6. TEST MODE
• Purpose of the test mode
This mode is set to facilitate the electrical check for the maintenance work.
• Items of the test mode

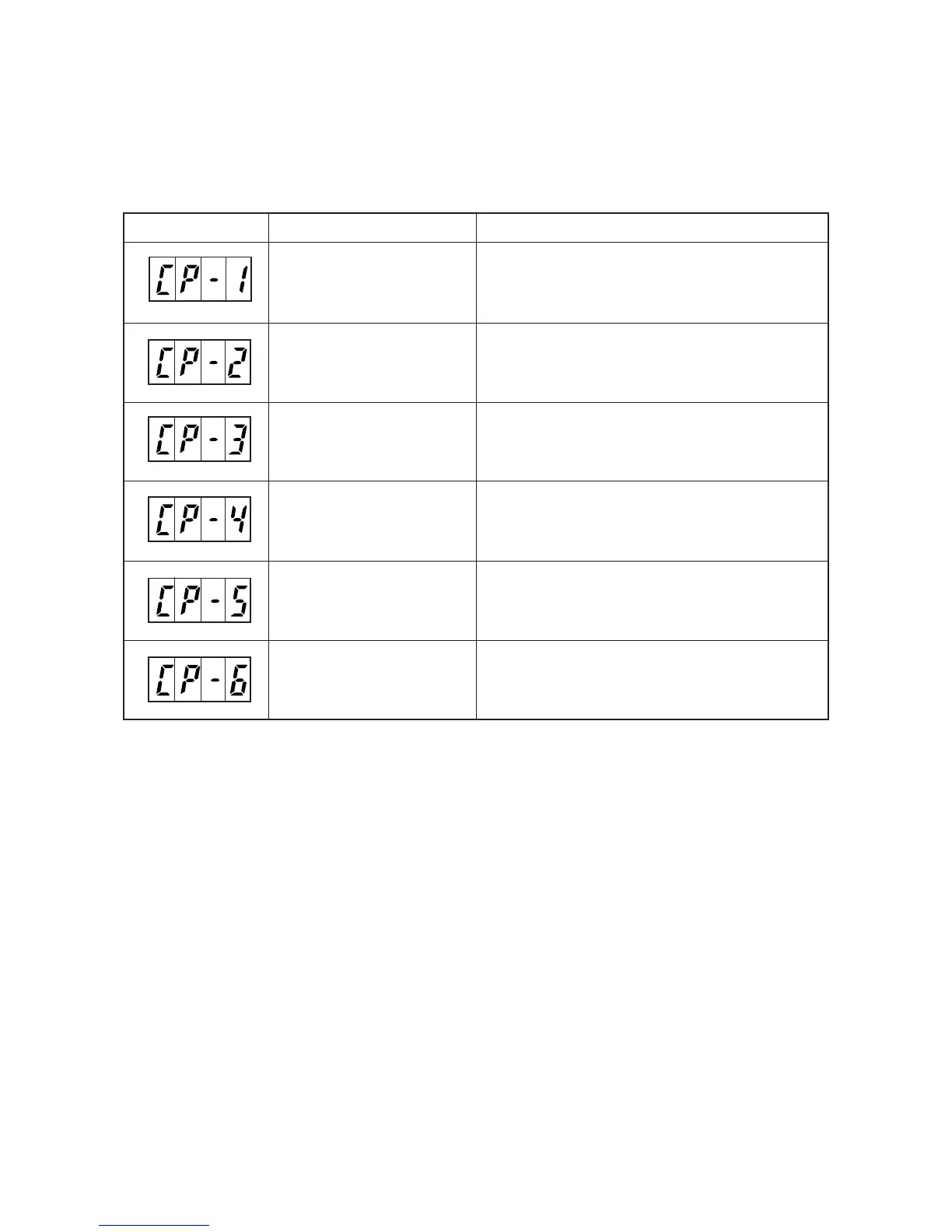

Test mode can check the items as shown in the list below.
Indication No.
To Next Page
