−33 −
Standard Adjustment

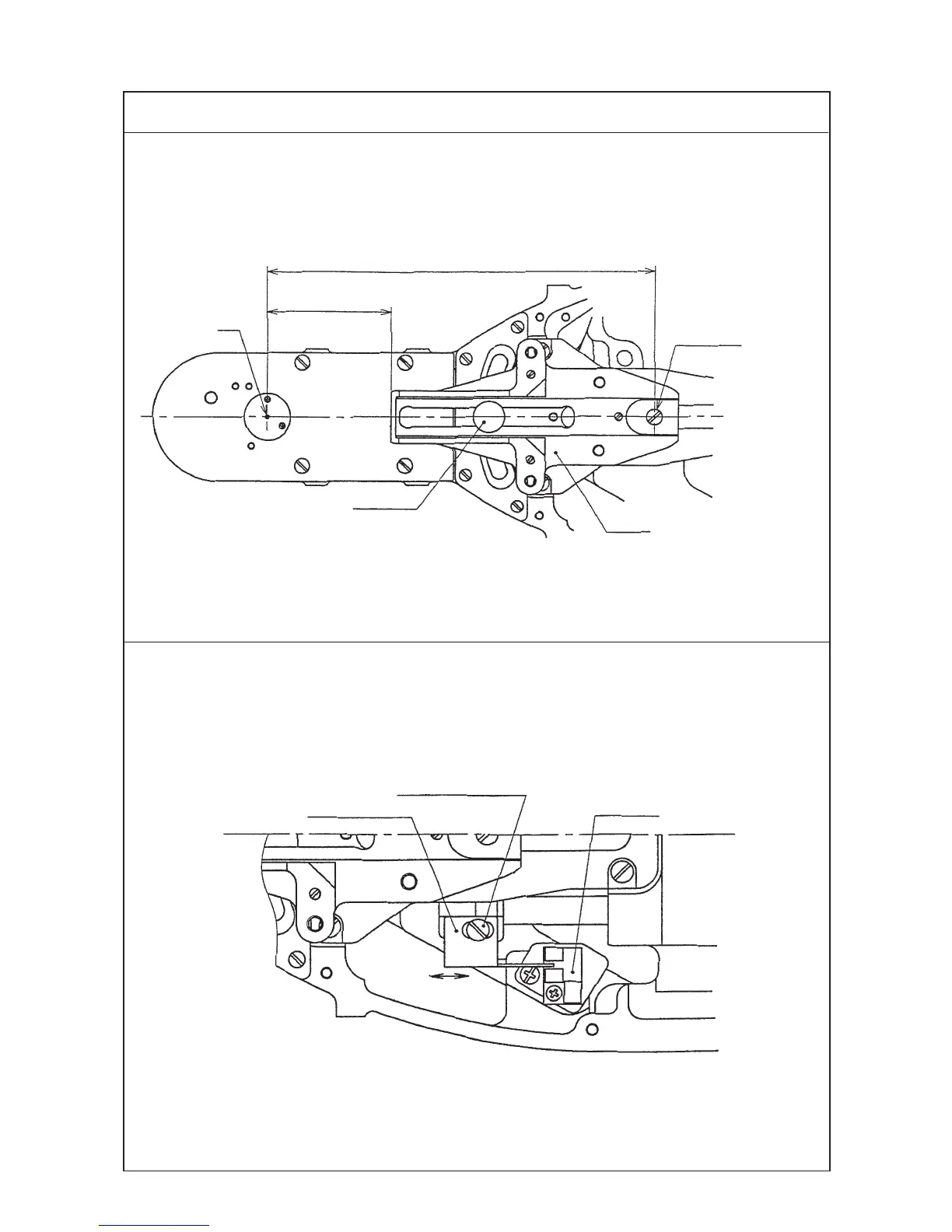

(7) Adjusting the sensor components
195
(63)
Needle hole
X feed support shaft
Y feed support shaft
Feed plate
2 Y sensor slit
1 Sensor slit setscrew
3 Y sensor
1) Mechanical origin
2) Adjusting the Y origin sensor
