− 66 −
② CP-2 (Origin retrieval)
For origin adjustment, JOG movement and state of origin sensor will be indicated.
＊ Set the presser lifting control to ineffective. (Presser lifter is kept lowered.)
＊ Except for upper position (or upper dead point), error “E 3” will be indicated, and the origin retrieval will
be not executed even when the pedal switch is depressed. At this time, return the position to the upper
position using the hand pulley.
Start switch
FORWARD
BACK
or
SELECT

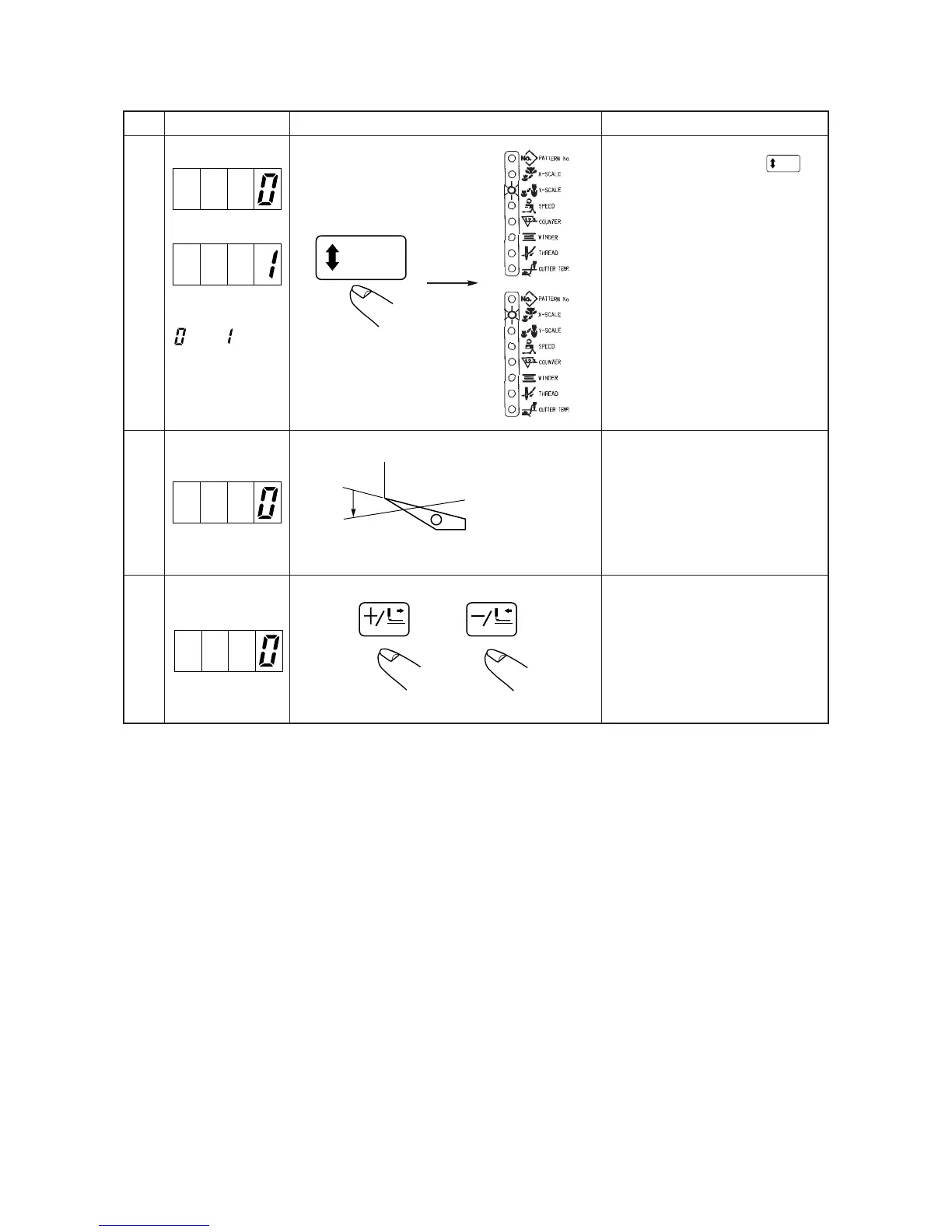

Step Indicating section Checking measure Explanation
or
“ ” or “ ” will be
indicated according to
the state of the sensor.
1
2
3
JOG movement of the X/Y axes can be
changed by pressing down the
SELECT
key.
Depress the pedal switch, and the sensor
will execute the origin retrieval.
[JOG movement]
Makes the selected axis move in the
direction of +/- one by one pulse.
To Next Page
