4. STITCHING PATTERN
(1) Service Pattern
• Five kinds of service patterns (Nos. 51, 52, 53, 54 and 60) are registered in LK-1941/42 beforehand.
• Service patterns are registered in SYSTEM_ROM (005 *) of 1.
• Patterns in SYSTEM ROM are fixed data and cannot be edited with the input devices (PGM-7 and
PGM-20).
(2) Patterns for users
1) ROM for patterns for users (2 DATA_ROM)
• No pattern is registered. Create and register the pattern with the input device for use.
• (The data created with PGM-7 is registered in this ROM as well.)
2) Specifications
• Available pattern Nos. ... 1 to 99
• Available number of patterns ... 64 (excluding service patterns)
• Max. number of stitches ... 10,000 stitches
• For the pattern No., the number of DATA_ROM is preceded.
[When the number (51, 52, 53, 54, or 60) is overlapped, the pattern in the DATA ROM is read out.]
3) Input device
• PGM-7 : Main body input device exclusively used for LK-1941/42
• PGM -20 : Pattern input device
＊ Settings when creating patterns of LK-1941/42 are as follows :
(For the details, see the Instruction Manual for the input device.)
• Model setting ... LK-1900
• Max. sewing area ... X (lateral) direction 100 mm x Y (longitudinal) 60 mm

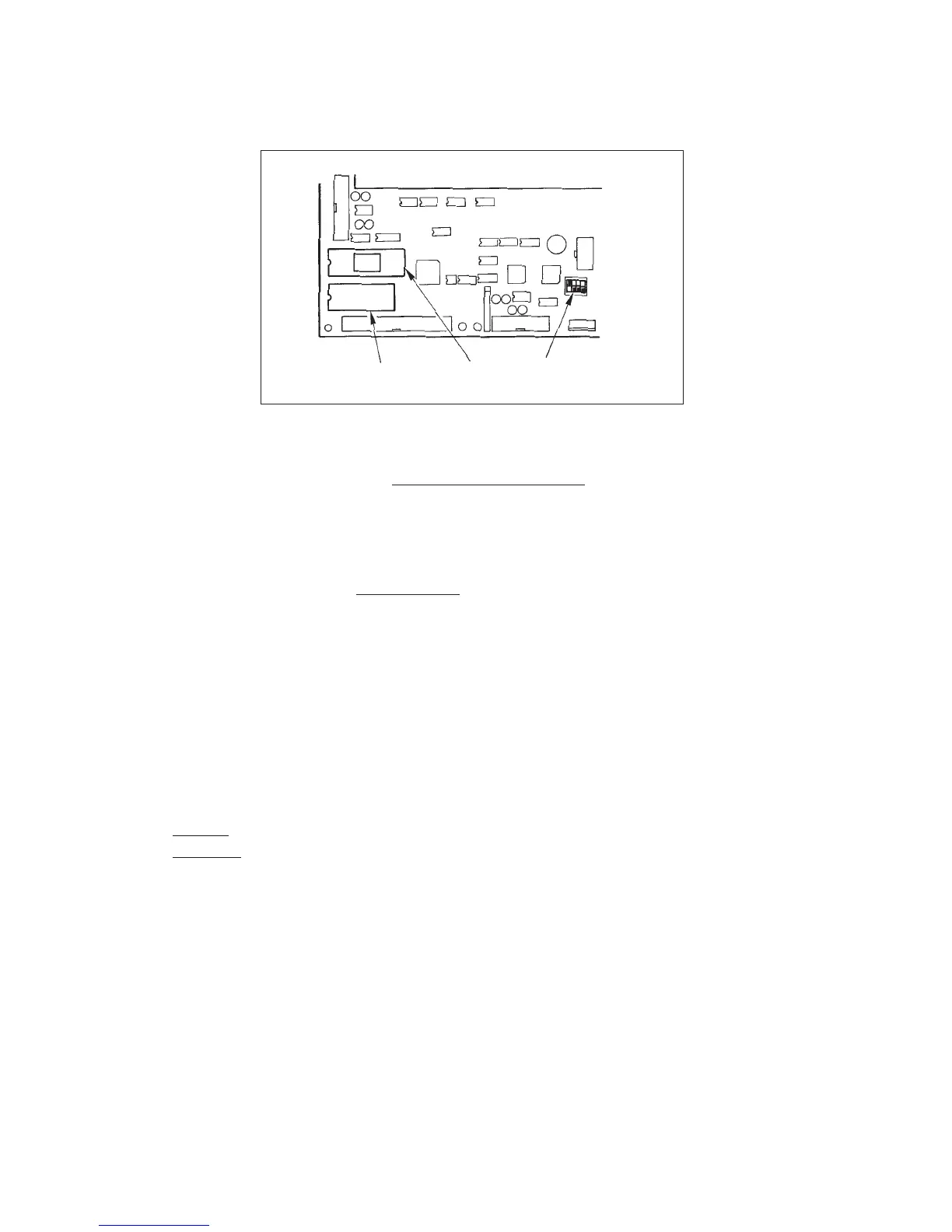

DATA ROM SYSTEM ROM
DIP SWITCH
12
